Wilwood Front Dynapro 6 Brake Kit for Fiat 500 (2012–2015), 12.19-Inch Plain Rotors, Black Calipers & Flex Lines

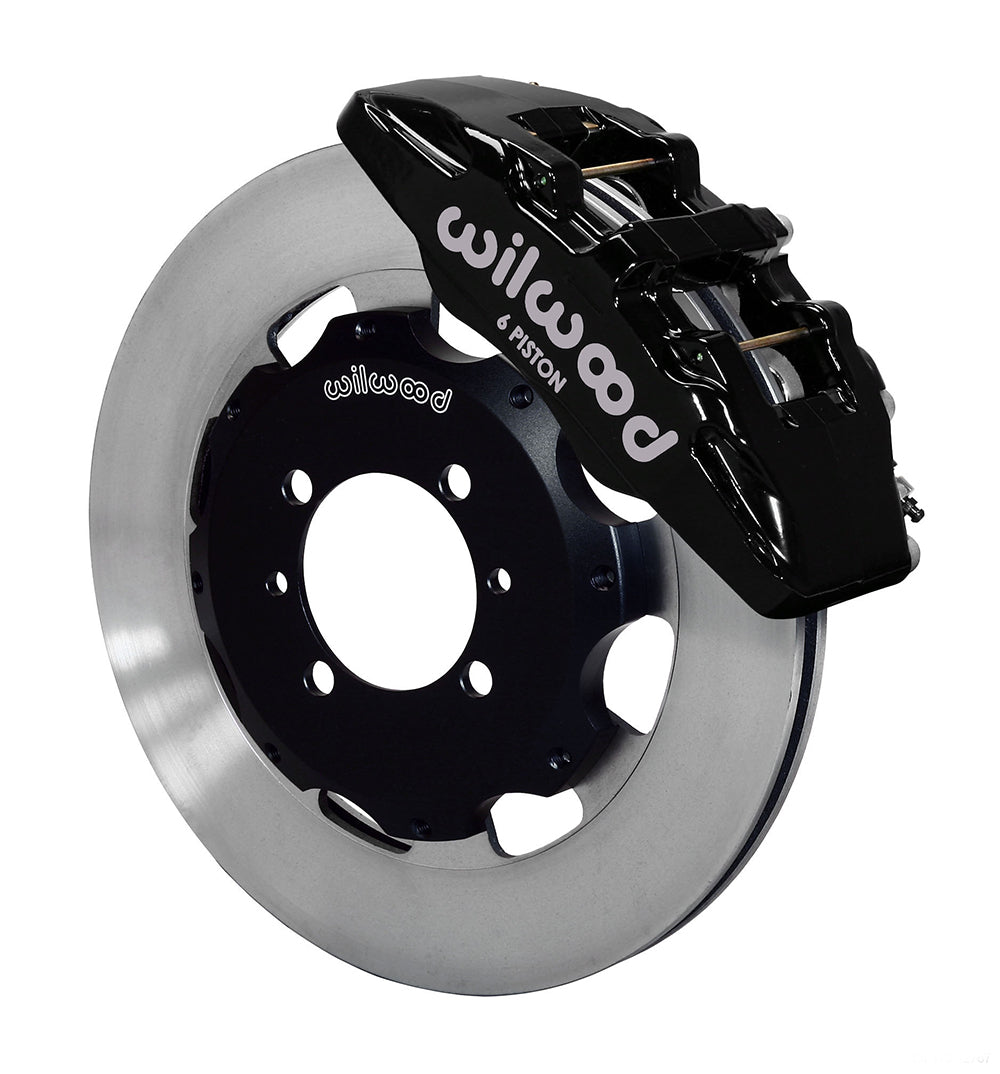

This Wilwood front conversion supplies black six-piston Dynapro calipers, plain 12.19-inch vented rotors and application-specific hydraulic flex lines for the listed Fiat 500 configurations. Separate hats retain the matching original hubs and four-lug mounting arrangement. The individual trim and year entries remain necessary when comparing the installed brakes, including Abarth and other listed variants. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12767
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.38, 1.00, 1.00 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel bolt circles: 4 x 3.86 inches.

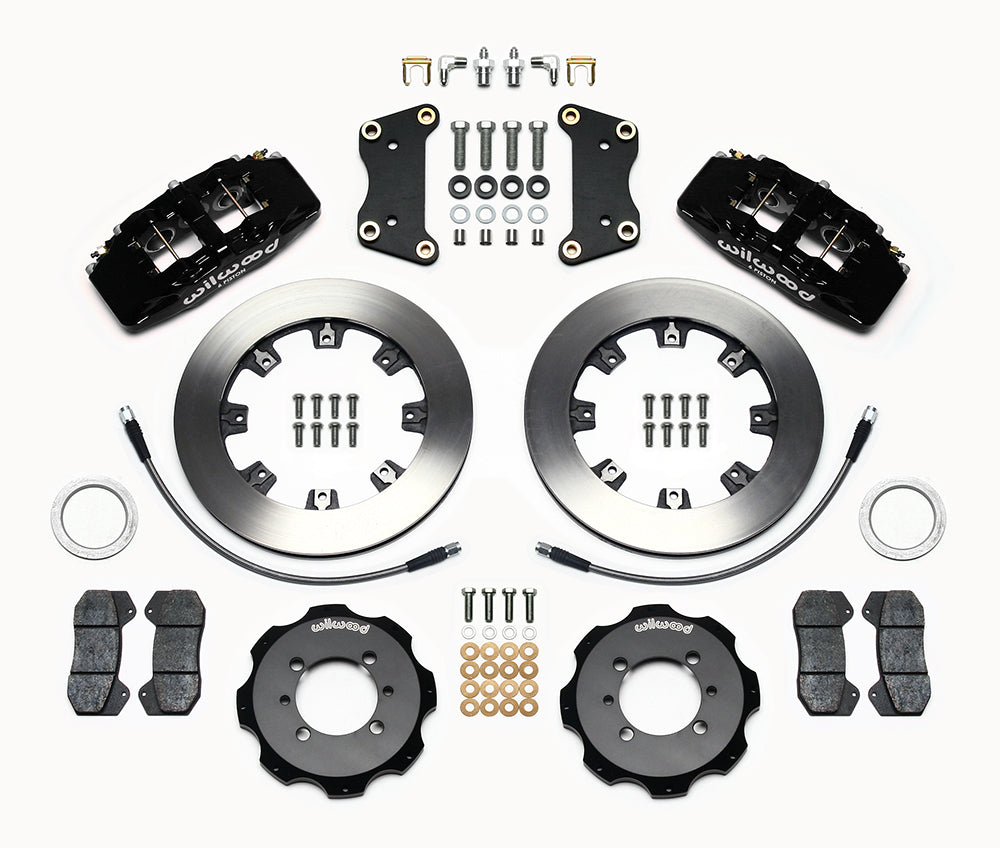

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic flex lines and connection hardware included for the specified application.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the actual hub, stud pattern and spindle with DS939 before ordering. Confirm that the separate hats seat correctly on the original register and that the supplied hoses clear the wheel and suspension through steering lock. The 15-inch wheel screening figure is conditional on spoke depth and barrel shape. Check rotor runout, caliper alignment and front/rear hydraulic balance as part of the complete brake conversion.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
