Wilwood Red AERO6 Front Carbon-Ceramic Conversion, Ford Mustang (2005–2014), 14-Inch Rotors

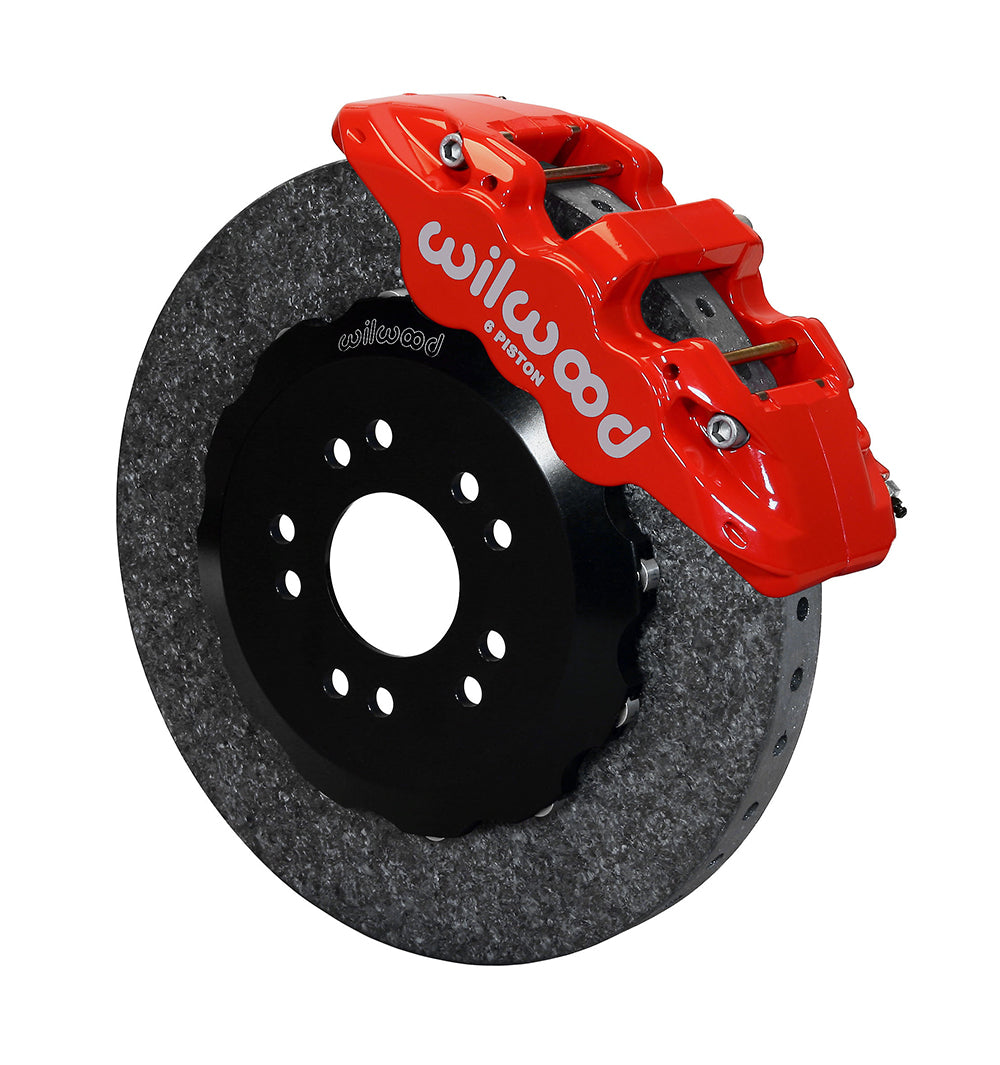

Red six-piston AERO6 calipers and 14-inch C/SiC rotors form this Wilwood carbon-ceramic front conversion for the stated Mustang range. The rings mount dynamically on separate hats with the matching PCM pads supplied. The package changes the complete rotor/caliper combination, so its material, mounting and spindle-preparation requirements should not be treated as interchangeable with an iron-rotor kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12756-CSICR
• Type: AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit
• Calipers: AERO6; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: PCM.
• Rotors: 14.00-inch diameter × 1.25-inch thickness; Plain Face; C/SiC; Plain surface; 24 vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

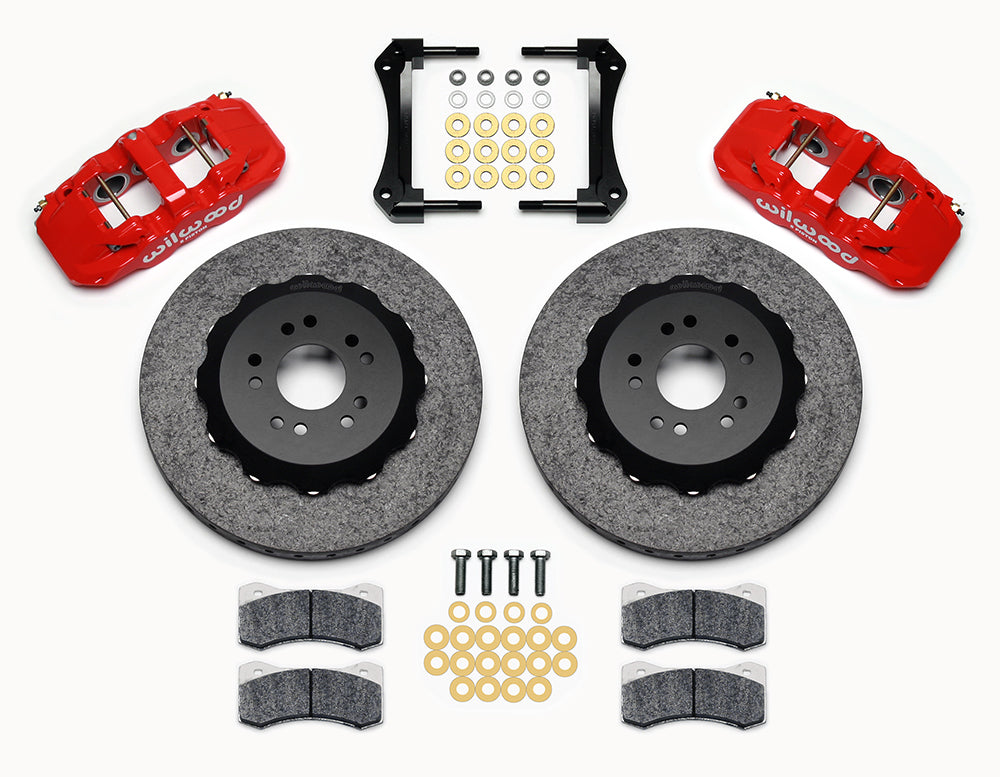

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Read the specific Mustang brake-package entry before comparing DS933 with the installed spindle. The required machining must be completed by a qualified person before bracket assembly. Check hub registration, stud pattern and full wheel-to-caliper clearance, including spokes. Suitable hydraulic hoses are separate, and the retained master-cylinder/rear-brake arrangement must be evaluated with the completed conversion before following the manufacturer's bedding and test procedure.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
