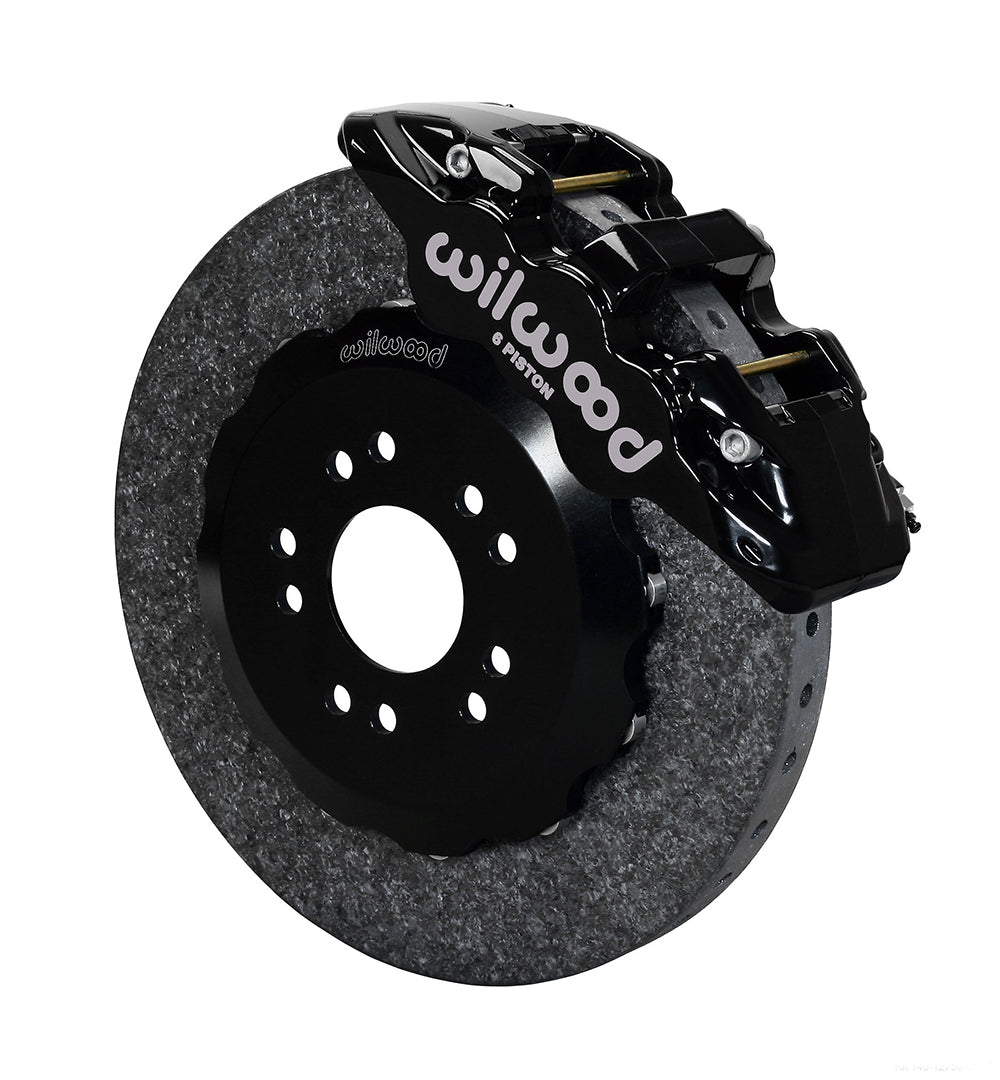

Wilwood Front AERO6 Carbon-Ceramic Brake Kit for Ford Mustang (2005–2014), 14-Inch Rotors, Black Calipers

This Wilwood front package combines black AERO6 calipers with 14-inch carbon-ceramic rotors for the listed Mustang applications. The C/SiC rings use dynamic bobbin-mount hats and the selected PCM pad compound. It is a complete matched conversion requiring the specified spindle preparation, with rotor material and pad compatibility distinguished from the conventional iron-ring packages. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12756-CSIC
• Type: AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit
• Calipers: AERO6; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: PCM.
• Rotors: 14.00-inch diameter × 1.25-inch thickness; Plain Face; C/SiC; Plain surface; 24 vanes.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

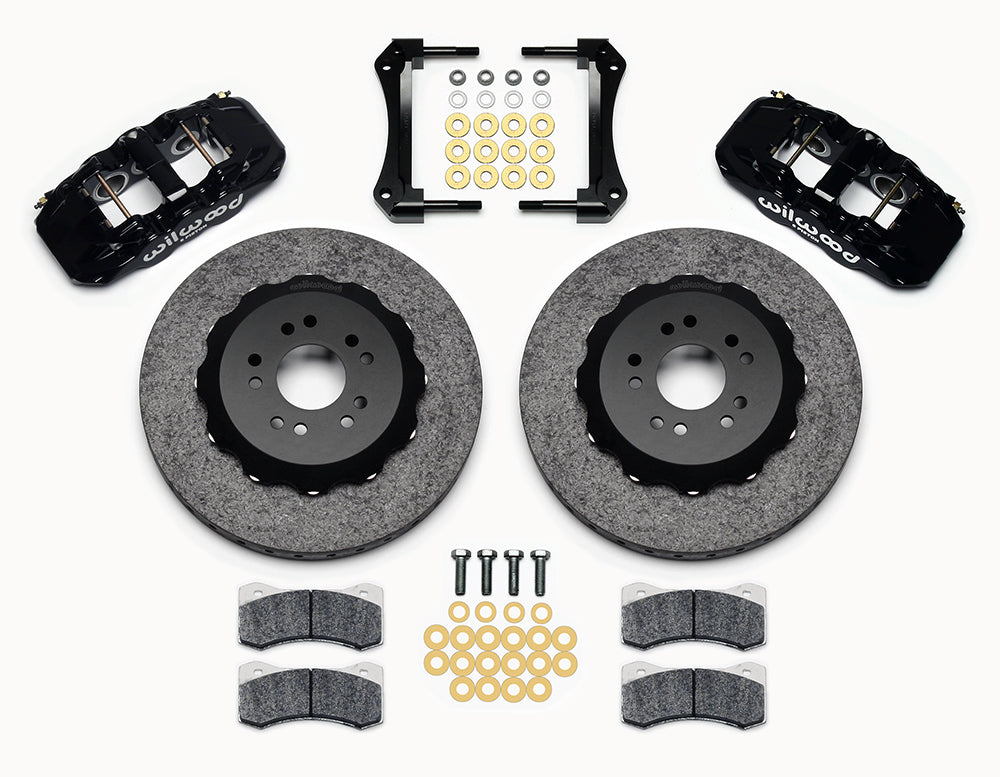

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Confirm the exact Mustang equipment entry and compare the installation with DS933. A qualified machinist must perform the specified spindle modifications before the caliper brackets are installed. Inspect hub seating and the 18-inch screening envelope against the actual wheel spokes and barrel. Hydraulic hoses are separate. Retain the specified carbon-ceramic/PCM combination and verify the completed hydraulic system and rear brake balance before use.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
