Wilwood Slotted 14-Inch Front Conversion with Red Calipers, Ford/Mercury Ranchero/Comet/Falcon/Torino/Montego/Cougar/Fairlane/Cyclone/Caliente/Mustang (1963–1969), Replacement Hubs

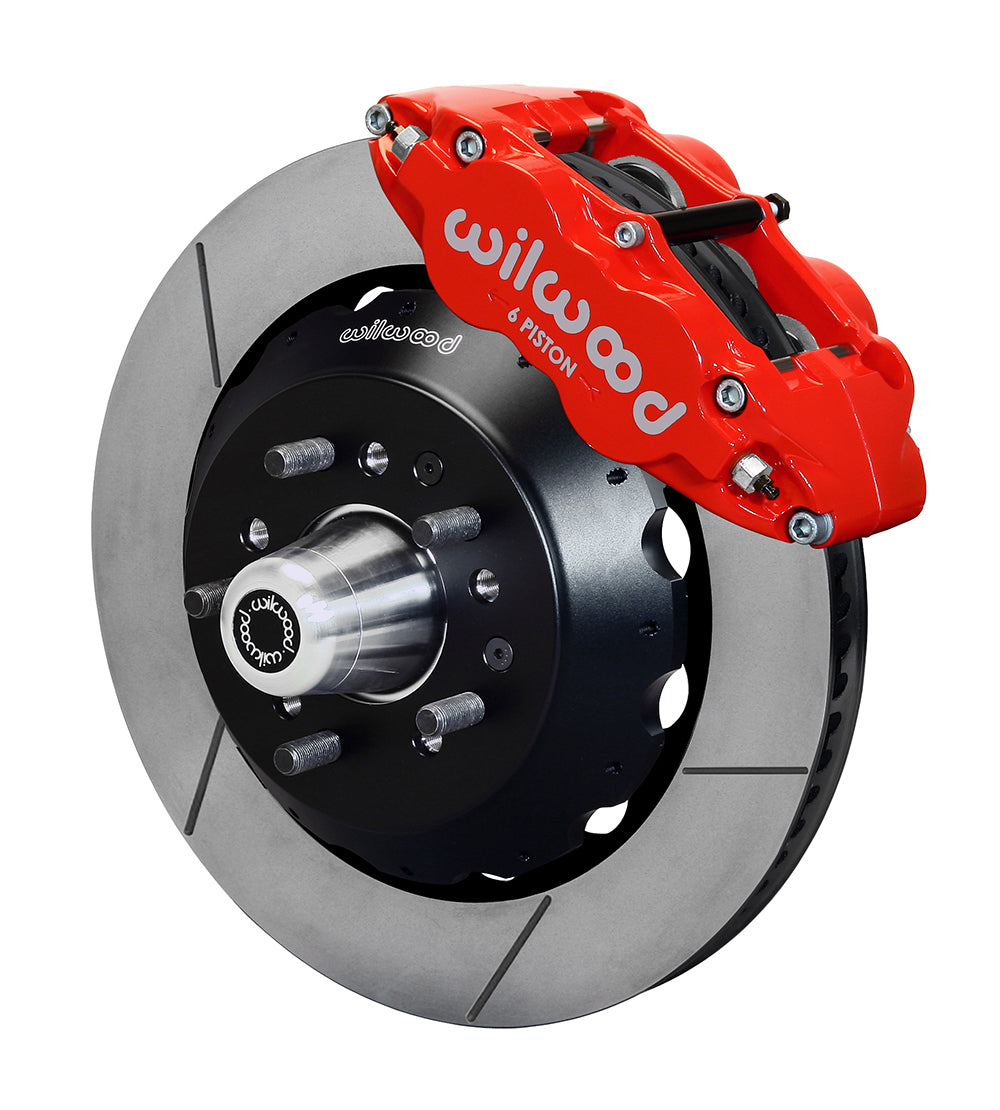

This Wilwood front hub package uses red Superlite 6R calipers with 14-inch GT slotted rotors for the stated Ford and Mercury V8-spindle installations. Separate hats carry the 72-vane iron rings, with BP-10 pads supplied. Spindle selection follows the individual model/year and original brake configuration rather than a general assumption that all early V8 suspension hardware is identical. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12638-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch thickness; GT Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

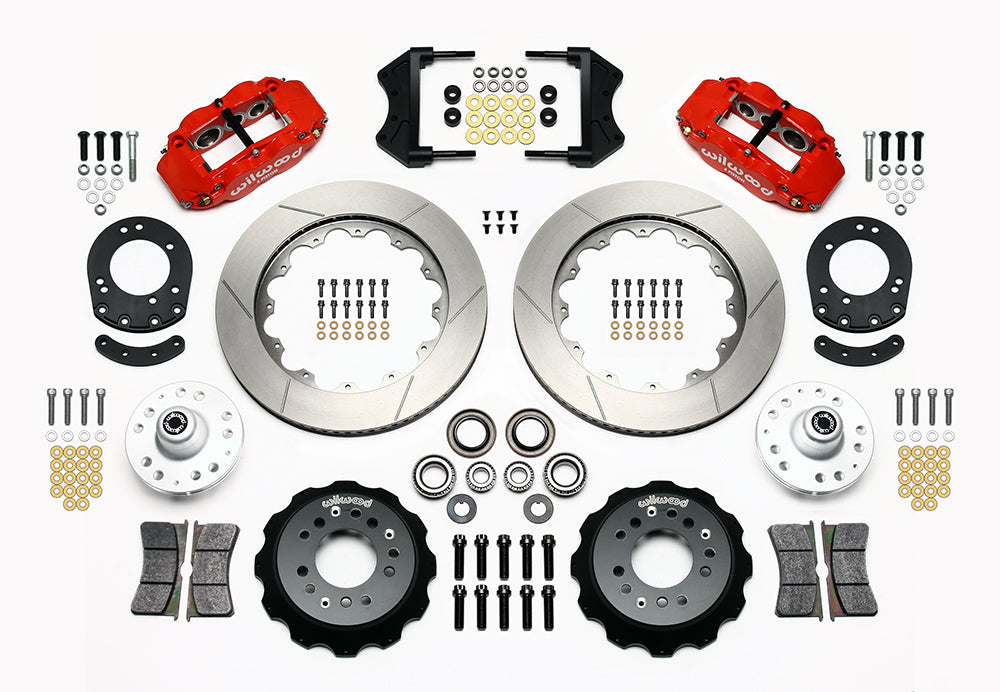

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the actual spindle with DS929, including its 1965–1967 disc/drum and 1968–1969 drum-only Mustang restrictions. Confirm the selected hub lug pattern and the 0.25-inch outward wheel-position change. The larger brake assembly requires the complete 18-inch wheel-envelope check, including spokes. Choose hydraulic hoses separately and verify master-cylinder mounting, pushrod arrangement and front/rear hydraulic balance for the completed installation.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
