Wilwood Black Superlite 6R Front Disc Kit, 14-Inch SRP, Ford/Mercury Comet/Falcon/Ranchero/Mustang/Fairlane/Cyclone/Caliente/Torino/Cougar/Montego (1963–1969)

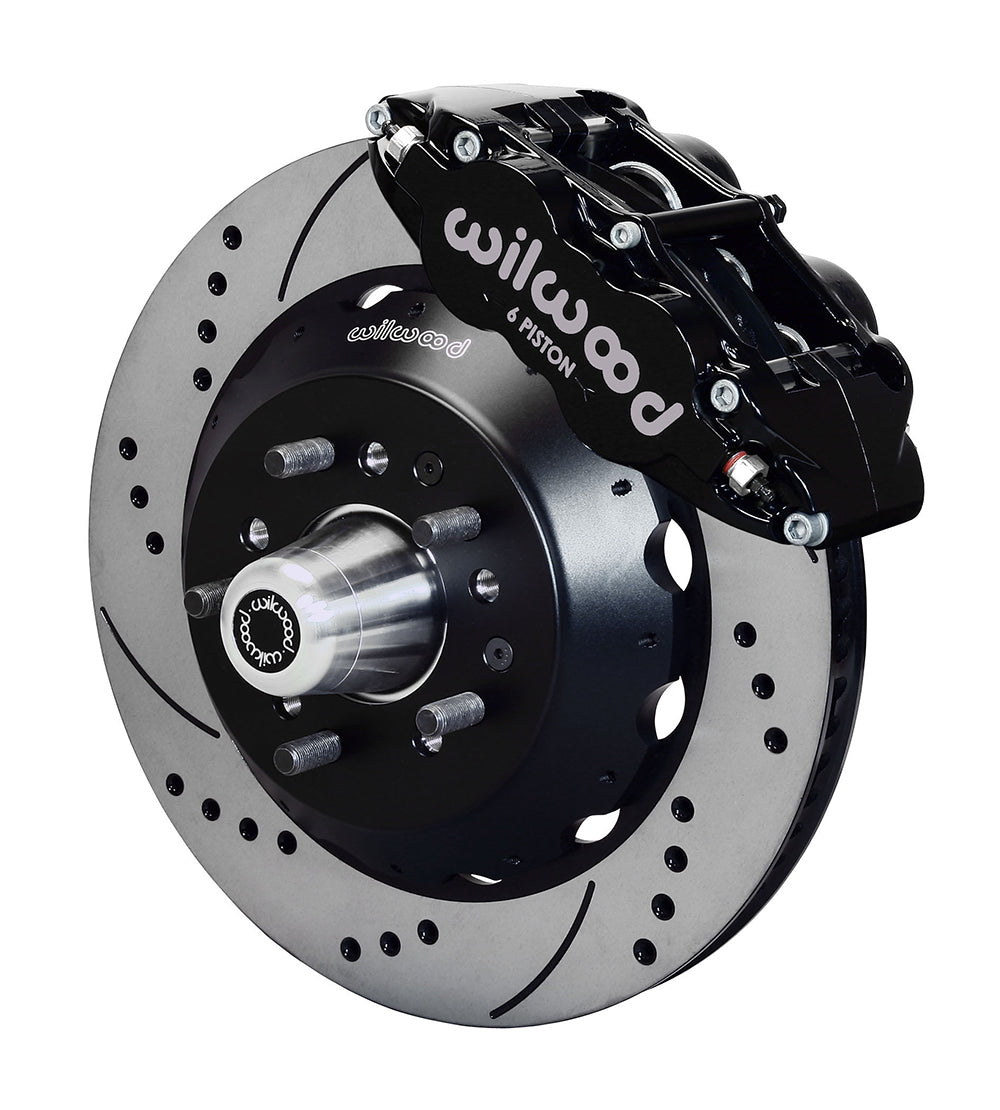

Wilwood's drilled/slotted 14-inch front package supplies black Superlite 6R calipers, replacement hubs and separate rotor hats. It is intended for the listed Ford/Mercury V8 spindle configurations, with the 72-vane Spec-37 rings and BP-10 pads forming the selected braking combination. Year-specific original brake equipment remains necessary when comparing the Mustang and other model applications. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12638-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

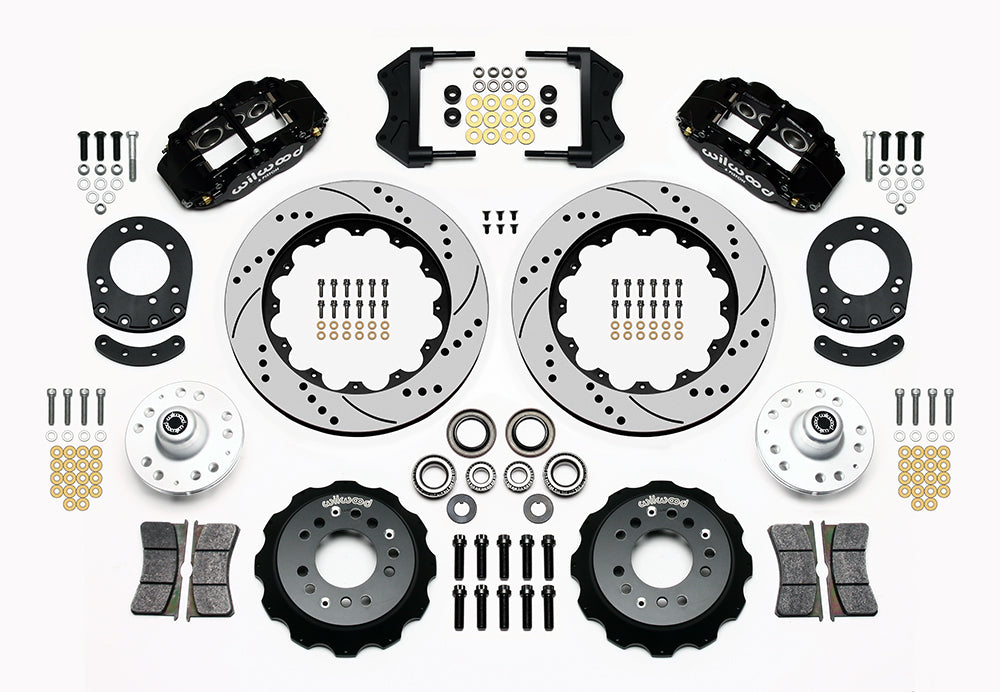

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Match the physical spindle and bearing arrangement to DS929. Original 1965–1967 Mustang V8 disc/drum and 1968–1969 drum spindles have different application conditions. Allow for the 0.25-inch outward wheel shift on each side, then check the full 18-inch screening envelope against the actual rim. Select hydraulic hoses for the vehicle and production year, and review master-cylinder/pushrod geometry before establishing front/rear brake balance.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
