Wilwood GT Front Brakes with Red Superlite Calipers, Ford/Mercury Falcon/Ranchero/Comet/Fairlane/Cyclone/Mustang/Caliente/Cougar/Torino/Montego (1963–1969), 12.88-Inch Rotors

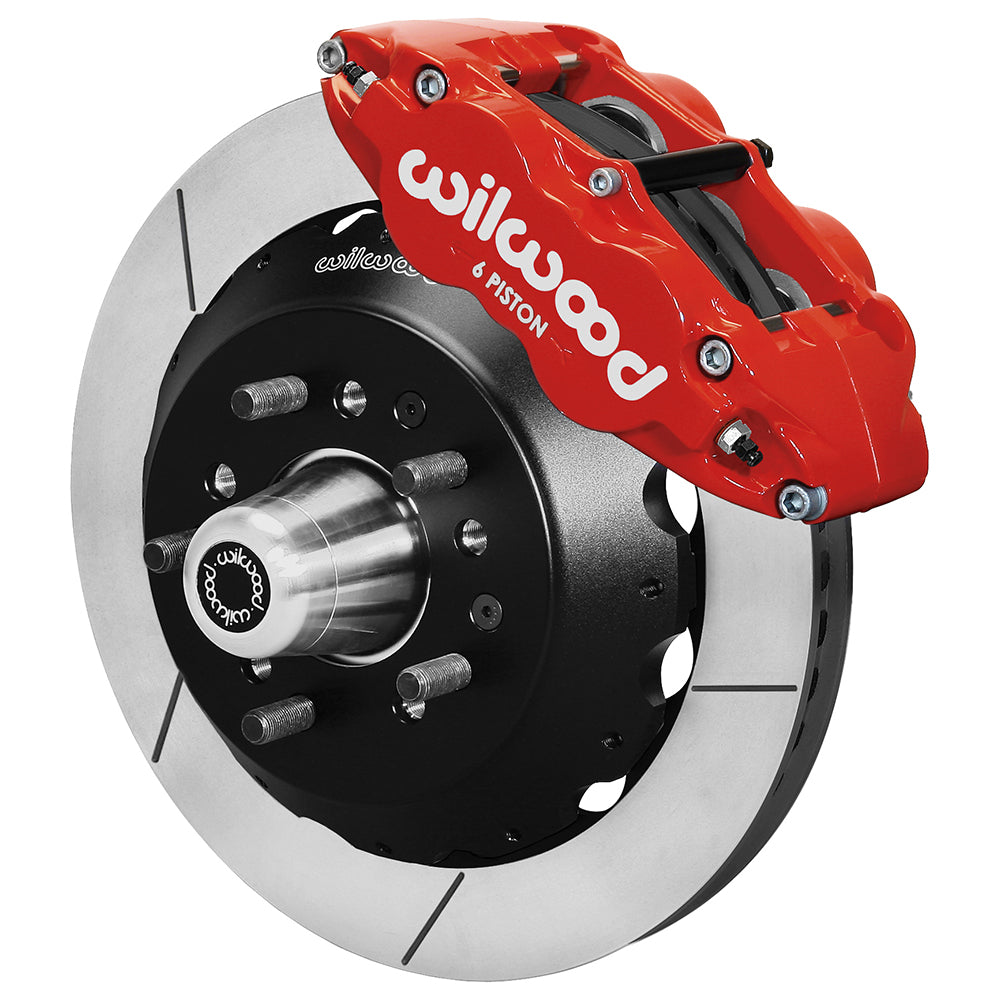

Wilwood pairs red six-piston calipers with GT slotted 12.88-inch Spec-37 rings in this front hub conversion. The package uses the specified original V8 spindle and replacement hubs for the listed Ford/Mercury applications. Separate hats and radial brackets establish rotor and caliper location, with the individual year and original brake arrangement controlling whether the mounting is suitable. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12637-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch thickness; GT Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

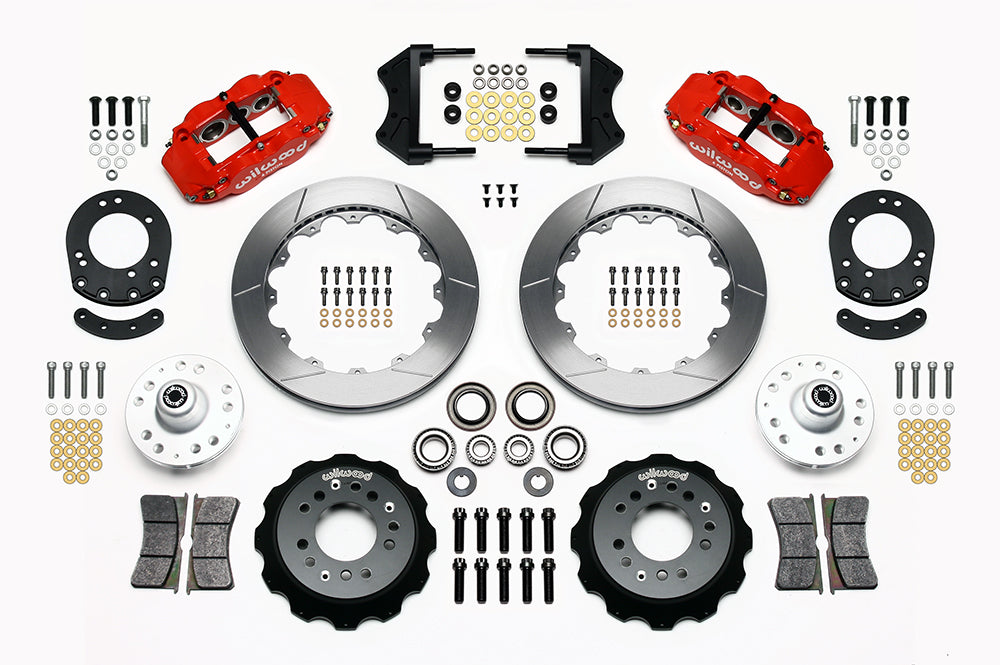

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Identify the spindle before choosing the conversion: DS928 permits the specified 1965–1967 Mustang V8 disc/drum configuration, but 1968–1969 uses the drum spindle only. Confirm the individual entry for Falcon, Ranchero, Comet, Fairlane, Cyclone, Caliente, Cougar, Torino and Montego rather than extending Mustang conditions to every Ford/Mercury model. The replacement hubs offer 5 x 4.50- and 5 x 4.75-inch wheel patterns; select the pattern for the actual rim and inspect bearing seating and stud engagement. Measure tire position with the 0.25-inch outward change at each wheel. The 12.88-inch rotor package screens for 17-inch wheels, subject to the complete spoke/barrel drawing. Hydraulic hoses are separate, and production-year differences in the original hose arrangement must be addressed before steering and suspension travel are checked.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
