Wilwood SRP Front Hub Kit, Black Six-Piston Calipers, Ford/Mercury Cougar/Montego/Torino/Mustang/Caliente/Cyclone/Fairlane/Comet/Ranchero/Falcon (1963–1969), 12.88-Inch Rotors

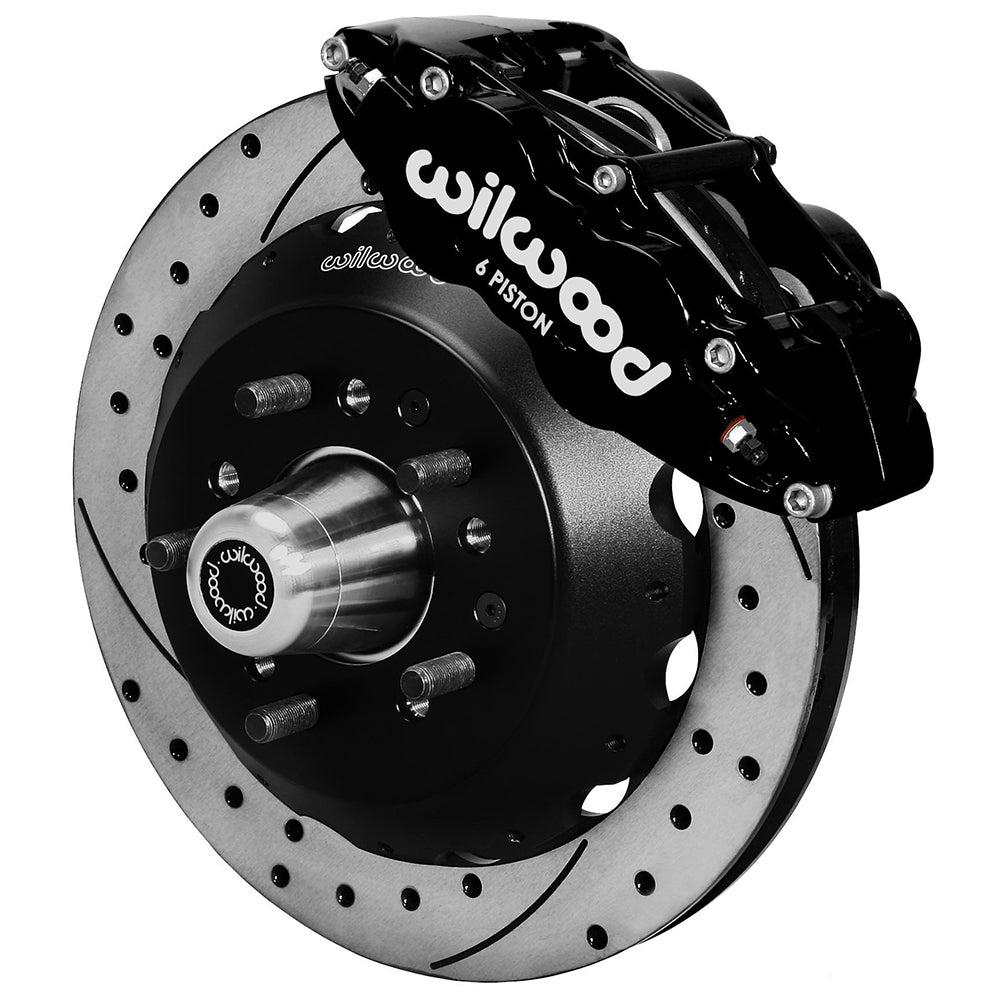

Drilled/slotted 12.88-inch rings and black Superlite 6R calipers distinguish this Wilwood front hub conversion. It is configured for the listed Ford/Mercury V8 spindles, with separate hats and replacement hubs supporting the rotor assembly. The precise original disc-versus-drum spindle conditions depend on year, particularly for 1968–1969 Mustang applications where only the drum spindle is specified. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12637-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
• Wheel mounting change from OE: +.25 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

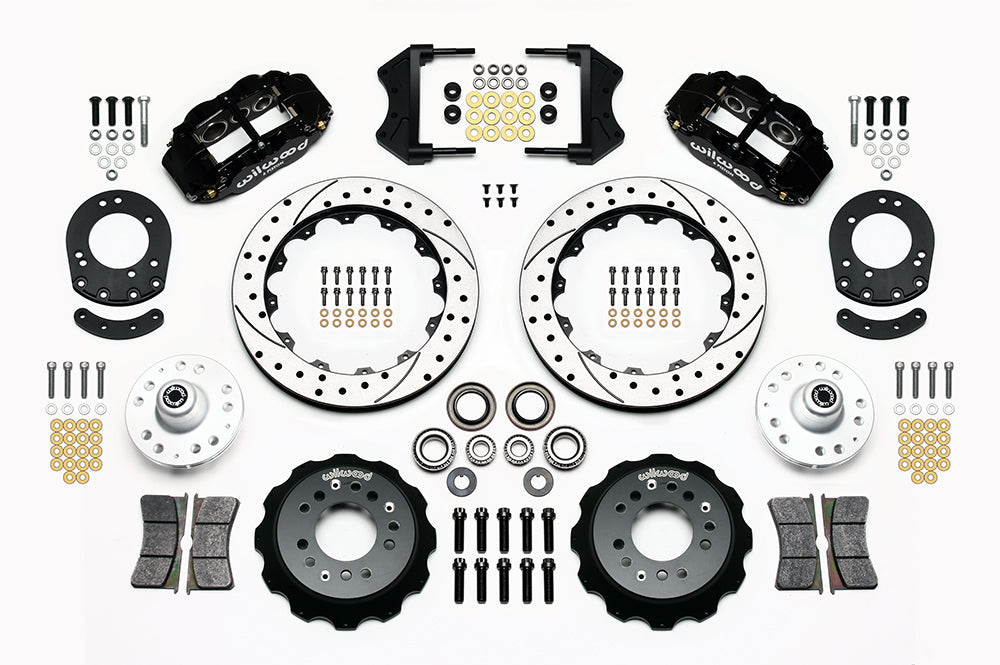

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the spindle and bearing geometry with DS928 before dismantling the brakes. Match the hub bolt pattern to the wheel and account for the positive 0.25-inch offset change on each side. Check the entire caliper outline against barrel and spokes. Select hydraulic hoses for the specific production year and steering movement, then assess the original master-cylinder pushrod arrangement and complete front/rear hydraulic requirements.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
