Wilwood Red Front SRP Brake & Hub Conversion, Oldsmobile F-47/G-47/J-47/L-47/Series 88/88/98/Deluxe 88/Standard 88/Super 88/Series 60/Series 70/Series 90/Series 66/Series 68/Series 76/Series 78/Series 96/Series 98/E-47 (1940–1952)

Wilwood's red-caliper front conversion supplies 11.75-inch drilled/slotted rings and replacement hubs for the specified Oldsmobile drum spindles. The four-piston Dynalite calipers and mounting brackets form a matched brake assembly with BP-10 pads. Verify the individual Series or Eight model entry and the installed spindle rather than assuming every car within the overall 1940–1952 span shares the same mounting. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12617-DR

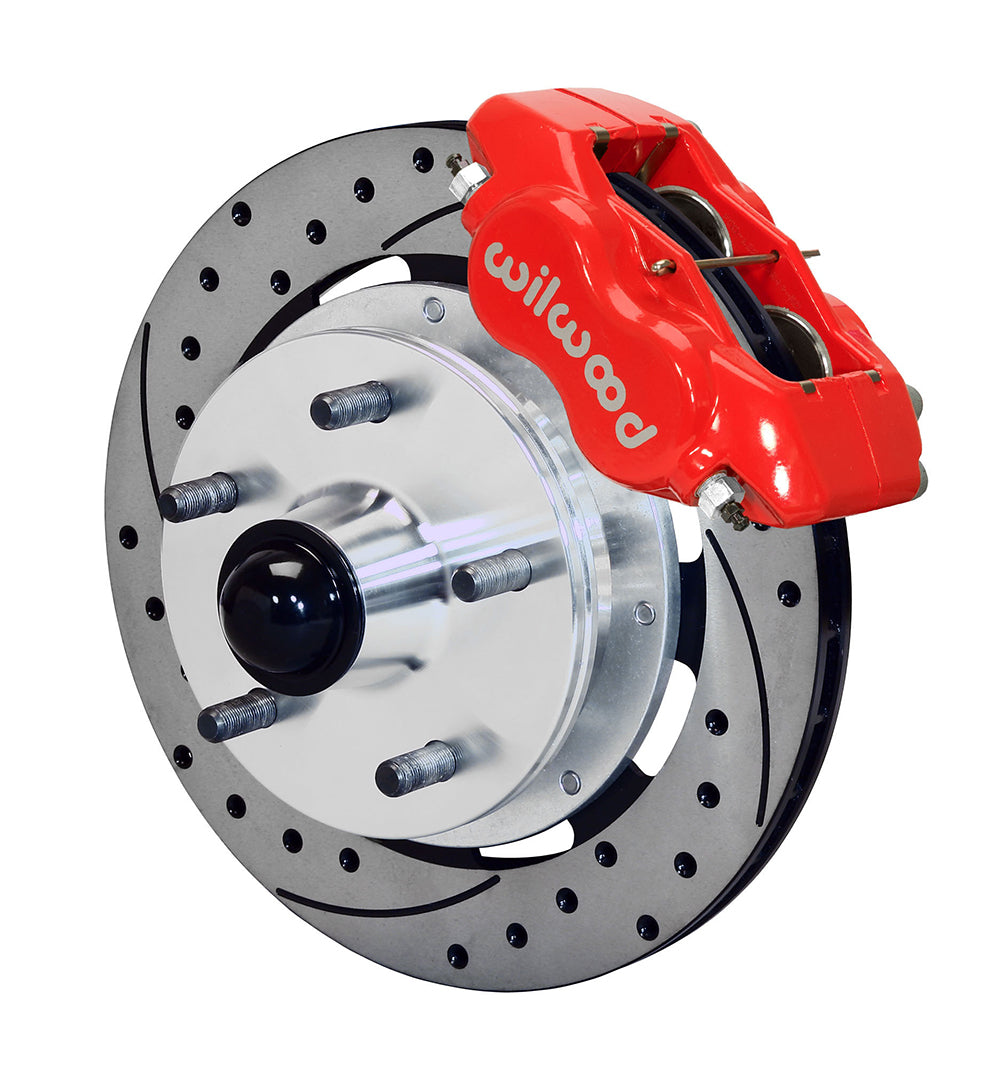

• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 11.75-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Wheel mounting change from OE: +.039 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 5.00 inches.

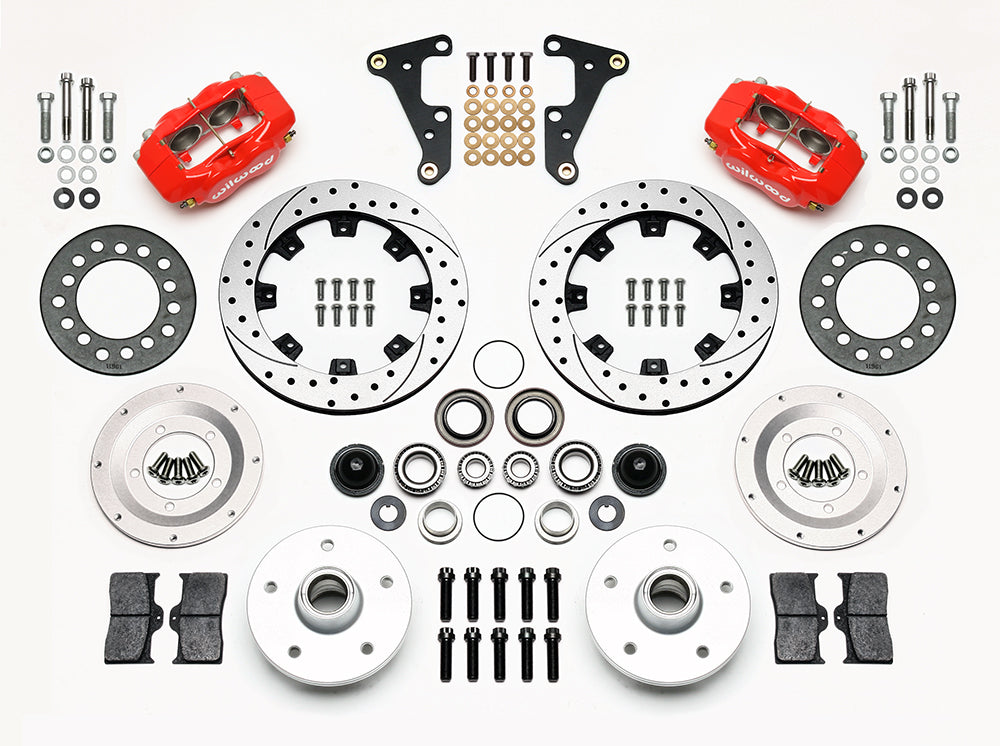

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is supplied with this kit.
• The wheel-clearance drawing includes the supplied wheel spacer installed; account for its thickness and stud engagement in the completed wheel arrangement.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Check bearing and bracket fit using DS936, then assess the five-on-five-inch hub pattern and outward 0.039-inch wheel shift. The actual wheel must clear the caliper bridge and rotor envelope. Hydraulic hoses are separate. Review the existing master-cylinder pushrod and pedal arrangement before installation, since adaptation may be required, and verify hydraulic volume and brake balance with the rear brake package.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
