Wilwood Plain 12.19-Inch Front Brakes for Jeep CJ5/CJ7/Scrambler (1982–1986), Red Superlite Conversion

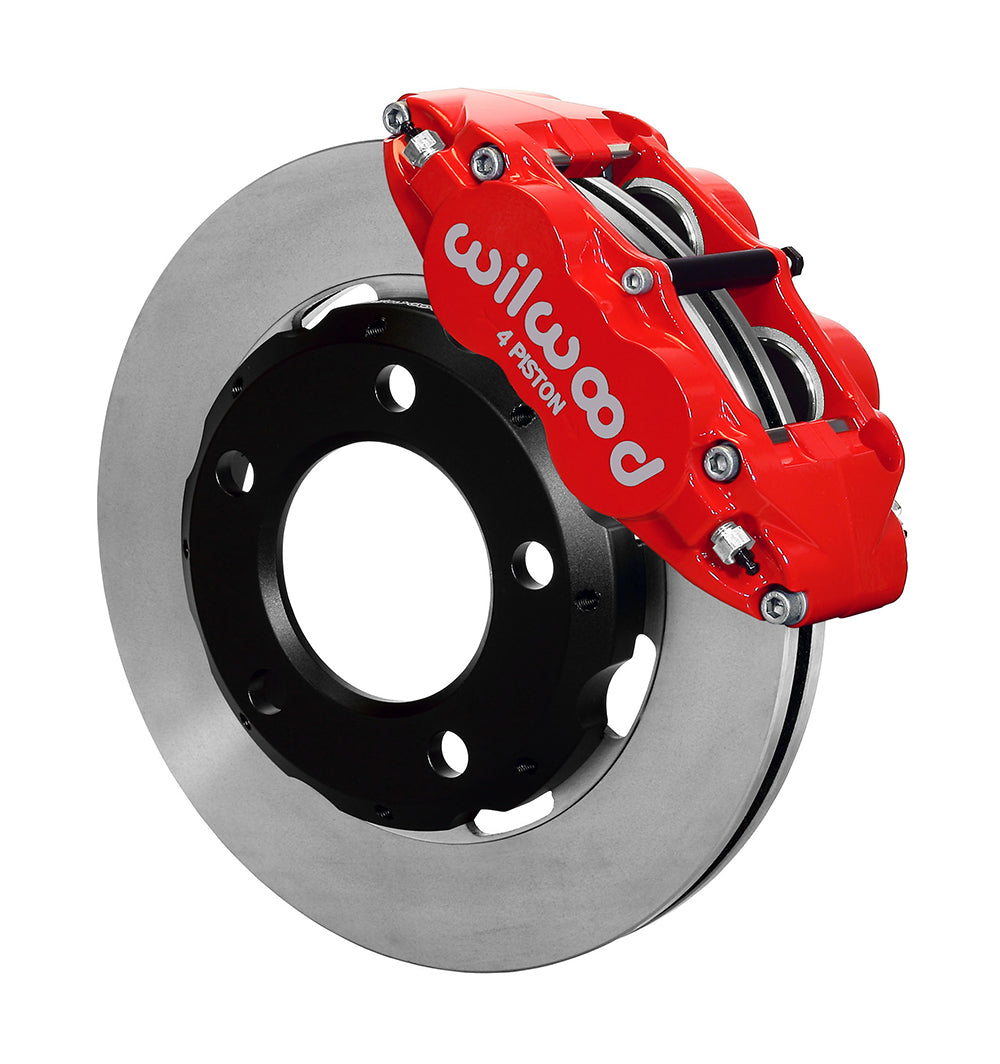

This Wilwood front package pairs red Superlite 4R calipers with plain-face 12.19-inch rotors for the specified Jeep CJ5, CJ7 and Scrambler applications. The rotor hats and radial brackets are selected for the matching original hub/spindle arrangement. Check the listed production year and equipment before installation, especially on a CJ fitted with replacement axles or altered front hubs. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12613-R
• Type: Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel bolt circles: 5 x 5.50 inches.

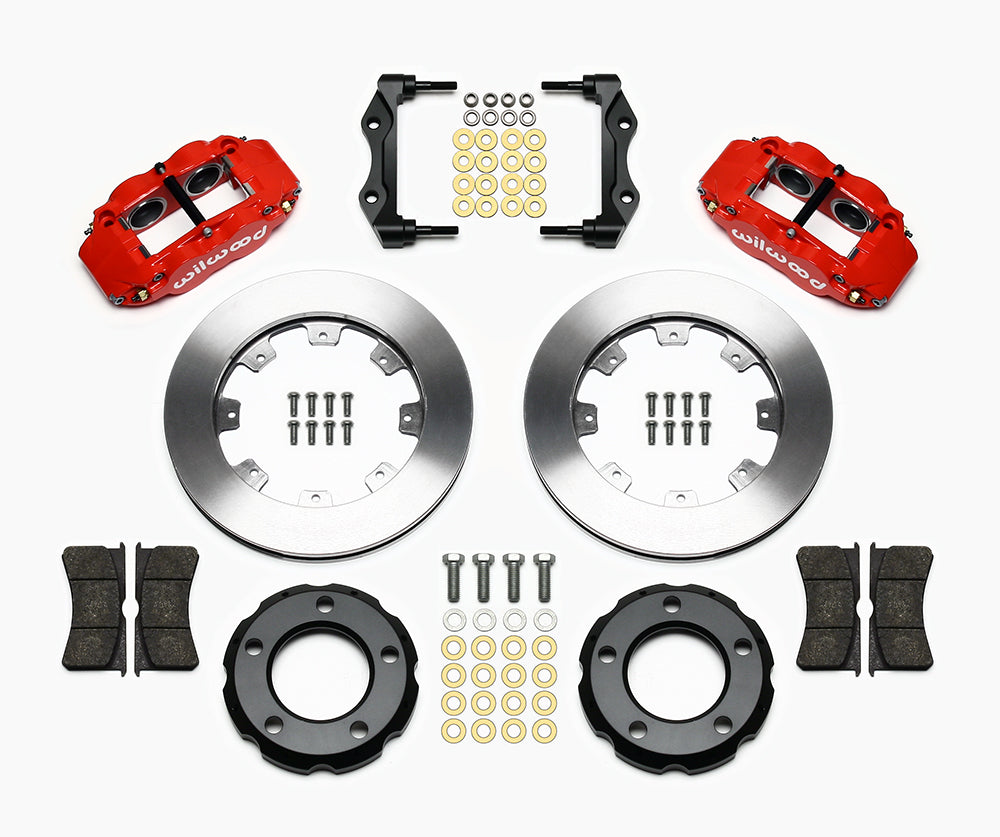

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Confirm whether the vehicle is the listed CJ5, CJ7 or Scrambler configuration, then compare its actual hub and spindle with DS926. Replaced axles can change the hub interface despite a matching vehicle year. The separate hat needs correct register seating and the five-on-five-and-a-half-inch wheel pattern. Follow the hub preparation and bearing-adjustment sequence, installing the separately sourced new OE grease seal where directed. Red calipers and plain 12.19-inch rings still need the entire wheel outline checked, including spoke depth near the bridge. Select hoses for the real steering range, lift height and suspension travel, and establish hydraulic balance with the rear brakes before the conversion is tested.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
