Wilwood Plain 12.19-Inch Front Disc Kit, Red, Jeep Cherokee/Wagoneer/Comanche/Wrangler/TJ Series (1984–2006), Early YJ-Type Hubs

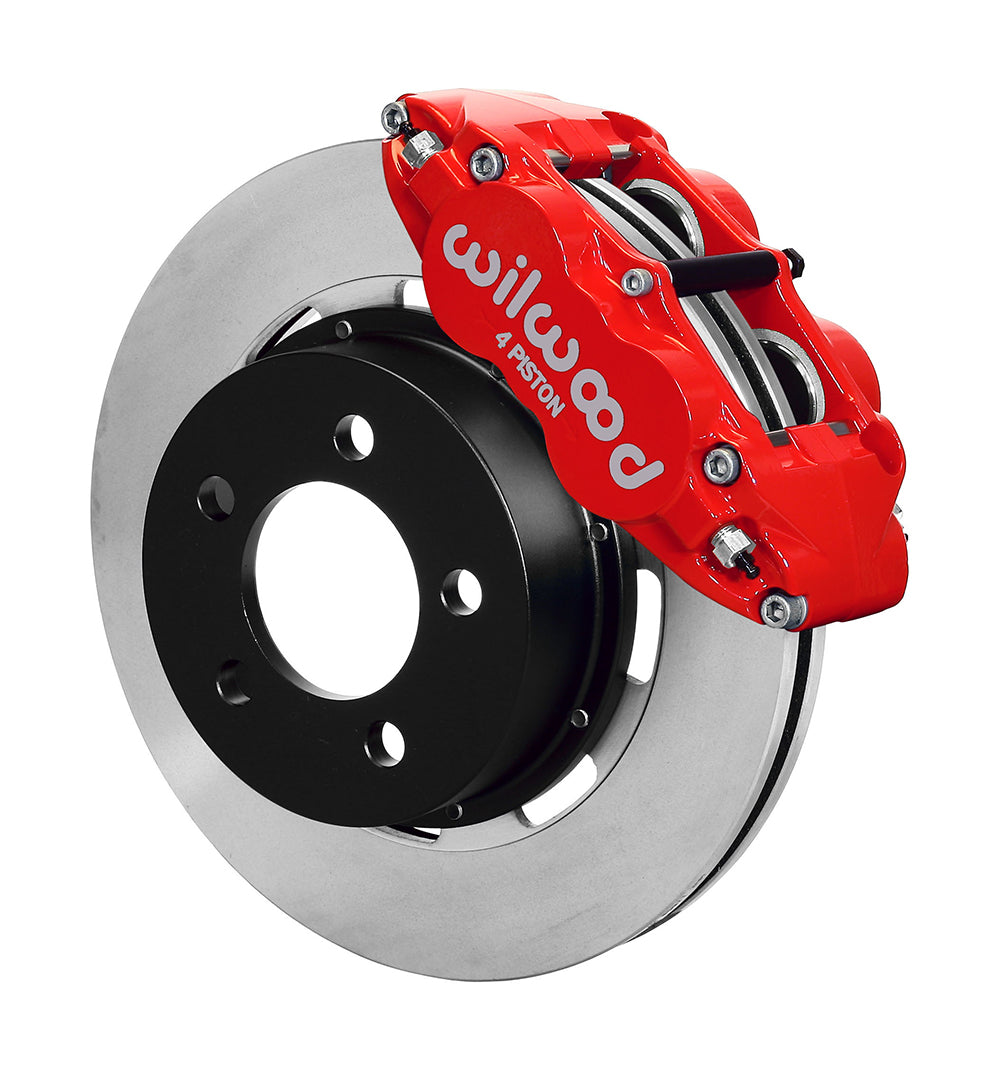

Wilwood pairs red Superlite 4R calipers with plain-face 12.19-inch rotors in this front kit for the stated Jeep hub/spindle applications. The package retains the correctly configured original hubs and uses separate hats and radial brackets. Later YJ/TJ fitment depends on a conversion to 1987–1989 YJ hubs and spindles, which must be completed before the kit can be installed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12576-R
• Type: Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel bolt circles: 5 X 4.50 inches.

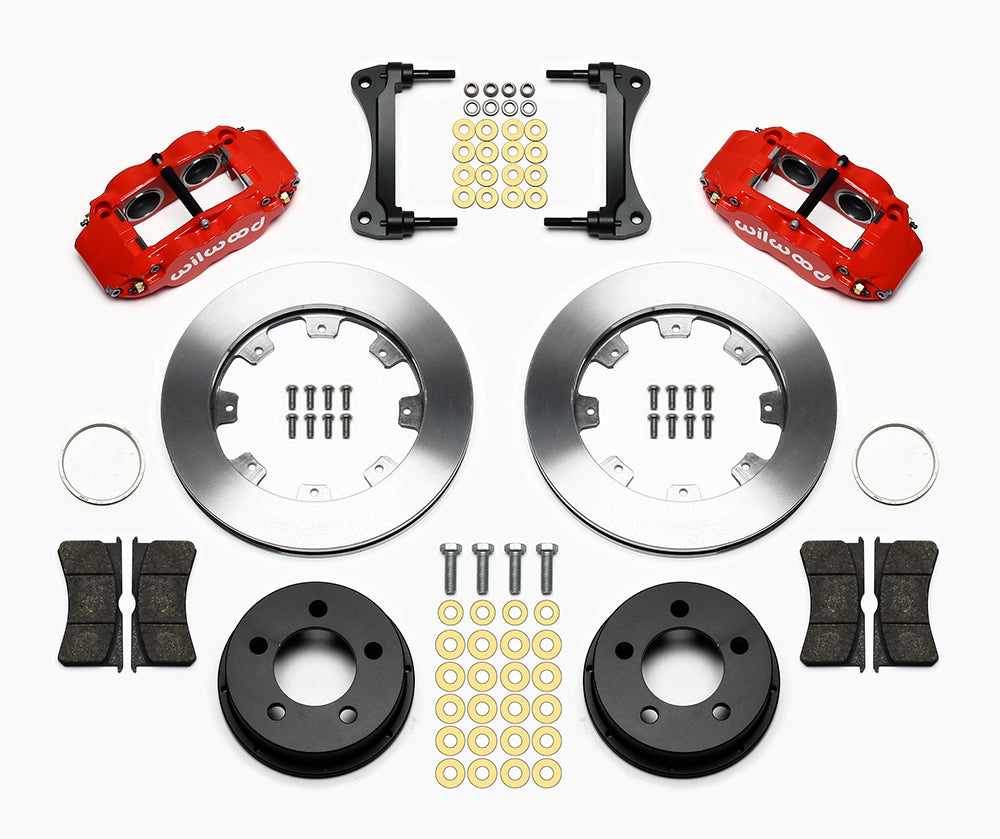

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare hub and spindle dimensions with DS922 before dismantling the brakes. A later-model hub is not interchangeable with the required early-YJ assembly. Follow the dust-shield modification and verify wheel spoke clearance around the caliper. Hydraulic hoses are separate, with length and routing suited to suspension travel and steering movement. Confirm the particular Cherokee, Wagoneer, Comanche or Wrangler application instead of treating the year span as universal.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
