Wilwood Black Superlite 4R Front Kit for Jeep Cherokee/Wagoneer/Comanche/Wrangler/TJ Series (1984–2006), 12.19-Inch Plain Rotors

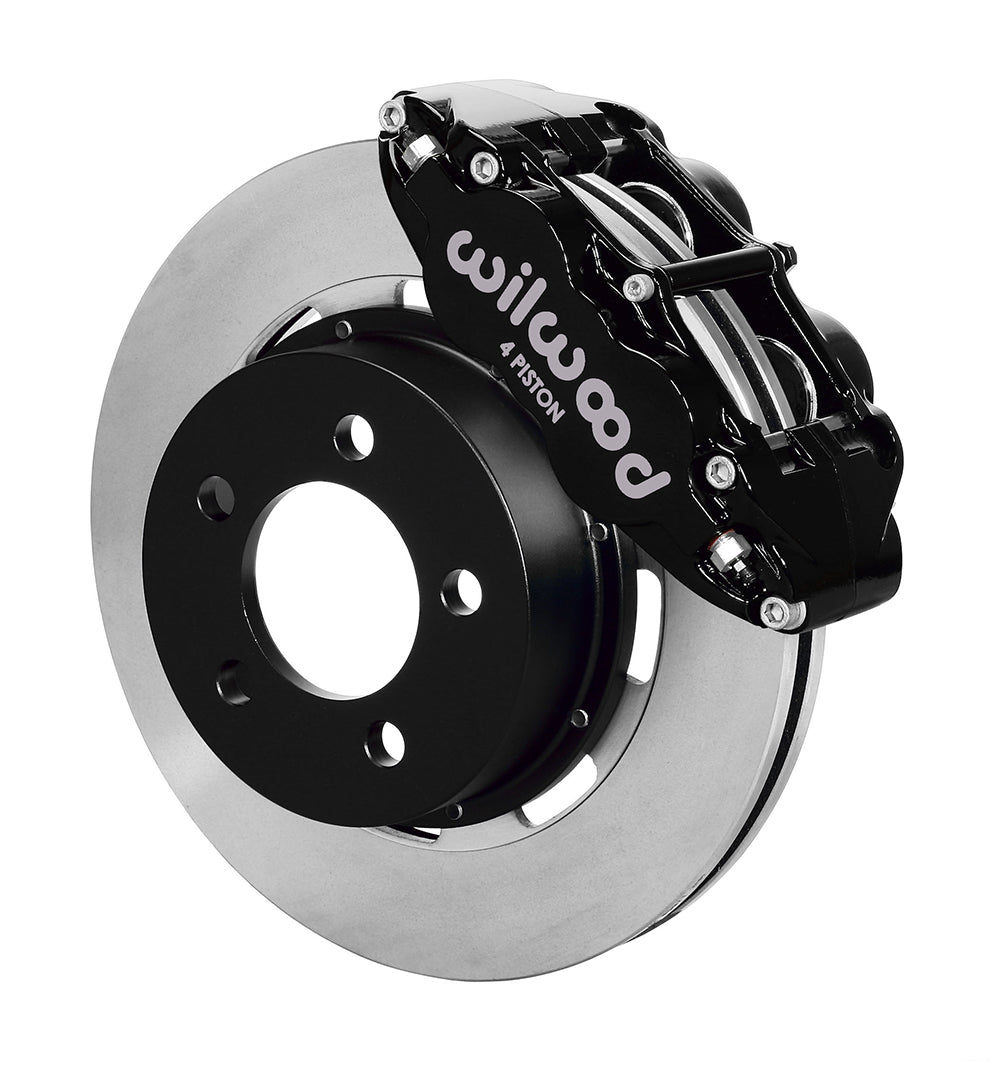

This Wilwood front kit uses black four-piston Superlite calipers and plain 12.19-inch rotors with the specified early Jeep hub/spindle arrangement. The application includes listed Cherokee, Wagoneer, Comanche and Wrangler configurations; later YJ/TJ vehicles require conversion to 1987–1989 YJ spindles and hubs. It does not fit later-model hubs simply because the Jeep appears within the broader model range. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12576
• Type: Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 1.10-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel bolt circles: 5 X 4.50 inches.

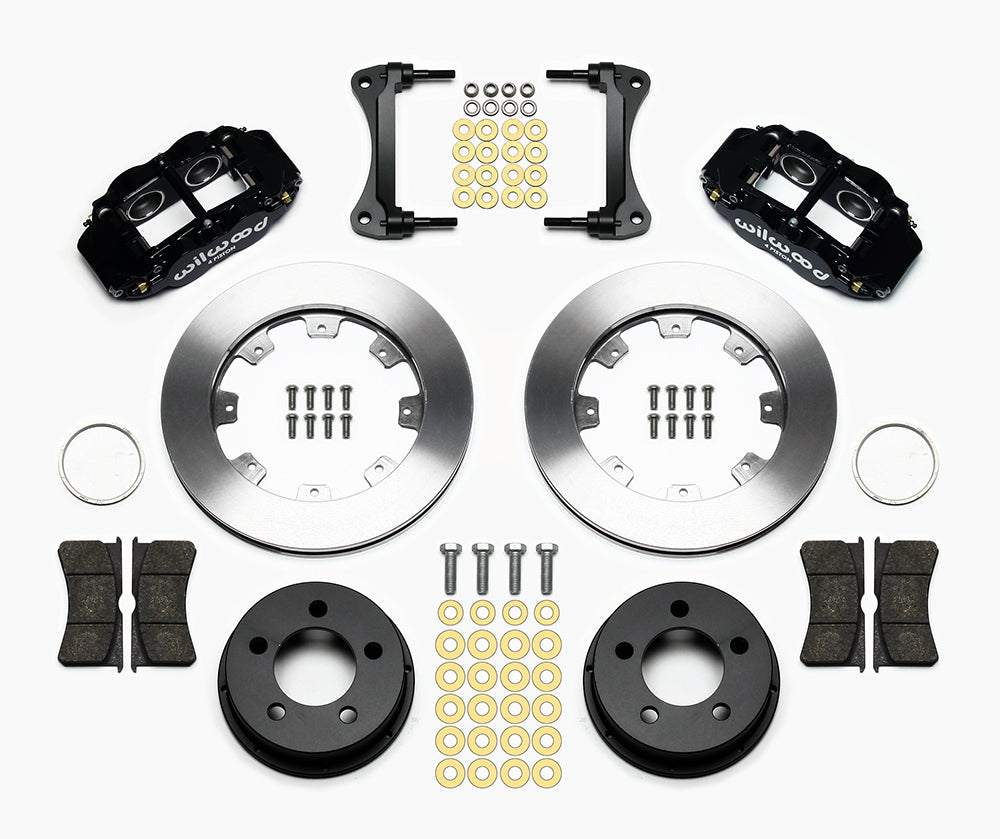

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the installed hubs and spindle with DS922, not only the vehicle year. For 1990–2006 YJ/TJ installations, the early YJ hub/spindle conversion is mandatory. The dust shield needs the modification shown in the instructions. Select hydraulic hoses for the actual chassis and suspension travel, and check the 16-inch screening outline against the wheel's barrel and spokes before confirming front/rear system balance.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
