Wilwood Plain-Rotor Rear Parking Brakes for Jeep Wrangler (1997–2002), Red D154 Dana 35 Kit

This Wilwood rear kit pairs red D154 service calipers with plain 12.19-inch vented rotors and internal parking-brake shoes. It is intended for the listed Wrangler with a non-ABS Dana 35 rear axle, 2.56-inch offset and the matching housing flange. Hydraulic flex lines are part of the selected package, with mechanical parking-cable connections established separately for the vehicle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12567-R
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Rear housing end: Dana 35.
• Required axle flange offset: 2.56 inches.
• Bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

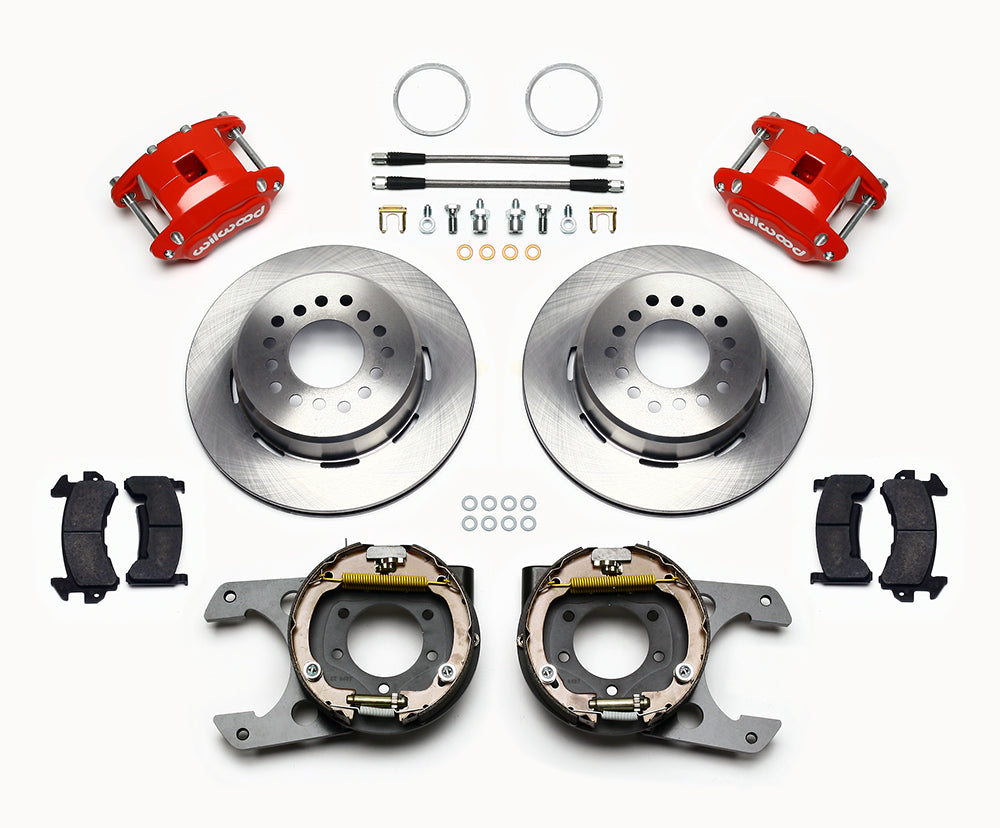

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
• Hydraulic flex lines and connection hardware included for the specified application.
• Parking-brake cables, clevis hardware and adapters are separate.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Axle-flange limit: 6.61-inch maximum diameter with the specified 0.050-inch × 45-degree chamfer. The drawing is for half-inch wheel studs and recommends upgrading smaller original studs; verify any larger-stud machining separately.

Fitment & Compatibility

Measure the axle-end dimensions and compare them with DS920 before dismantling the original brakes. Confirm the non-ABS equipment and rotor registration, then check wheel spoke and barrel clearance. Some 15-inch wheels may fit, although the selected summary screens for 16 inches. Route cables without tight bends and keep hydraulic hoses clear through suspension travel. Verify front/rear hydraulic balance and parking operation after installation.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
