Wilwood Red D154 Rear Brake Kit for Jeep Wrangler (1997–2002), Dana 35 SRP Parking Conversion

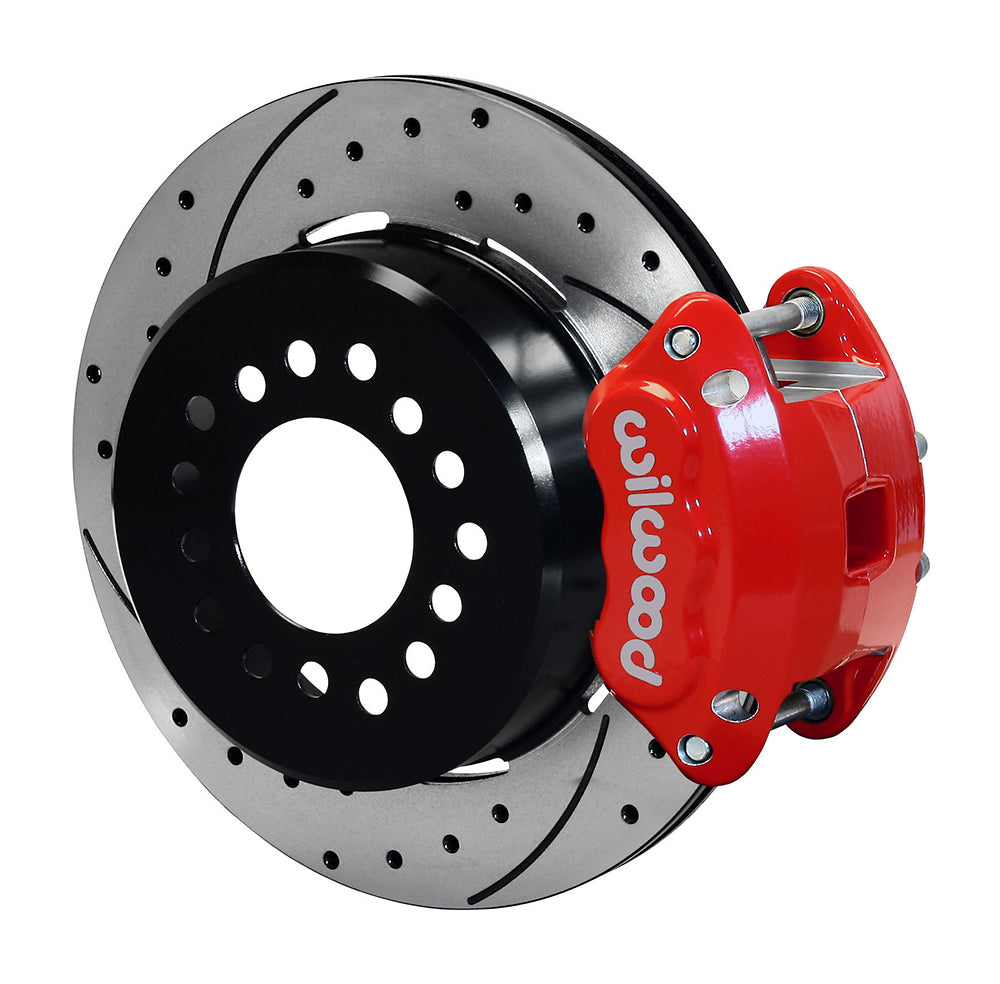

Red floating D154 calipers and drilled/slotted vented rotors identify this Wilwood rear conversion for the stated Jeep Dana 35 application. The service calipers use two pistons each, while internal parking shoes retain a mechanically actuated parking function. Match the non-ABS housing end and 2.56-inch axle offset before selecting the 12.19-inch rotor package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12567-DR
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Rear housing end: Dana 35.
• Required axle flange offset: 2.56 inches.
• Bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

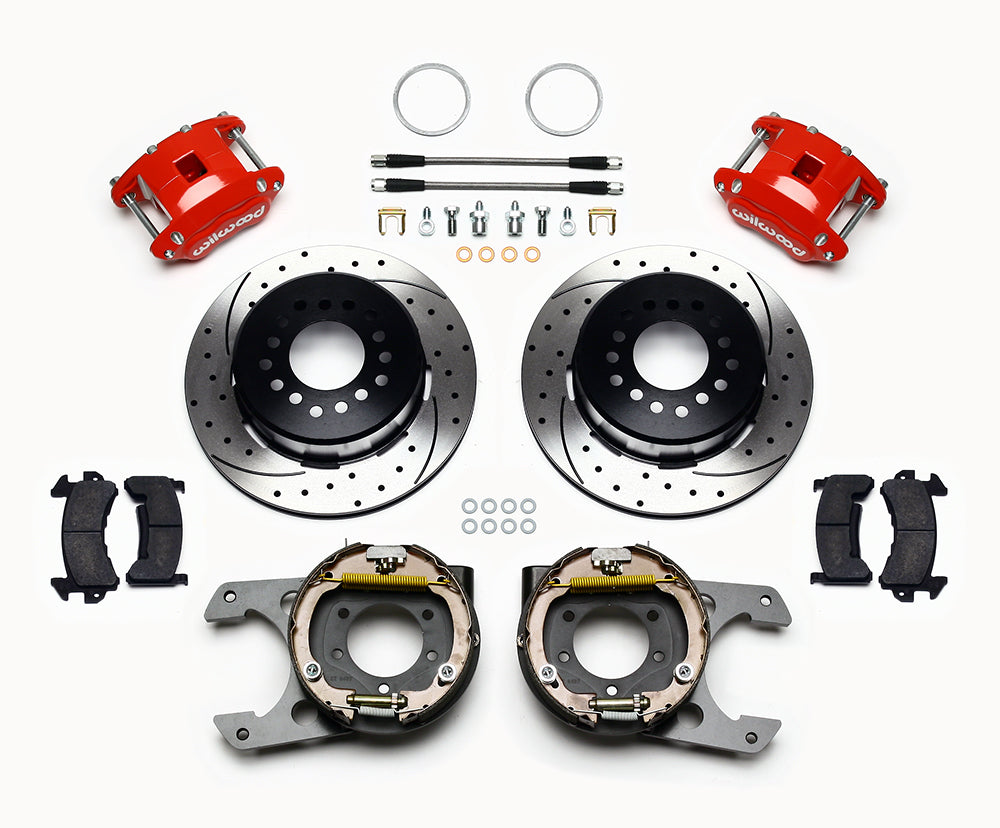

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
• Hydraulic flex lines and connection hardware included for the specified application.
• Parking-brake cables, clevis hardware and adapters are separate.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Axle-flange limit: 6.61-inch maximum diameter with the specified 0.050-inch × 45-degree chamfer. The drawing is for half-inch wheel studs and recommends upgrading smaller original studs; verify any larger-stud machining separately.

Fitment & Compatibility

Use DS920 to verify flange spacing, register and wheel-stud arrangement. The included hydraulic flex lines must be routed for the actual suspension travel, especially on a modified Wrangler. Mechanical cables, clevises and adapters are separate. Check the whole caliper envelope inside the wheel: the 16-inch screening value and conditional 15-inch note both require confirmation against barrel and spoke dimensions rather than model-year assumptions.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
