Wilwood Black SRP Rear Disc & Parking Brake Kit, Jeep Wrangler (1997–2002), Dana 35

Drilled/slotted 12.19-inch rotors and black two-piston D154 calipers form this Wilwood rear package for the specified Jeep Wrangler non-ABS Dana 35 axle. Internal shoes provide the parking brake, with hydraulic flex lines supplied for the service calipers. The housing flange and 2.56-inch offset must match the actual axle rather than a replacement axle from another Wrangler. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12567-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Rear housing end: Dana 35.
• Required axle flange offset: 2.56 inches.
• Bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

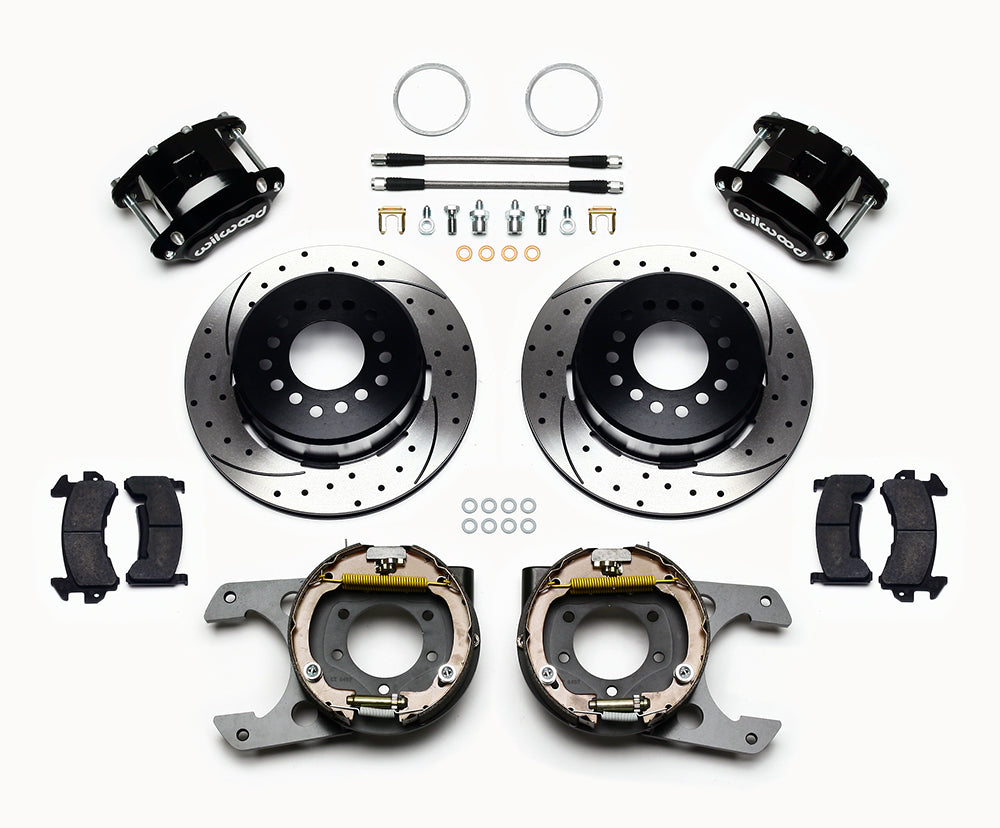

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
• Hydraulic flex lines and connection hardware included for the specified application.
• Parking-brake cables, clevis hardware and adapters are separate.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Axle-flange limit: 6.61-inch maximum diameter with the specified 0.050-inch × 45-degree chamfer. The drawing is for half-inch wheel studs and recommends upgrading smaller original studs; verify any larger-stud machining separately.

Fitment & Compatibility

Compare the rear end, bearing register and axle-to-housing flange offset with DS920. Verify that ABS is absent and that the wheel pattern and studs match the rotor arrangement. Parking-brake cables and adapters are separate. Check the wheel profile using the installation outline; some 15-inch wheels may fit despite the 16-inch screening figure. Route the supplied flex lines clear of all suspension and wheel movement.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
