Wilwood Rear D154 Parking Brake Conversion for Jeep Wrangler (1997–2002), Dana 35 Black Plain

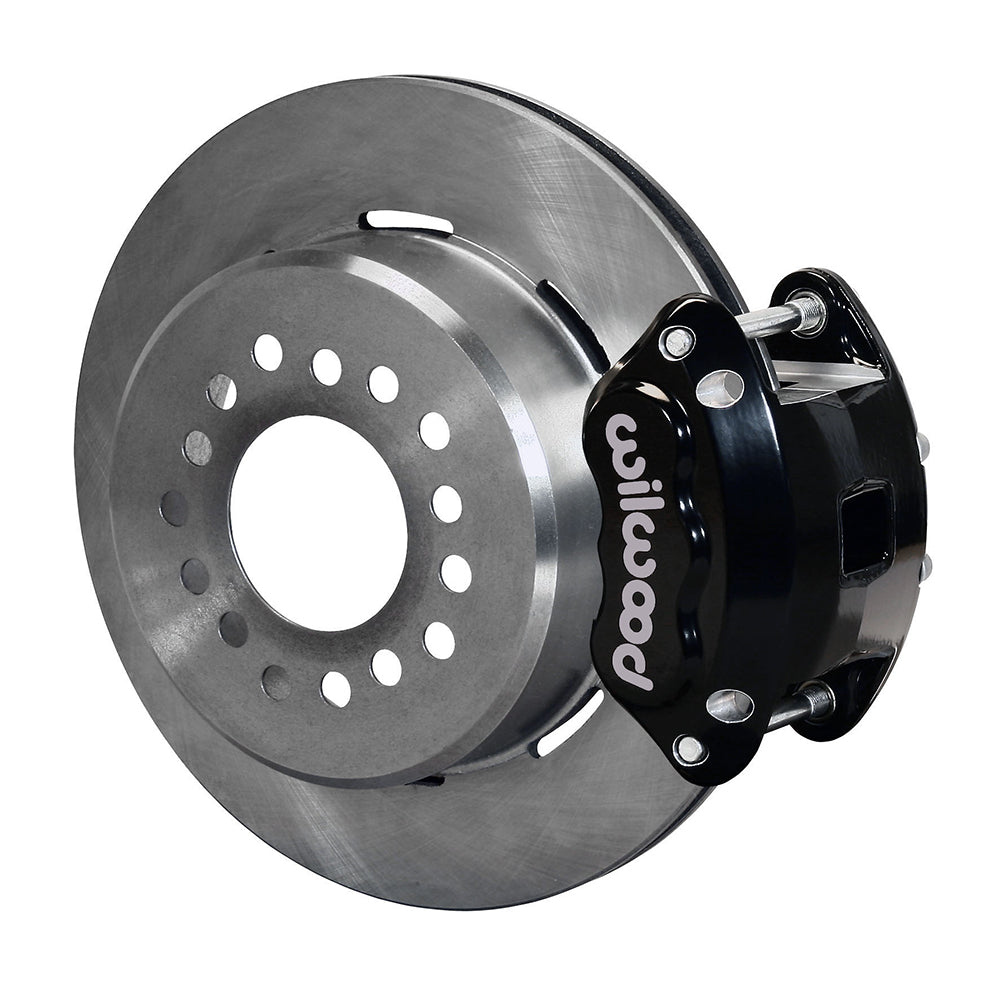

This Wilwood rear conversion supplies black D154 floating calipers, plain 12.19-inch vented rotors and internal parking shoes for the listed non-ABS Jeep Wrangler Dana 35 axle. The two-piston service calipers and mechanical parking assembly perform separate functions. A measured 2.56-inch offset and the correct housing-end geometry are required, with application-specific flex lines included. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12567
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Rear housing end: Dana 35.
• Required axle flange offset: 2.56 inches.
• Bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

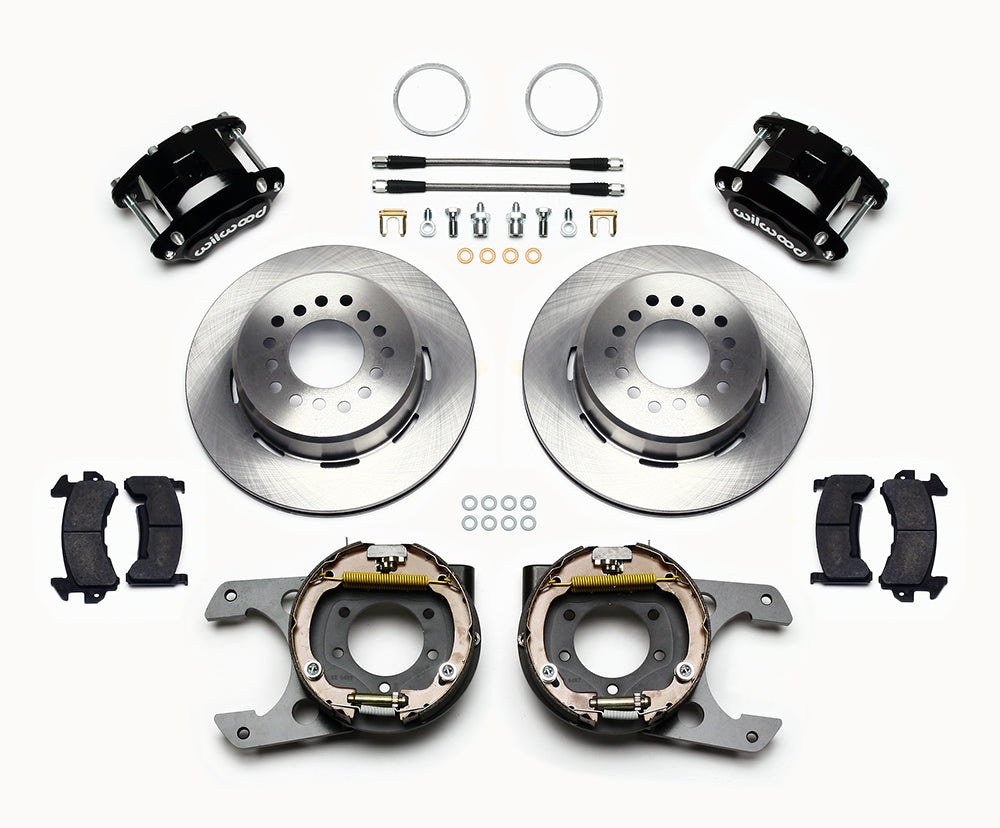

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
• Hydraulic flex lines and connection hardware included for the specified application.
• Parking-brake cables, clevis hardware and adapters are separate.
• Conditional wheel screening size: 16 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Axle-flange limit: 6.61-inch maximum diameter with the specified 0.050-inch × 45-degree chamfer. The drawing is for half-inch wheel studs and recommends upgrading smaller original studs; verify any larger-stud machining separately.

Fitment & Compatibility

Confirm Dana 35 identification and the non-ABS application before ordering. DS920 shows the housing flange, axle register and rotor spacing. Select parking cables and connection hardware separately, checking cable travel and suspension movement. The current summary screens for 16-inch wheels, while its note allows some 15-inch designs; use the actual diagram for barrel and spoke clearance rather than assuming either diameter guarantees fit.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
