Wilwood Front Road-Race Brake & Hub Kit for Chevrolet/Pontiac Camaro/Firebird (1982–1992), Superlite 4R Calipers & 12.19-Inch GT Rotors

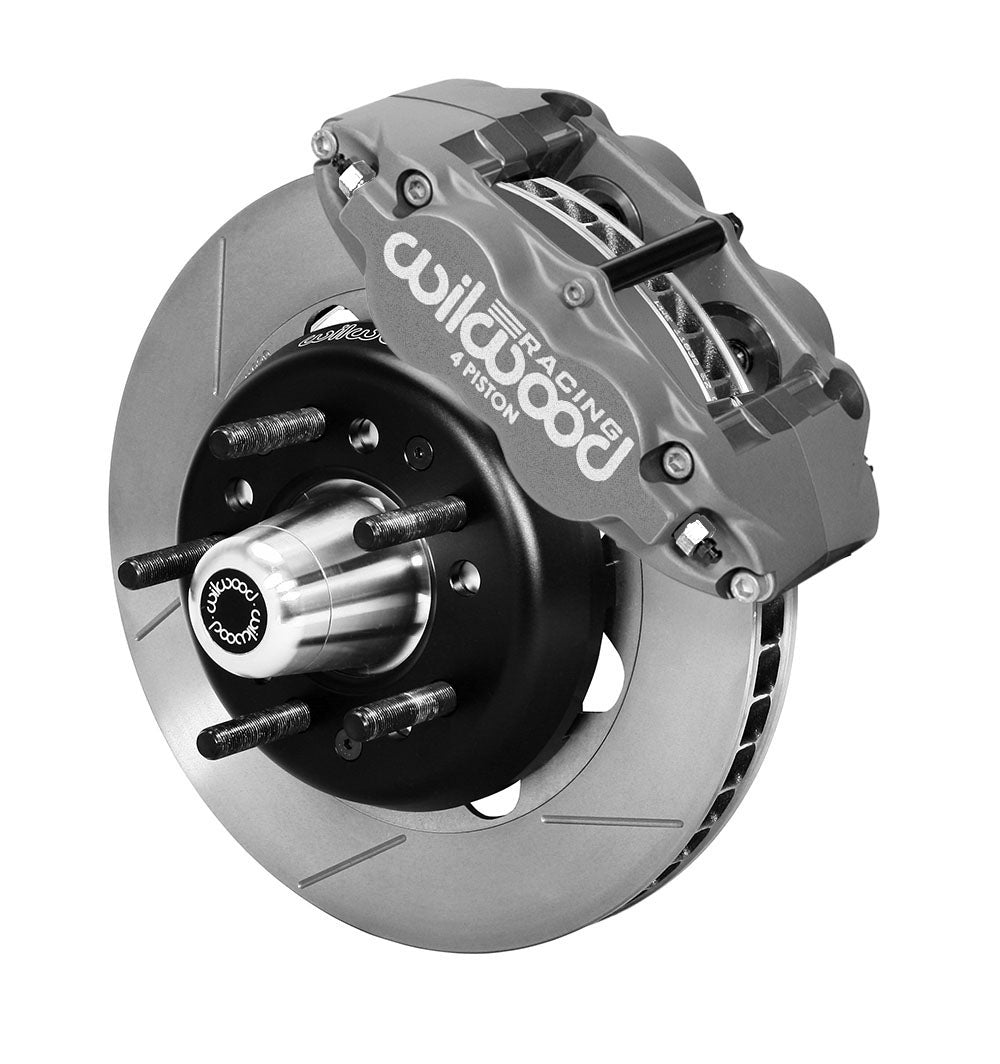

Wilwood's front road-race conversion supplies Thermlock-equipped four-piston calipers, 12.19-inch GT rotors and replacement hubs for the stated Camaro and Firebird applications. The 1.25-inch-thick Spec-37 rings are paired with BP-35 racing pads and hydraulic flex lines. The original spindle needs modification; 1988–1992 applications are limited to the OE single-piston-caliper spindle arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12518
• Type: Forged Superlite 4R Big Brake Front Brake Kit (Race)
• Calipers: Forged Superlite 4R; 4 pistons per caliper; Type III Anodize.
• Caliper bore sizes: 1.88, 1.62 inches. Piston type: Thermlock.
• Included pad compound: BP-35.
• Rotors: 12.19-inch diameter × 1.25-inch thickness; GT Slotted; Spec-37 Iron; Plain surface; 48 curved vanes.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.75 inches.

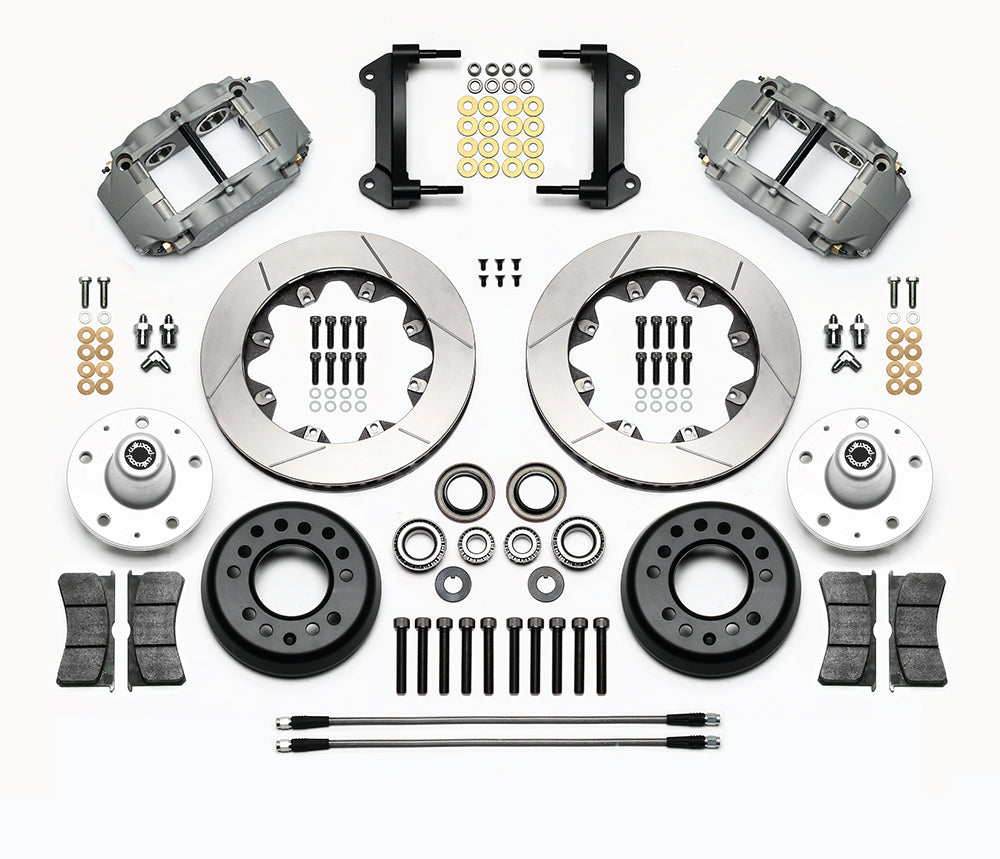

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic flex lines and connection hardware included for the specified application.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Use restriction: Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

Fitment & Compatibility

Compare the spindle casting with DS900 before machining or ordering. Check the individual rear-disc or rear-drum application row as well as model year. The racing pads require high operating temperature, and extended low-temperature use accelerates pad and rotor wear. Use the full clearance diagram for any 15-inch wheel, then verify hose routing, bearing adjustment and system balance with the completed rear brake package.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
