Wilwood Plain Front Rotor & Red Dynalite Hub Conversion, Chevrolet Kingswood/Nomad/Parkwood/Brookwood/Corvette/El Camino/Sedan Delivery/Impala/Bel Air/Biscayne (1959–1964), 12.19-Inch Rotors

Plain 12.19-inch rotor faces and red four-piston Dynalite calipers distinguish this Wilwood front hub conversion. It replaces the original brake assembly on the specified early Chevrolet spindles, using matched hubs, brackets and BP-10 pads. Compare the individual full-size-car or early Corvette fitment rather than treating every Chevrolet spindle within the period as identical. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12459-R
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

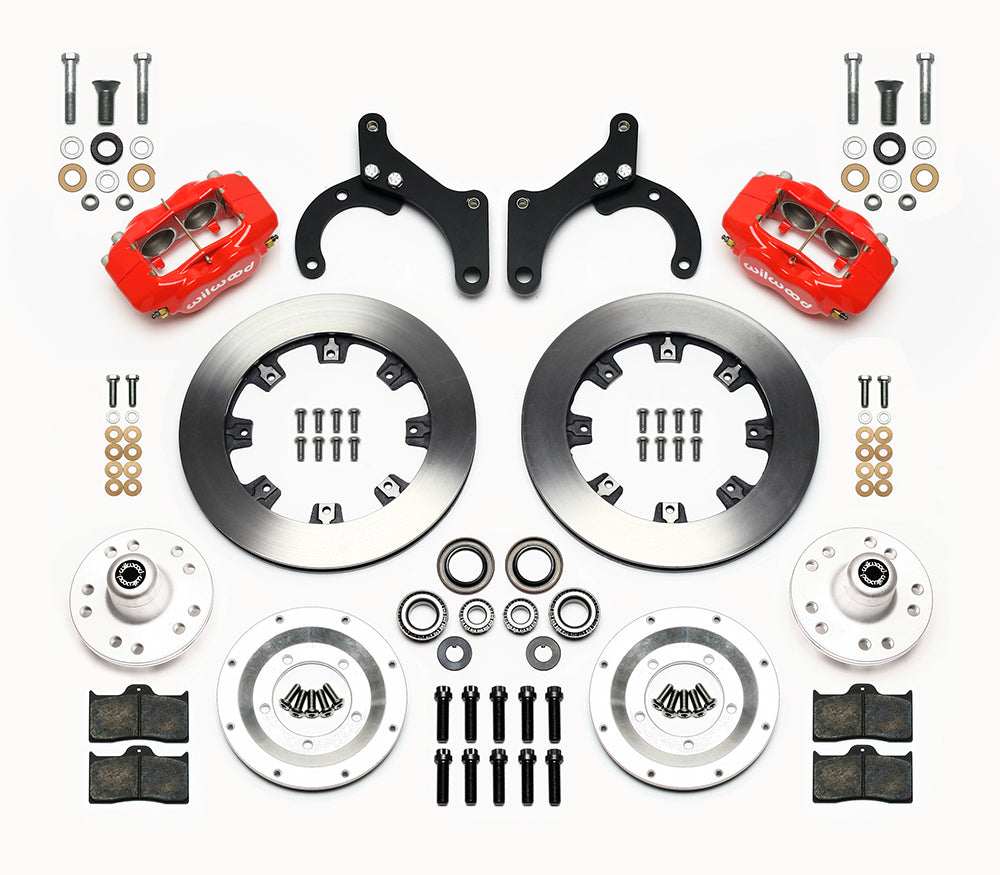

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Check spindle and bearing dimensions using DS897, then verify wheel seating on the selected hub pattern. The wheel mounting surface moves outward 0.27 inches per side, which should be assessed with the vehicle's tire width and backspacing. Confirm barrel and spoke clearance before choosing hydraulic hoses. The master cylinder, pedal arrangement and rear brakes require a complete system assessment when converting from the original brakes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
