Wilwood Red 12.19-Inch Drilled Front Disc & Hub Kit, Chevrolet Sedan Delivery/El Camino/Corvette/Nomad/Kingswood/Parkwood/Brookwood/Biscayne/Impala/Bel Air (1959–1964)

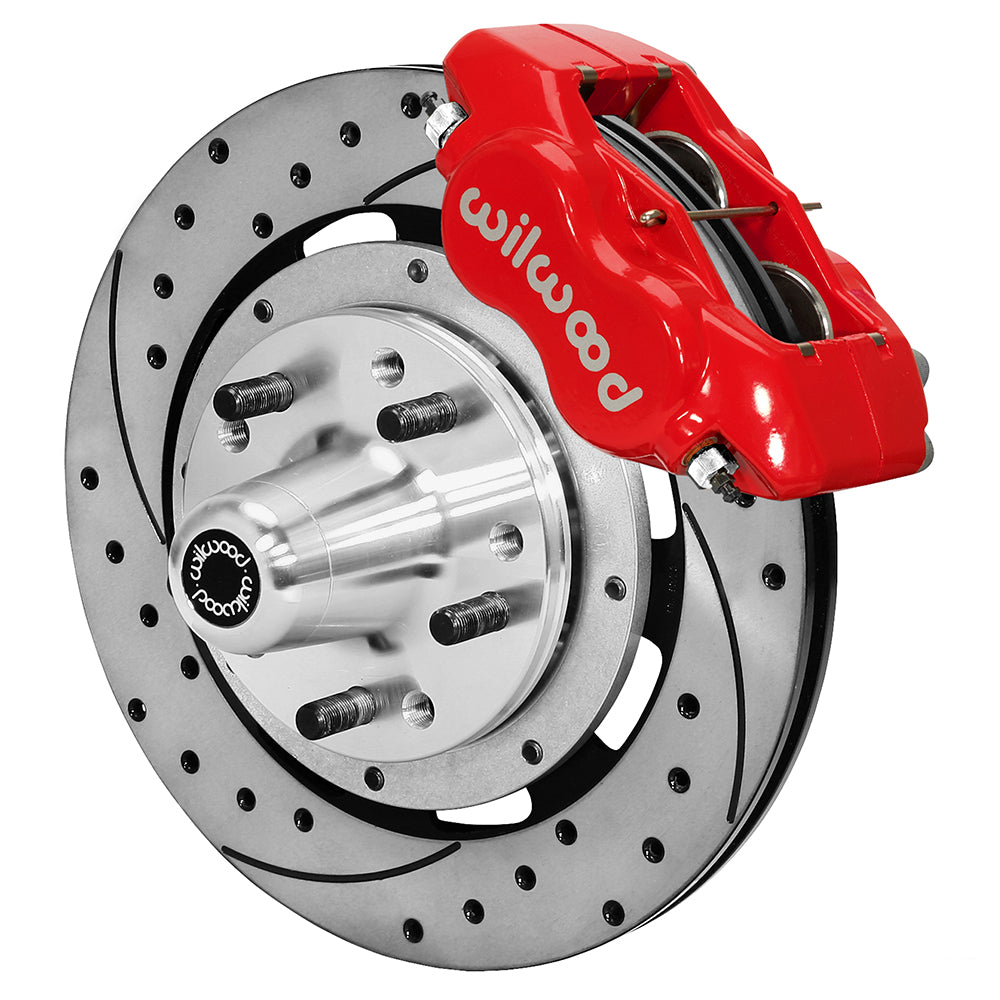

This Wilwood conversion brings red Dynalite calipers and 12.19-inch SRP rotor rings to the stated early Chevrolet front spindles. Replacement hubs and brackets position the four-piston calipers and vented rotors as a matched assembly. The application includes specific full-size Chevrolet and early Corvette configurations; inspect the existing spindle if earlier modifications have altered the factory hardware. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12459-DR
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

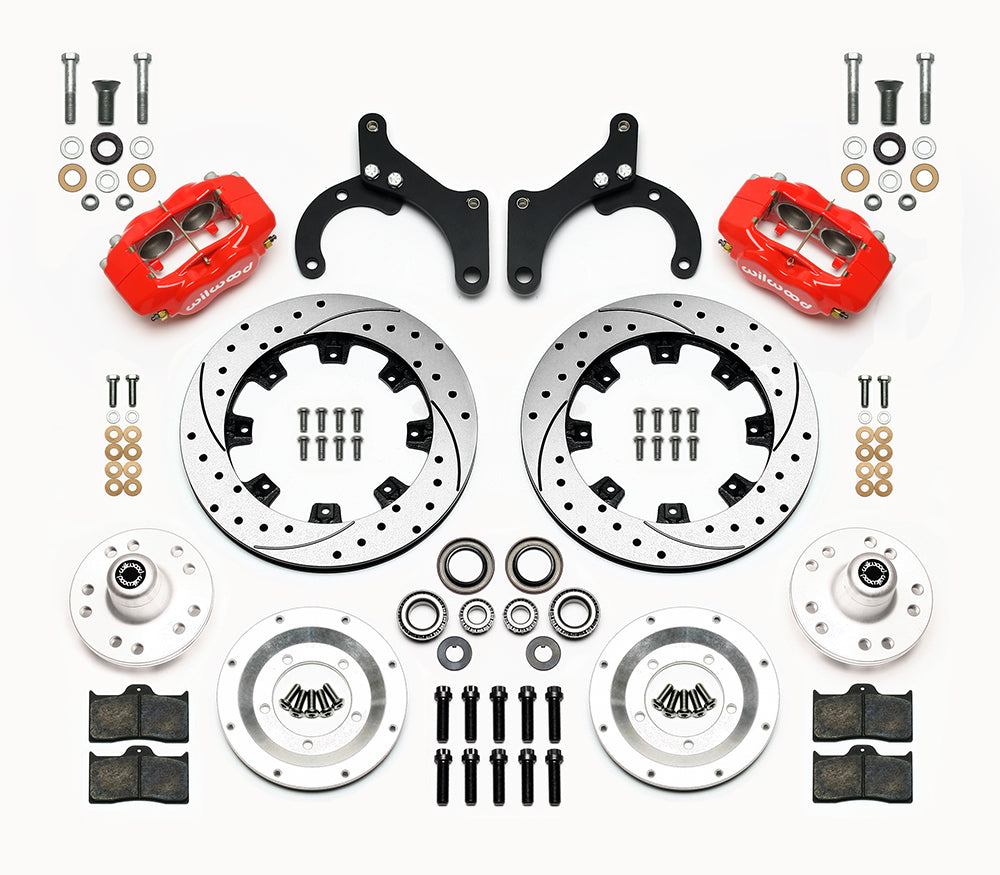

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

For a Sedan Delivery or El Camino, the application is 1959–1960; Brookwood, Kingswood, Nomad and Parkwood coverage ends at 1961. The listed Corvette installation is 1963–1964, while the other passenger-car rows need their own production check. Compare the physical spindle with DS897 before choosing this red-caliper SRP conversion. Four-piston calipers and 12.19-inch rings are supported by replacement hubs, so inspect bearing seating and select the appropriate five-lug pattern. Each wheel mounting face moves outward 0.27 inches, with wheel-support requirements checked separately from the brake envelope. Hoses are ordered to suit the actual vehicle and suspension movement. After alignment and runout checks, establish sufficient master-cylinder displacement and pedal travel with the rear brakes still installed.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
