Wilwood Front 12.19-Inch Plain Disc Conversion for Chevrolet Corvette/Bel Air/Biscayne/Brookwood/Impala/El Camino/Sedan Delivery/Parkwood/Kingswood/Nomad (1959–1964), Black

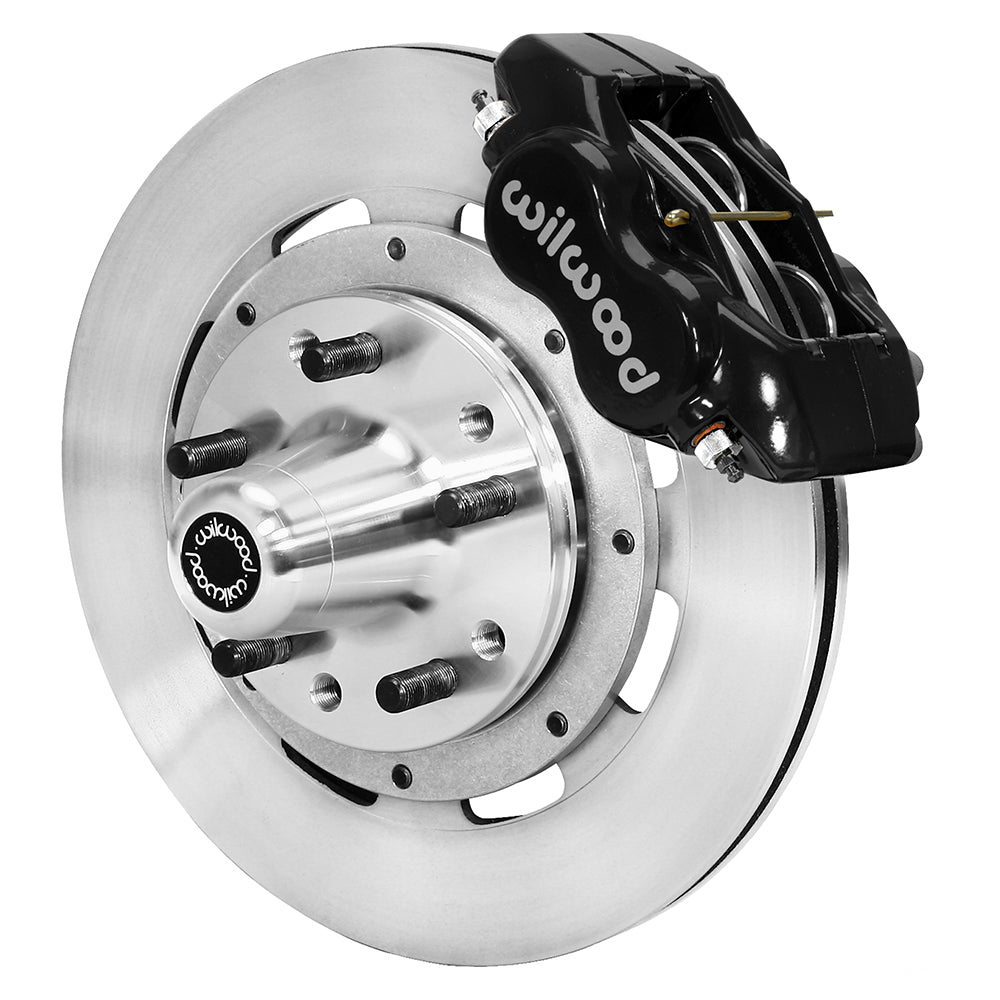

Wilwood's 12.19-inch front kit supplies black Dynalite calipers and plain-face vented rotors for the listed early Chevrolet spindle applications. Replacement hubs support the rotor rings and dedicated brackets locate the four-piston calipers. This package is larger in diameter than the 11-inch conversion and requires its own wheel-clearance check, including the specified early Corvette fitments. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12459
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

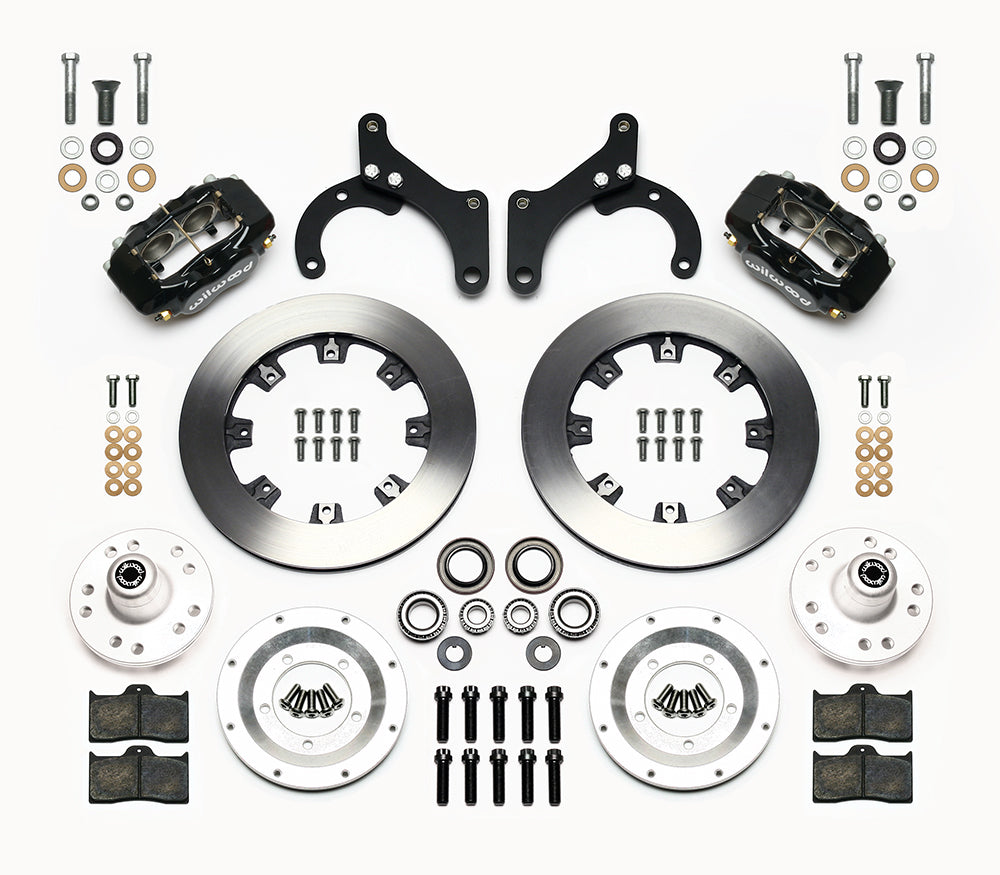

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Use the model-specific production range rather than extending the overall title dates to every Chevrolet. Bel Air, Biscayne and Impala entries run 1959–1964, while Brookwood, Kingswood, Nomad and Parkwood end at 1961; El Camino and Sedan Delivery are 1959–1960, and Corvette is 1963–1964. Inspect the original spindle and compare the bearings and caliper bracket with DS897 before selecting the black plain-rotor package. The 12.19-inch rotor needs its own wheel-envelope check. The hub offers the selected five-lug pattern and moves the mounting face outward 0.27 inches per side. Confirm wheel-face support separately from spoke clearance. Choose hydraulic hoses by the actual steering and suspension movement, then verify suitable pedal travel, master-cylinder capacity and brake balance with the retained rear brakes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
