Wilwood Front Red Caliper & Plain 11-Inch Rotor Package for Chevrolet Impala/Biscayne/Bel Air/Nomad/Parkwood/Brookwood/Kingswood/Sedan Delivery/El Camino/Corvette (1959–1964)

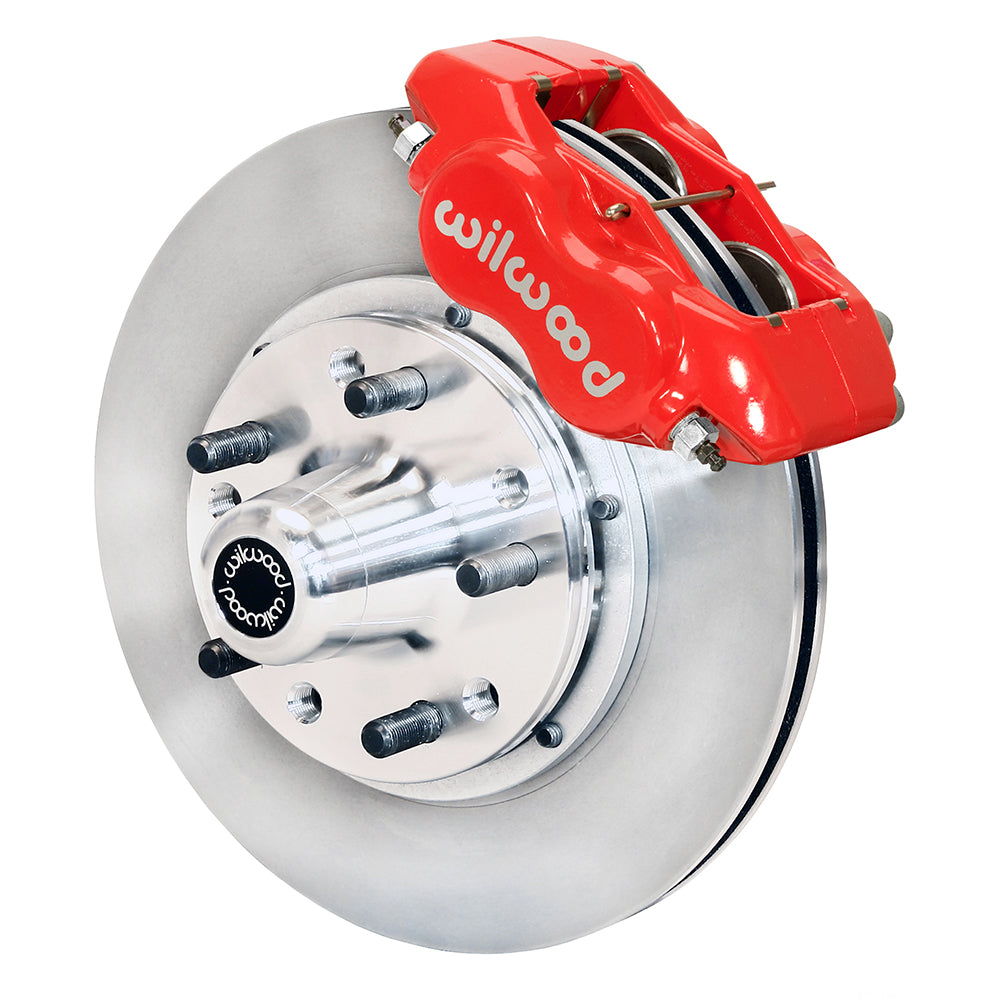

This red-caliper Wilwood front conversion uses plain 11-inch vented rotors with replacement hubs for the listed Chevrolet spindle arrangements. Four-piston Dynalite calipers and supplied brackets replace the original brake hardware. Verify the early Corvette and full-size-car application conditions individually, since a modified spindle or previous disc conversion can change the required package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12458-R
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 30 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 14 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is supplied with this kit.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

The application separates 1959–1960 El Camino and Sedan Delivery from the 1959–1961 Brookwood, Kingswood, Nomad and Parkwood entries; Corvette coverage is 1963–1964. Use the individual row before comparing the installed Chevrolet spindle with DS896. The plain 11-inch ring and red Dynalite caliper share the supplied replacement-hub arrangement, with a 0.27-inch outward wheel-position change per side. Confirm the chosen five-lug pattern, bearings and retained spindle hardware before assembling the conversion. The required wheel-support spacer condition is separate from the caliper-envelope check: verify both seating on the hub face and clearance around the caliper. Select hoses for steering and suspension movement, then assess the master cylinder and rear brakes for suitable hydraulic volume and balance.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
