Wilwood Red Front Dynalite Disc Kit, Chevrolet Corvette/El Camino/Sedan Delivery/Brookwood/Kingswood/Nomad/Parkwood/Bel Air/Biscayne/Impala (1959–1964), 11-Inch Drilled Rings

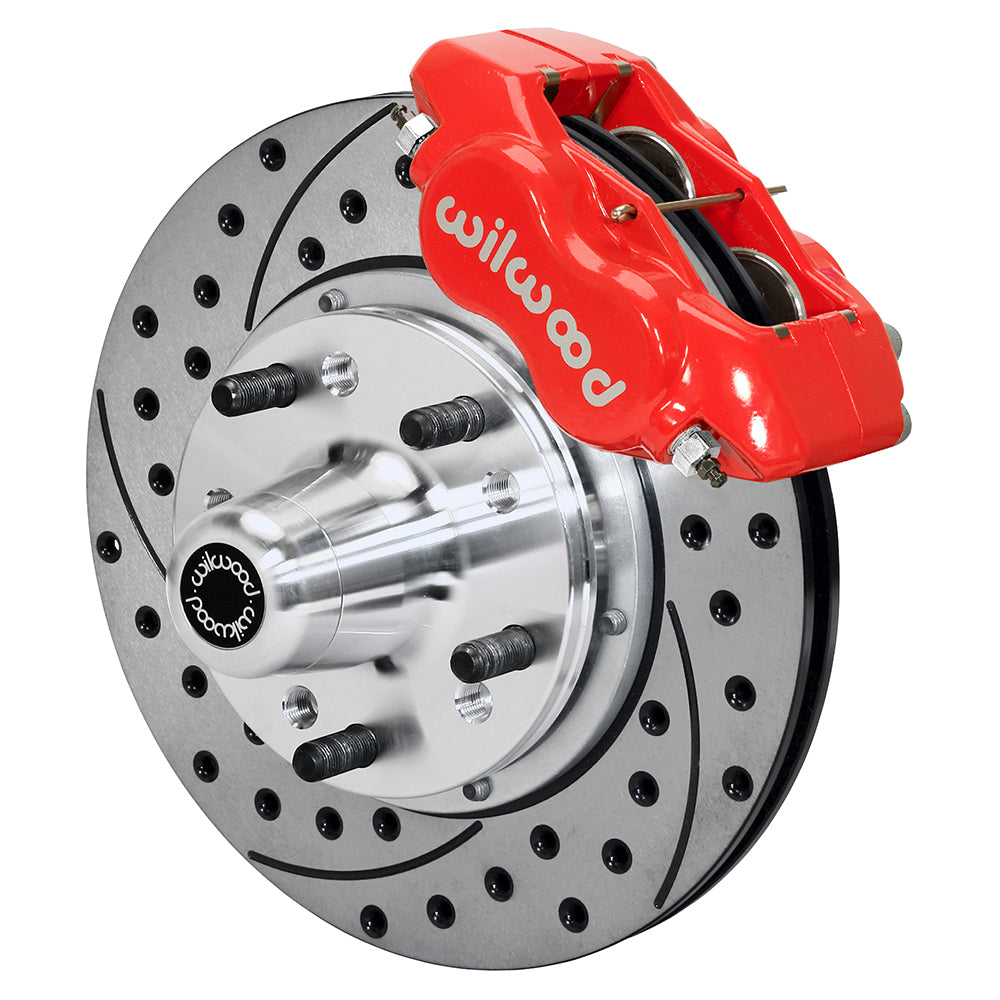

Wilwood pairs red four-piston calipers with 11-inch drilled/slotted rotors in this front hub conversion for the specified Chevrolet cars. Replacement hubs locate the vented rings on the matching original spindle. The package is selected by model, production year and spindle configuration, including the particular 1963–1964 Corvette entries rather than all Corvette brake systems. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12458-DR
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 30 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

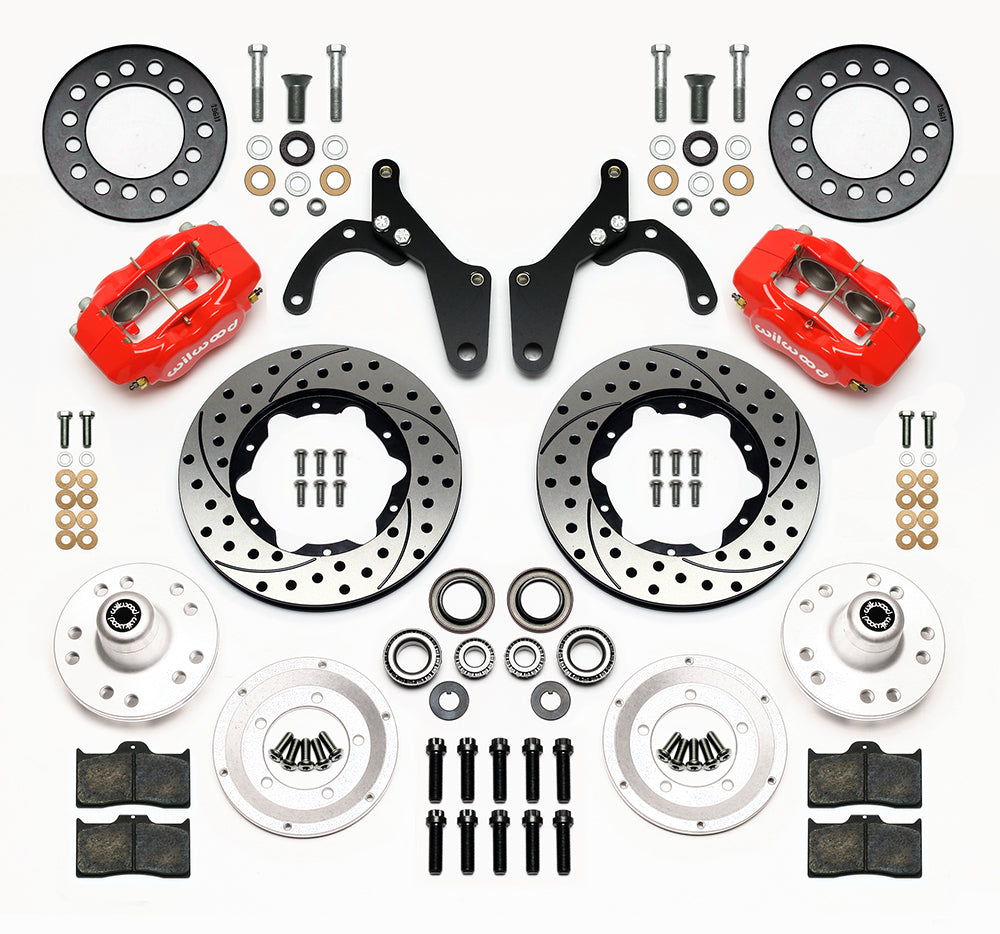

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 14 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is supplied with this kit.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Confirm mounting and bearing dimensions using DS896. The new hub position adds 0.27 inches per side, so check tire/fender space with the actual wheel offset. Both the barrel and spokes must clear the assembled caliper. Choose suitable hydraulic hoses separately and review master-cylinder displacement and front/rear balance; the kit provides the brake hardware rather than every component of a drum-to-disc hydraulic conversion.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
