Wilwood Black Dynalite Front Brake Conversion for Chevrolet Bel Air/Biscayne/Impala/Corvette/Brookwood/El Camino/Kingswood/Nomad/Parkwood/Sedan Delivery (1959–1964), 11-Inch Plain Rotors

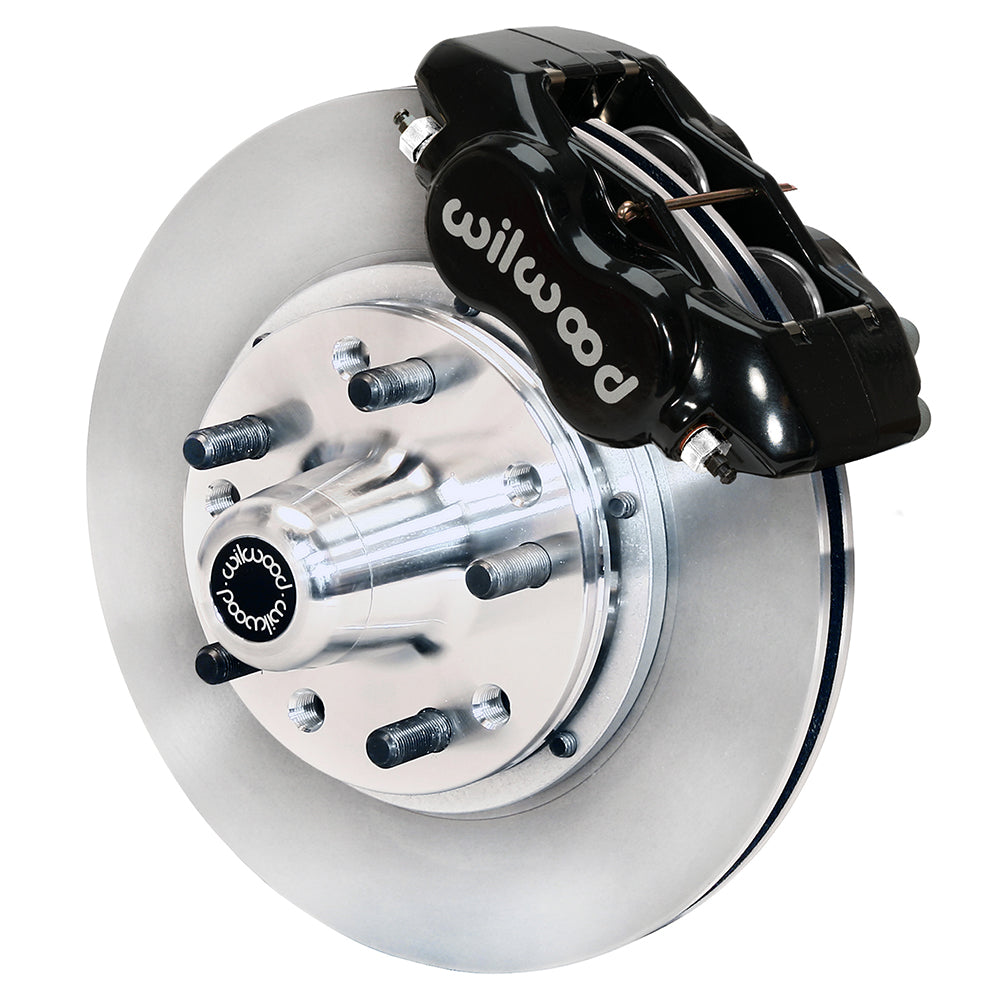

This Wilwood front package converts the listed early Chevrolet drum-spindle cars and 1963–1964 Corvette configurations to black four-piston Dynalite brakes. Plain 11-inch vented rotors and replacement hubs form the compact rotor assembly. The spindle and bearing arrangement must match the application rather than being assumed from the Chevrolet name or a later brake conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12458
• Type: Forged Dynalite Pro Series Front Brake Kit
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 11.00-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 30 vanes.
• Wheel mounting change from OE: +.27 inches per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

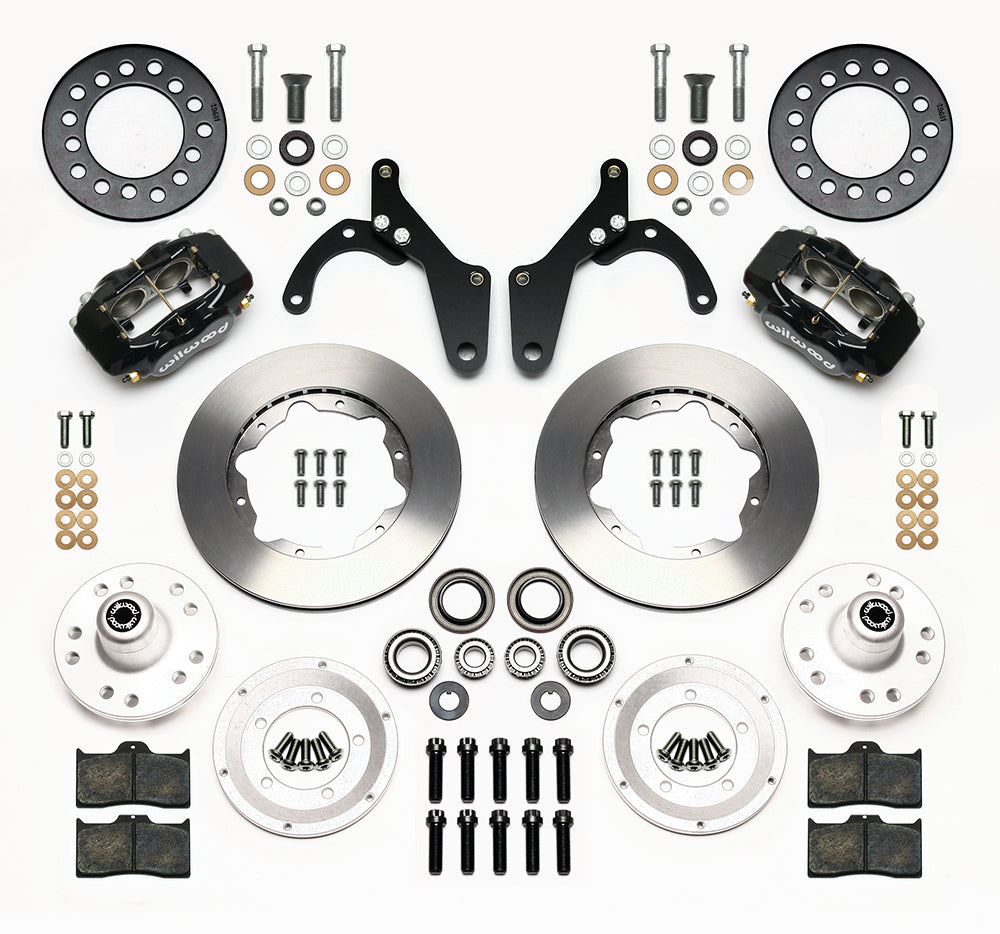

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 14 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is supplied with this kit.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Compare the exact model and year with DS896 and the application table. The supplied hubs move the wheel mounting face outward 0.27 inches per side, affecting tire position and available fender clearance. Confirm the correct five-lug pattern and wheel contact. Check the actual wheel against the caliper diagram; hydraulic hoses are selected separately and the master cylinder must suit the disc-brake conversion.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
