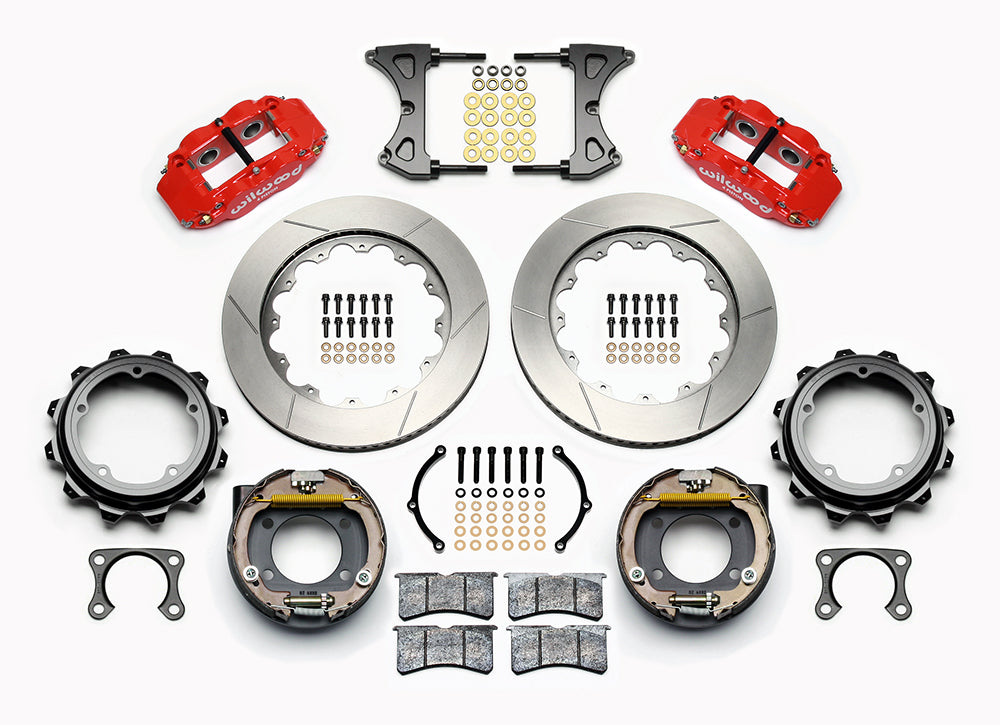

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 14.00-inch slotted rotors and hardware laid out

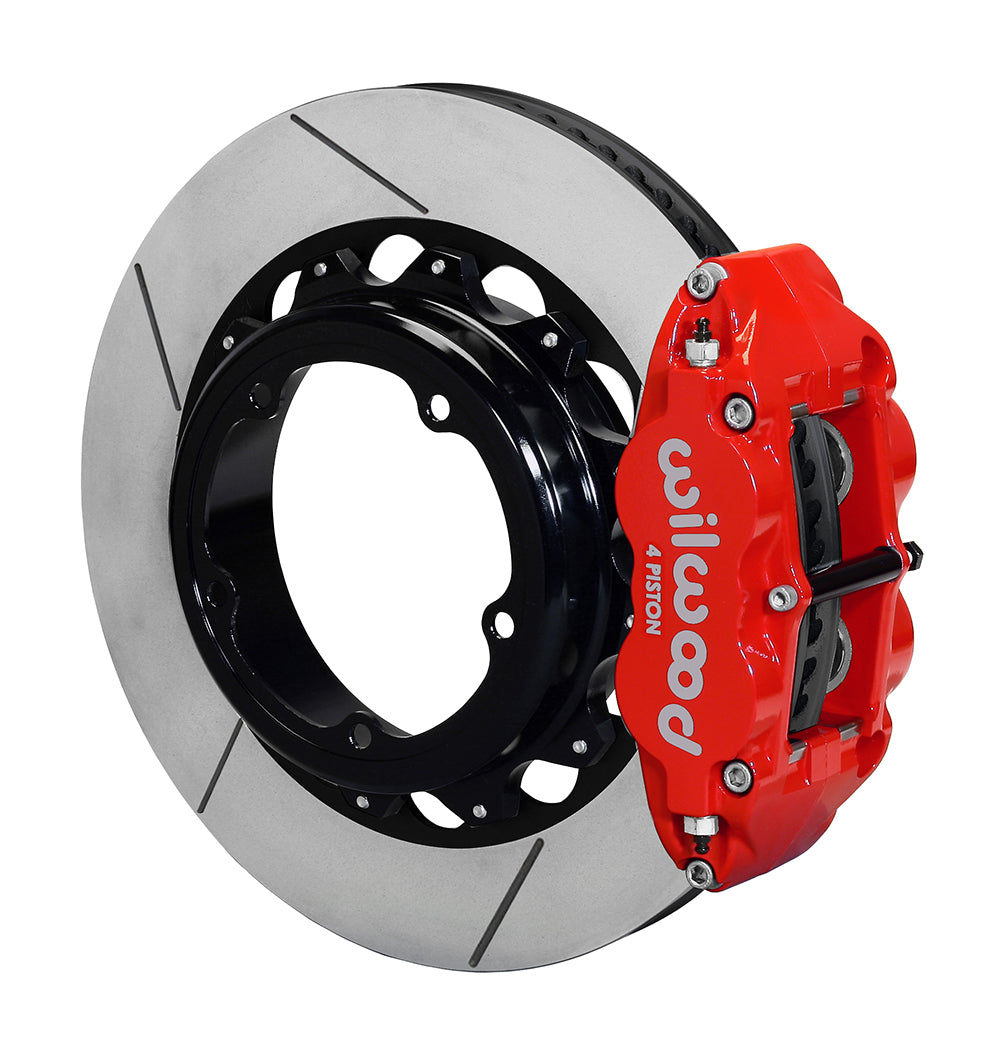

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: red caliper and 14.00-inch slotted rotor in assembled view
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 14.00-inch slotted rotors and hardware laid out
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: red caliper and 14.00-inch slotted rotor in assembled view

Wilwood Strange Floater Rear Big Brake Kit, Red Superlite, 14-Inch GT Rotors

SKU: 140-12436-R

$2,755.59 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood rear conversion uses red Superlite 4R calipers with 14-inch GT slotted rotors for the specified Strange Engineering floater axle. Separate hats and internal parking shoes provide the rotor mounting and mechanical parking function. The larger rings require verified wheel clearance, while the 3.49-inch offset must match the wheel-side axle flange measurement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12436-R
  • Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
  • Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat.
  • Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 14.00-inch diameter × 1.10-inch thickness; GT Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Floater hat mounting pattern: 5 x 5.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Read the dimensional requirements in DS895 and compare every mounting dimension with the installed floater. Confirm bracket seating and the rotor-hat interface before checking caliper alignment. Select hydraulic hoses and parking cables for the chassis rather than treating either as supplied. An 18-inch wheel is only a starting screening dimension; spoke contour and brake-envelope depth must be checked with the actual clearance drawing.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
