Wilwood Red 14-Inch Rear Disc & Parking Brakes, Strange Floater, SRP

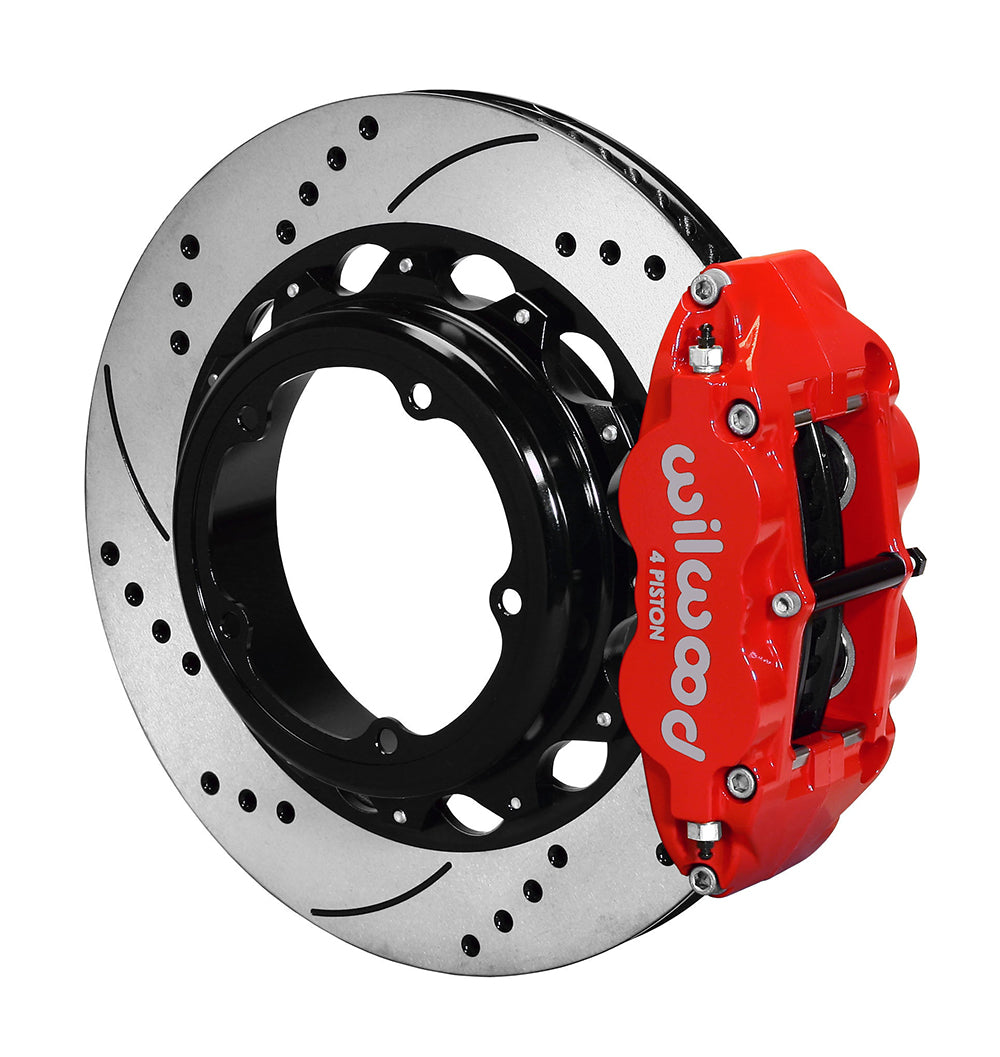

Red radial calipers and 14-inch drilled/slotted Spec-37 rings distinguish this Wilwood rear package for a Strange Engineering floater. Four-piston Superlite service calipers operate independently of the internal mechanical parking shoes. The 3.49-inch axle offset and floater-specific hardware are central to selection; no vehicle-model fit should be assumed from the axle manufacturer alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12436-DR
• Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
• Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
• Rear housing end: Strange Engineering Floater.
• Required axle flange offset: 3.49 inches.
• Floater hat mounting pattern: 5 x 5.75 inches.

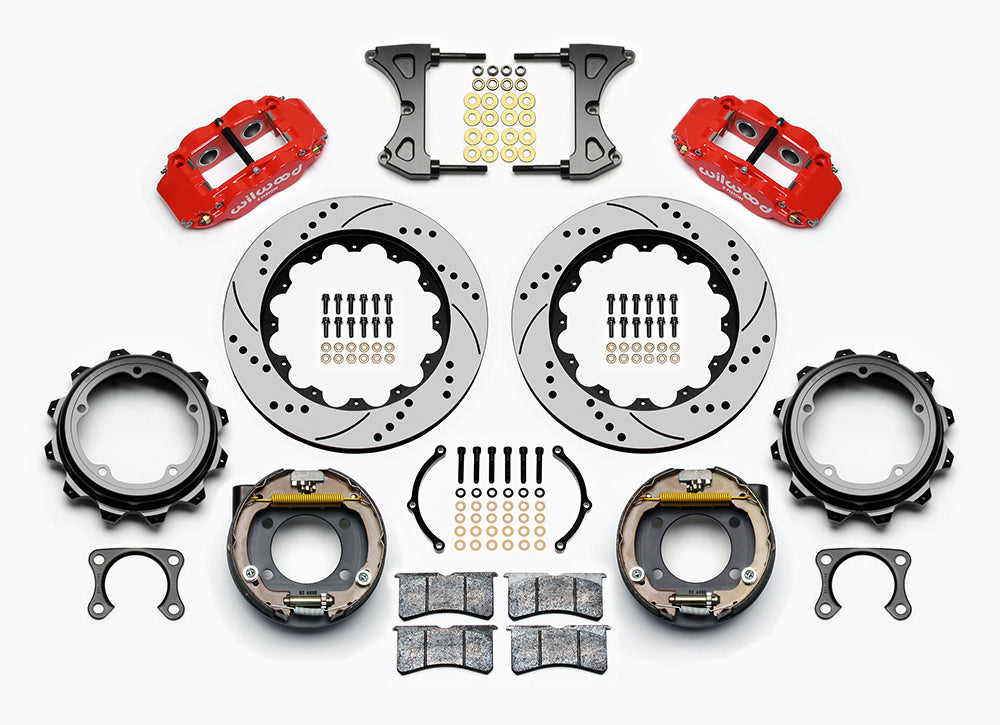

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Parking-brake cables, clevis hardware and adapters are separate.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

The Strange floater must be measured at its actual mounting flange: record upper and lower horizontal hole spacing, vertical spacing, center register and wheel-side axle offset. Compare these measurements with DS895 before any disassembly. The 14-inch rotor uses a separate aluminum hat and 72-curved-vane friction ring; confirm the hat interface and caliper centerline on the installed floater. Wheel clearance is needed around both the radial caliper and the rotor assembly, with 18 inches only a screening size. The internal shoes need separately selected cables, clevises and adapters. Keep mechanical cables clear of the moving suspension and plan the hydraulic hoses independently, then verify front/rear balance for the completed chassis.

Wilwood installation documents: Installation instructions; Technical bulletin.
