Product details

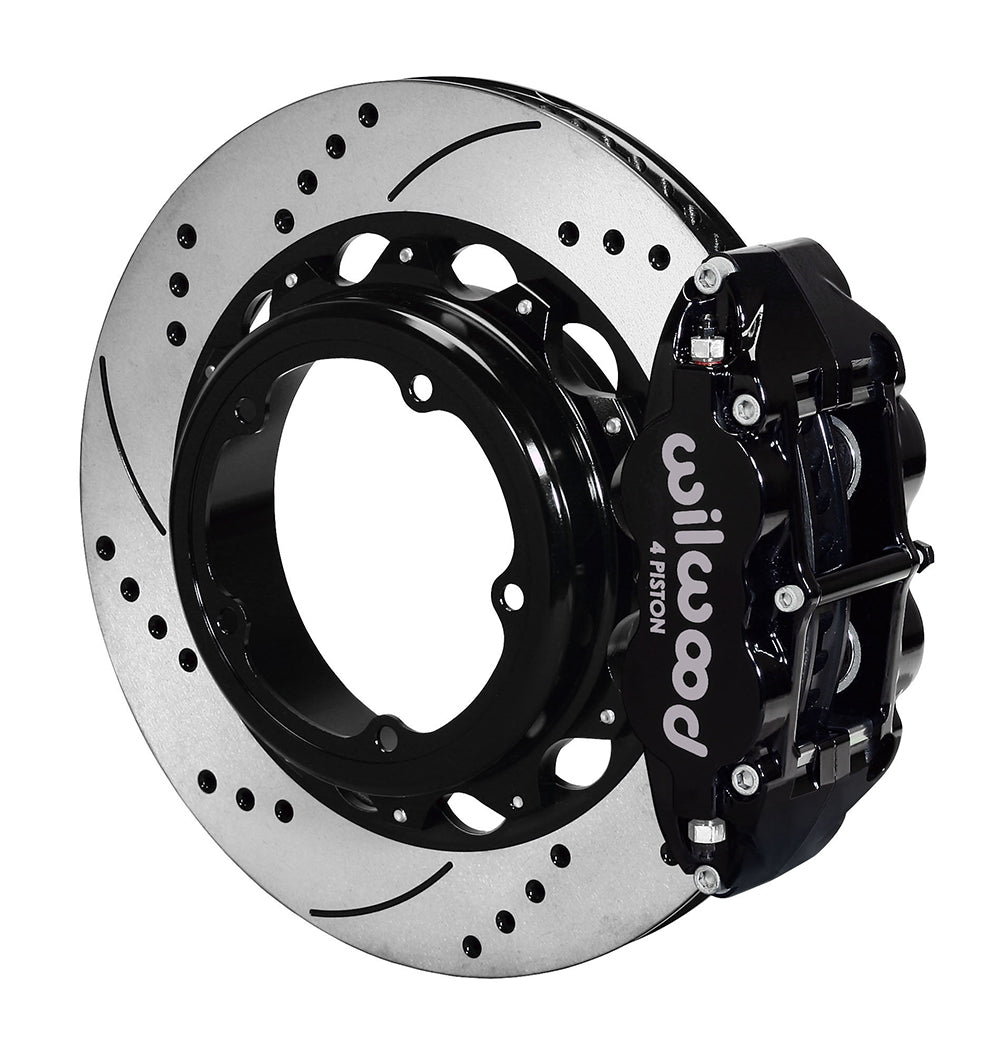

This Wilwood rear floater conversion supplies black Superlite calipers and 14-inch SRP rotor rings with 72 curved cooling vanes. Separate hats incorporate the internal parking-brake arrangement for the specified Strange Engineering 3.49-inch-offset axle. It is a larger-diameter rear package whose mounting and wheel clearance need to be established from the actual floater measurements. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-12436-D
- Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
- Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat.
- Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
- Included pad compound: BP-10.
- Rotors: 14.00-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
- Rear housing end: Strange Engineering Floater.
- Required axle flange offset: 3.49 inches.
- Floater hat mounting pattern: 5 x 5.75 inches.

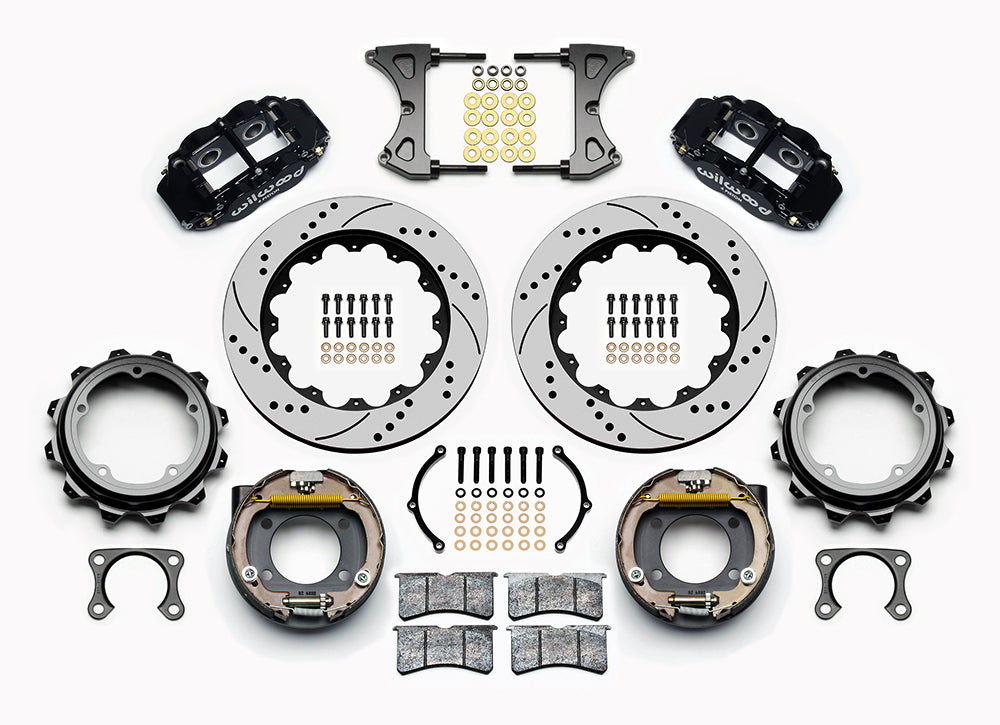

- Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
- Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
- Parking-brake cables, clevis hardware and adapters are separate.
- Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
Fitment & Compatibility
Use DS895 to compare the housing-end mounting holes, register and rotor centerline with the vehicle's axle. The specified floater interface must match even when other axle components have been changed. Assess the chosen wheel's barrel diameter and spoke depth, then check parking-shoe and service-caliper alignment. Plan hydraulic hoses and cable connections separately, with correct system balance established before commissioning.
Wilwood installation documents: Installation instructions; Technical bulletin.
PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
