Product details

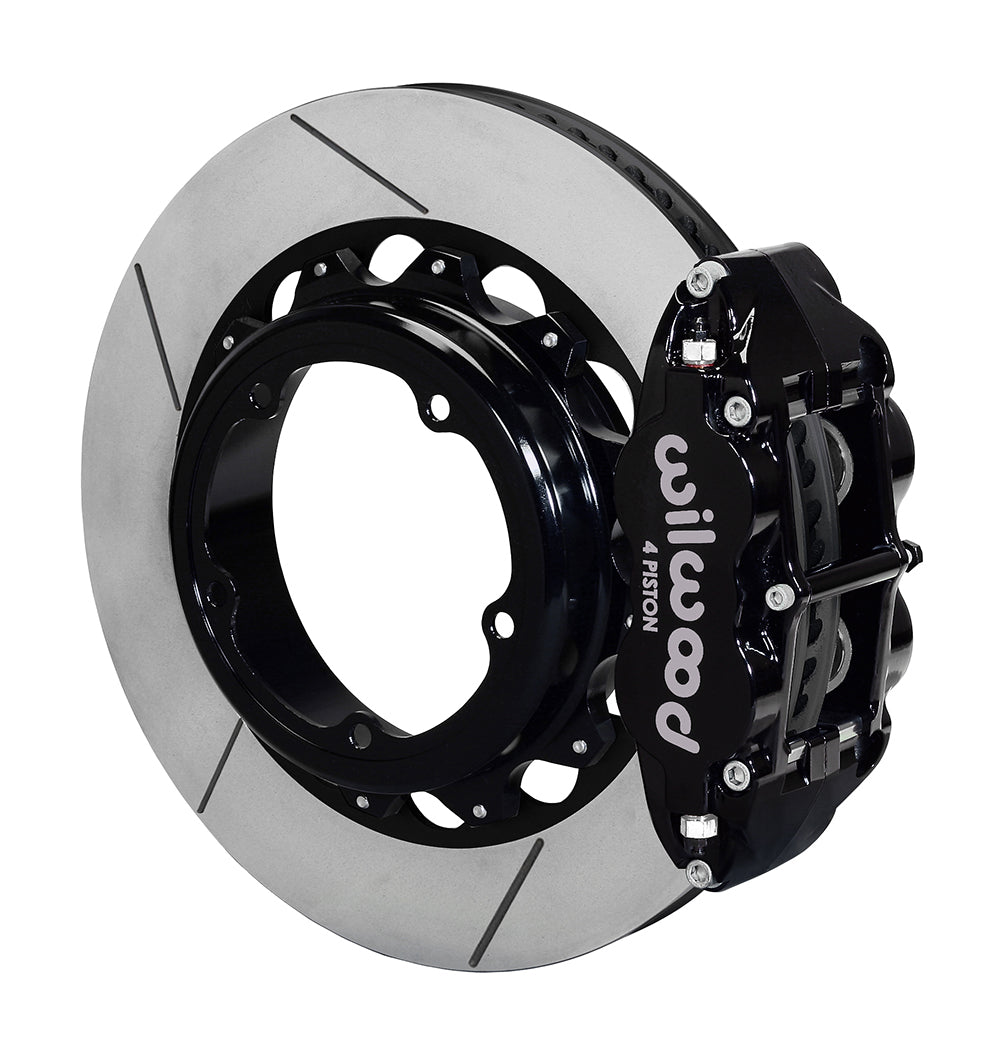

Wilwood combines 14-inch GT slotted rotors with black Superlite 4R calipers in this rear parking-brake package for the specified Strange floater. The Spec-37 rings use 72 curved vanes and attach to separate hats. Internal shoes provide parking actuation, while the 3.49-inch axle offset determines how the service calipers align with the rotors. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 140-12436
- Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
- Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat.
- Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
- Included pad compound: BP-10.
- Rotors: 14.00-inch diameter × 1.10-inch thickness; GT Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
- Rear housing end: Strange Engineering Floater.
- Required axle flange offset: 3.49 inches.
- Floater hat mounting pattern: 5 x 5.75 inches.

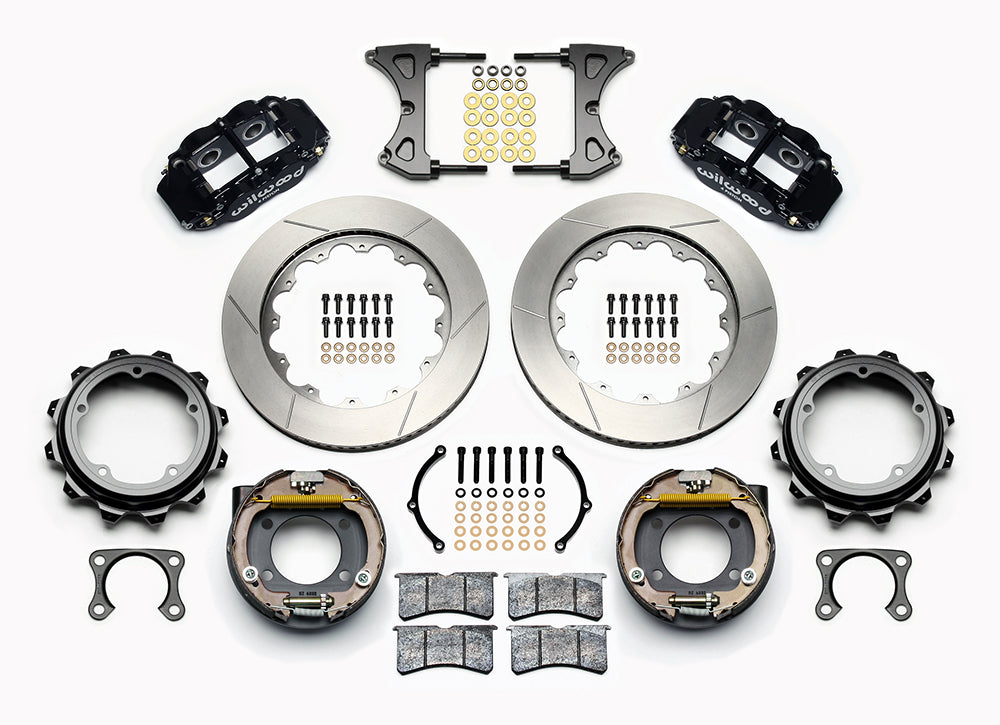

- Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
- Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
- Parking-brake cables, clevis hardware and adapters are separate.
- Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
Fitment & Compatibility
Match the floater flange, bearing/register dimensions and offset to DS895 and the axle worksheet. An 18-inch wheel screening size cannot confirm spoke clearance by itself; inspect the full radial and axial outline. Check the hat mounting interface on the existing floater assembly before installation. Hydraulic hoses and mechanical parking-brake connections are separate and need suitable clearance throughout suspension movement.
Wilwood installation documents: Installation instructions; Technical bulletin.
PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
