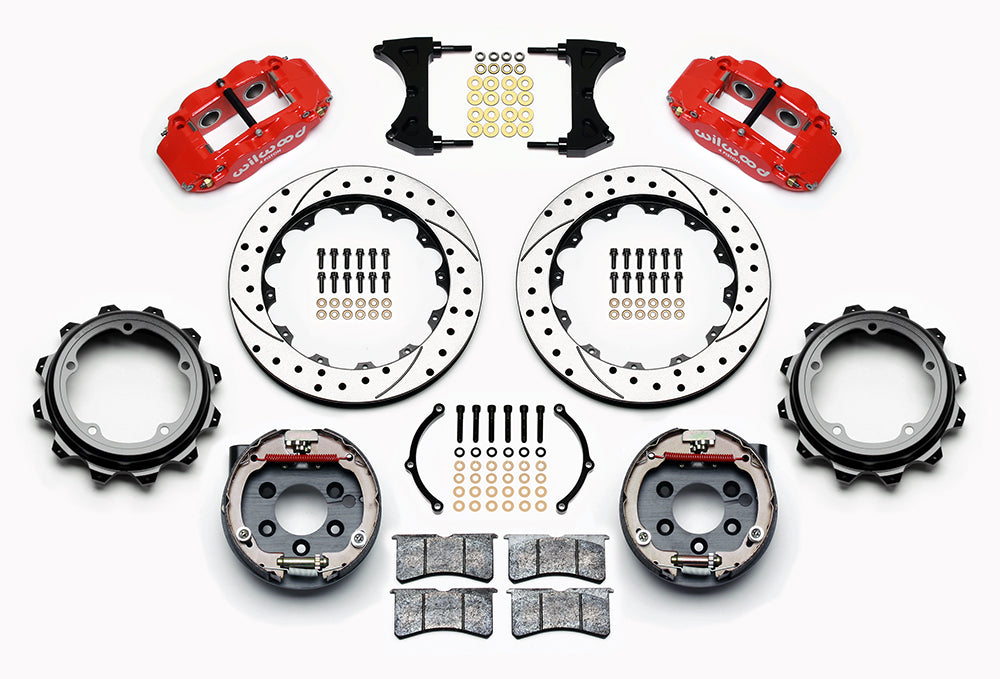

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 12.88-inch drilled and slotted rotors and hardware laid out

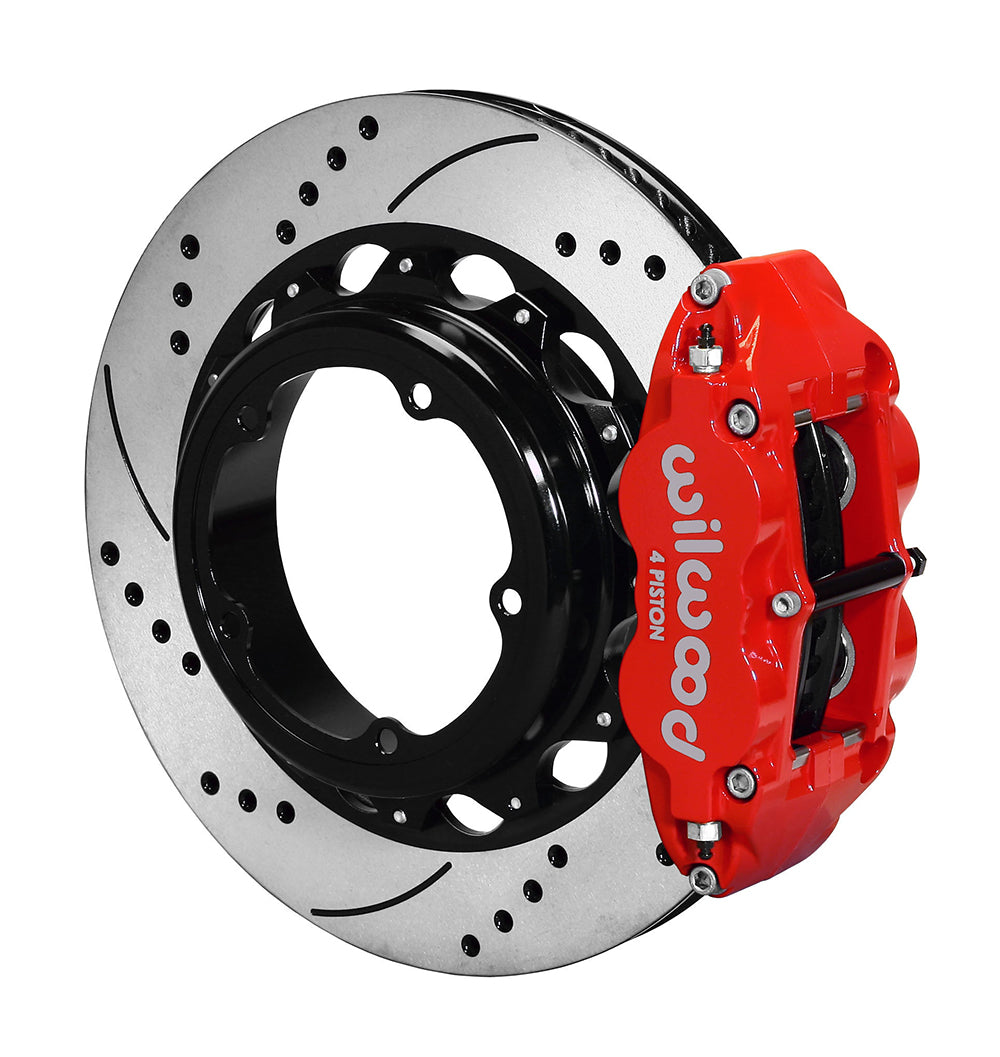

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: red caliper and 12.88-inch drilled and slotted rotor in assembled view
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 12.88-inch drilled and slotted rotors and hardware laid out
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: red caliper and 12.88-inch drilled and slotted rotor in assembled view

Wilwood Red Superlite Rear Parking Brake Package for Strange Floaters, SRP 12.88-Inch Rotors

SKU: 140-12435-DR

$2,545.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red four-piston calipers and 12.88-inch drilled/slotted rotor rings identify this Wilwood Strange Engineering floater package. The Superlite 4R service calipers mount radially, with parking shoes enclosed in the rotor-hat assembly. Selection depends on the 3.49-inch axle offset and the specified floater mounting arrangement, including its register and flange pattern. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12435-DR
  • Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
  • Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Red Powder Coat.
  • Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.88-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Floater hat mounting pattern: 5 x 5.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the axle measurements with DS894 before the old brakes are disassembled. Confirm both rotor location and bracket seating; a floater from another series is not established as compatible by the Strange name alone. Test the actual wheel for radial and spoke clearance. Hydraulic hoses, parking cables and their adapters are separate, with cable travel and front/rear hydraulic balance checked for the finished chassis.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
