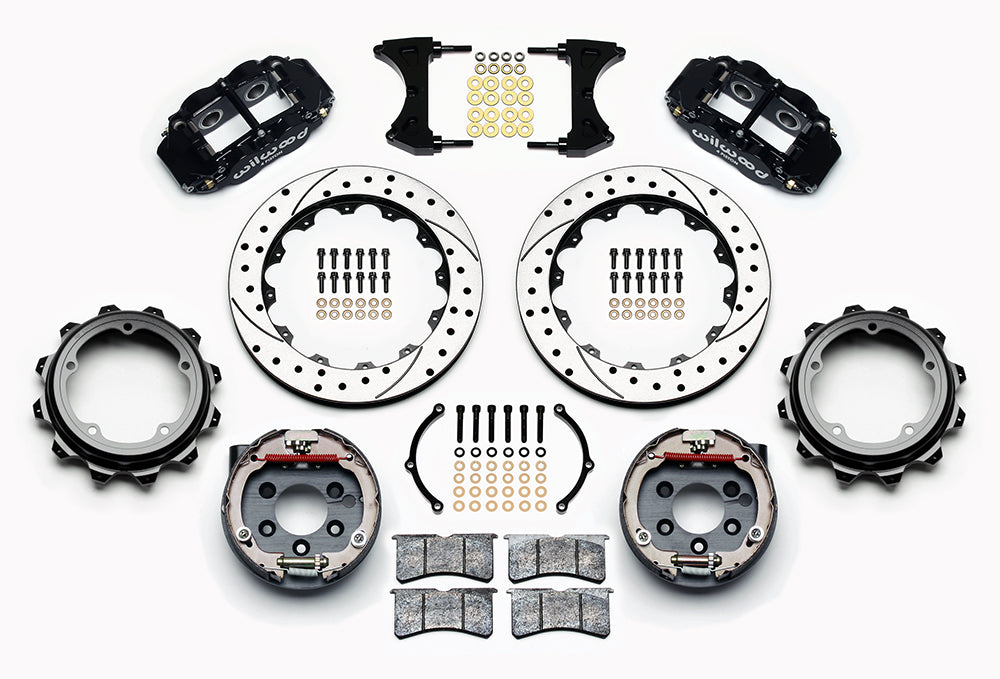

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.88-inch drilled and slotted rotors and hardware laid out

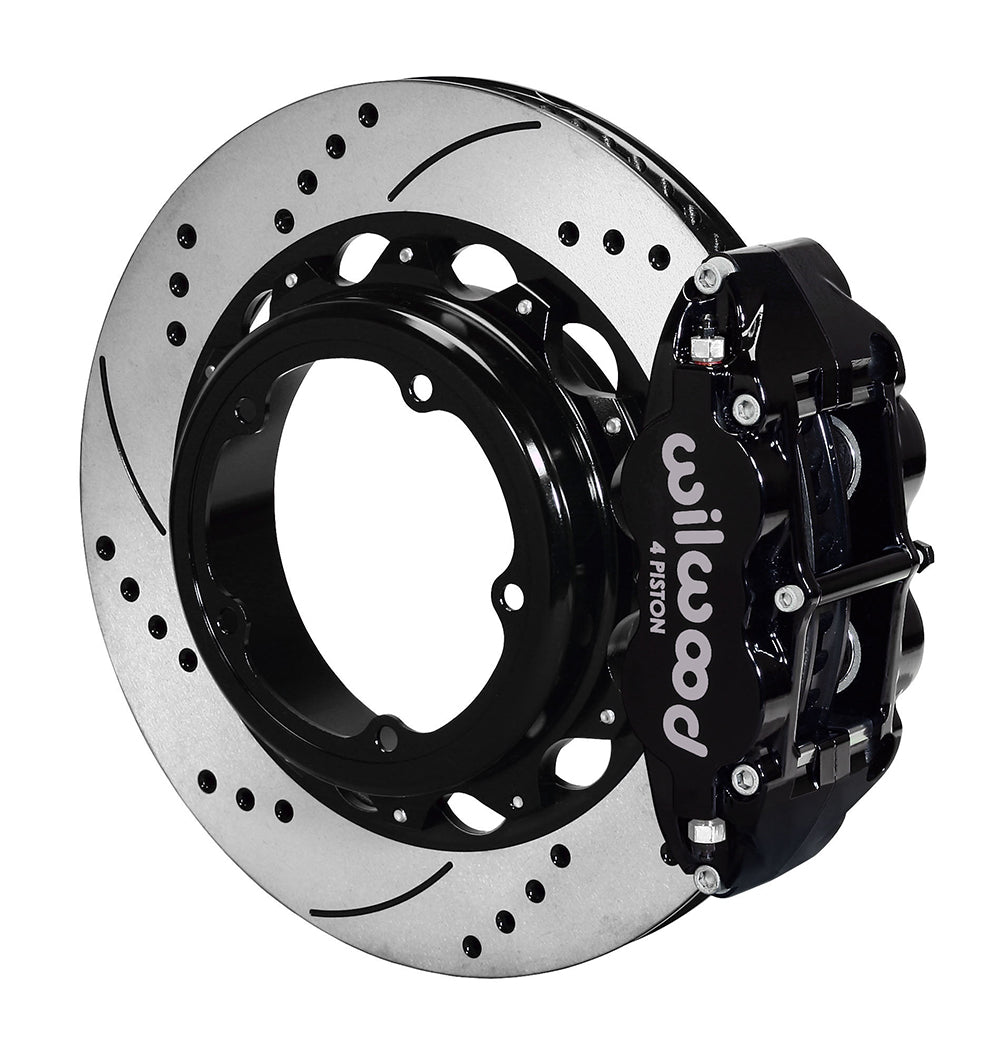

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.88-inch drilled and slotted rotor in assembled view
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.88-inch drilled and slotted rotors and hardware laid out
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.88-inch drilled and slotted rotor in assembled view

Wilwood Strange Floater Rear Brake Conversion, 12.88-Inch SRP Rotors, Black

SKU: 140-12435-D

$2,545.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood rear conversion uses drilled/slotted 12.88-inch Spec-37 rotors with black Superlite 4R calipers. The Strange Engineering floater application requires 3.49-inch axle offset, and the supplied internal shoes provide a separate mechanical parking brake. Its 48-vane rotor rings, hats and brackets form a matched assembly rather than a universal rear brake package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12435-D
  • Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
  • Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat.
  • Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.88-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Floater hat mounting pattern: 5 x 5.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Measure the housing bolt spacing and register as well as the wheel-side flange offset. DS894 shows the bracket/backing-plate relationship and required wheel envelope. Confirm the floater hub interface before checking caliper alignment and rotor runout. Select suitable hydraulic hoses separately and plan parking-cable attachments without tight bends or interference through suspension movement. The wheel's spoke profile remains a separate clearance check.

Wilwood installation documents: Installation instructions; Technical bulletin.
