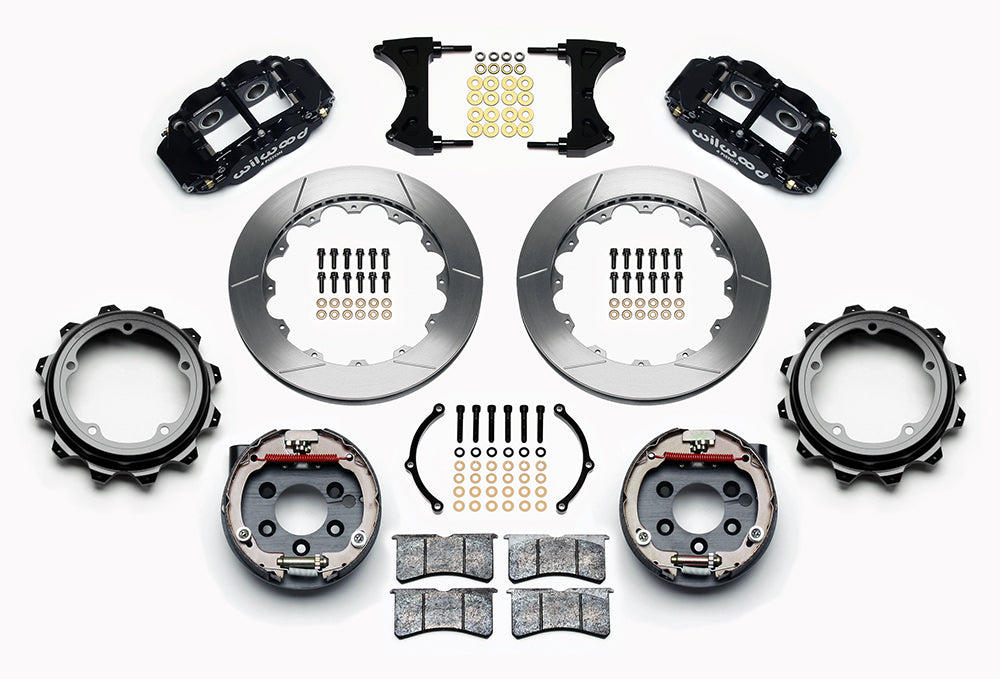

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.88-inch slotted rotors and hardware laid out

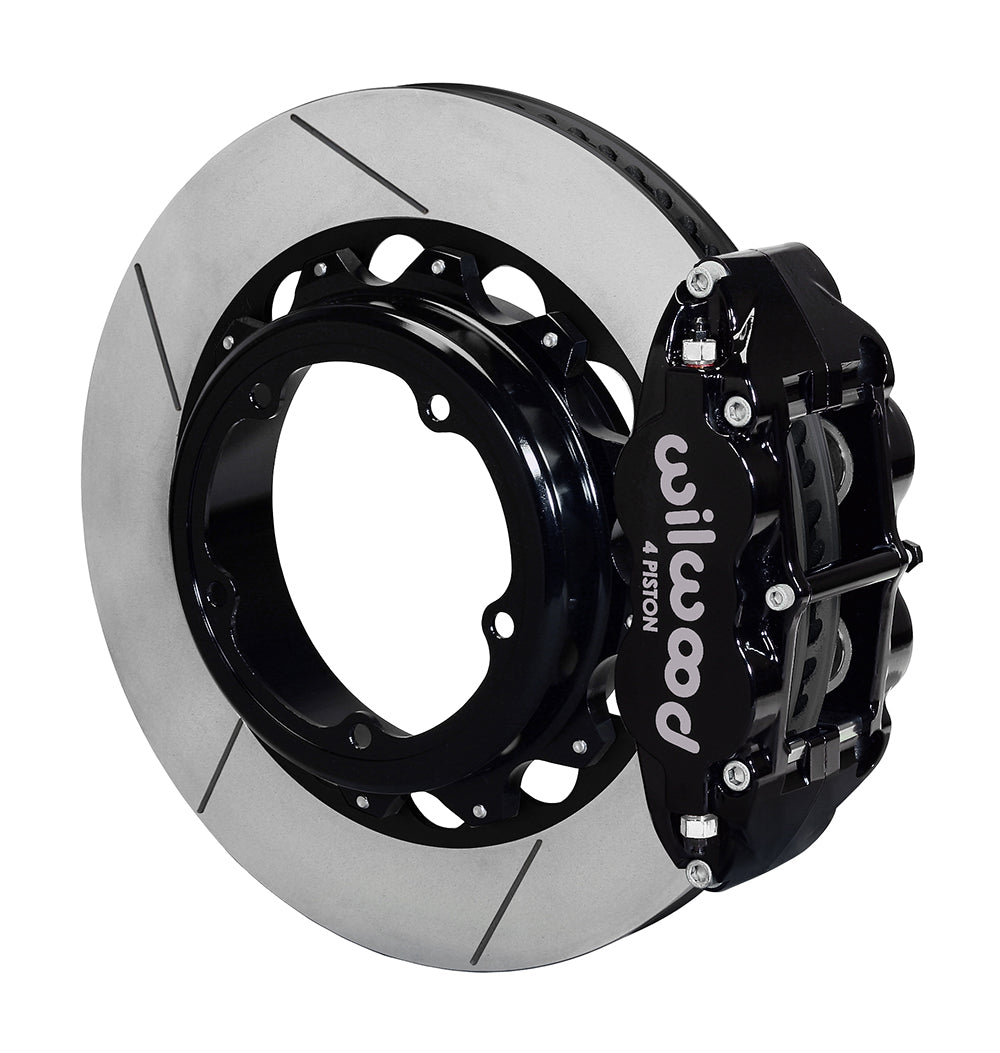

Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.88-inch slotted rotor in assembled view
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.88-inch slotted rotors and hardware laid out
Wilwood rear Forged Narrow Superlite 4R kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.88-inch slotted rotor in assembled view

Wilwood Rear Superlite 4R Parking Brake Kit, Strange Floater, 12.88-Inch GT Rotors, Black Calipers

SKU: 140-12435

$2,545.68 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood's 12.88-inch rear package brings black Superlite 4R calipers and GT slotted rotors to the specified Strange Engineering floater axle. Separate hats carry the 48-curved-vane iron rings, with an internal shoe assembly handling the parking brake. The complete arrangement is selected by the 3.49-inch axle offset and the floater mounting geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12435
  • Type: Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit
  • Calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Black Powder Coat.
  • Caliper bore sizes: 1.25, 1.25 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.88-inch diameter × 1.10-inch thickness; GT Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Floater hat mounting pattern: 5 x 5.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Check the housing-end flange, register and measured offset against DS894 before ordering. The rotor hats attach to the floater arrangement and should not be mistaken for a conventional wheel-pattern conversion. Confirm 17-inch wheel screening clearance with the actual template, including the spokes. Parking cables and hydraulic lines are separate, and the system's hydraulic balance must suit the completed front and rear brakes.
