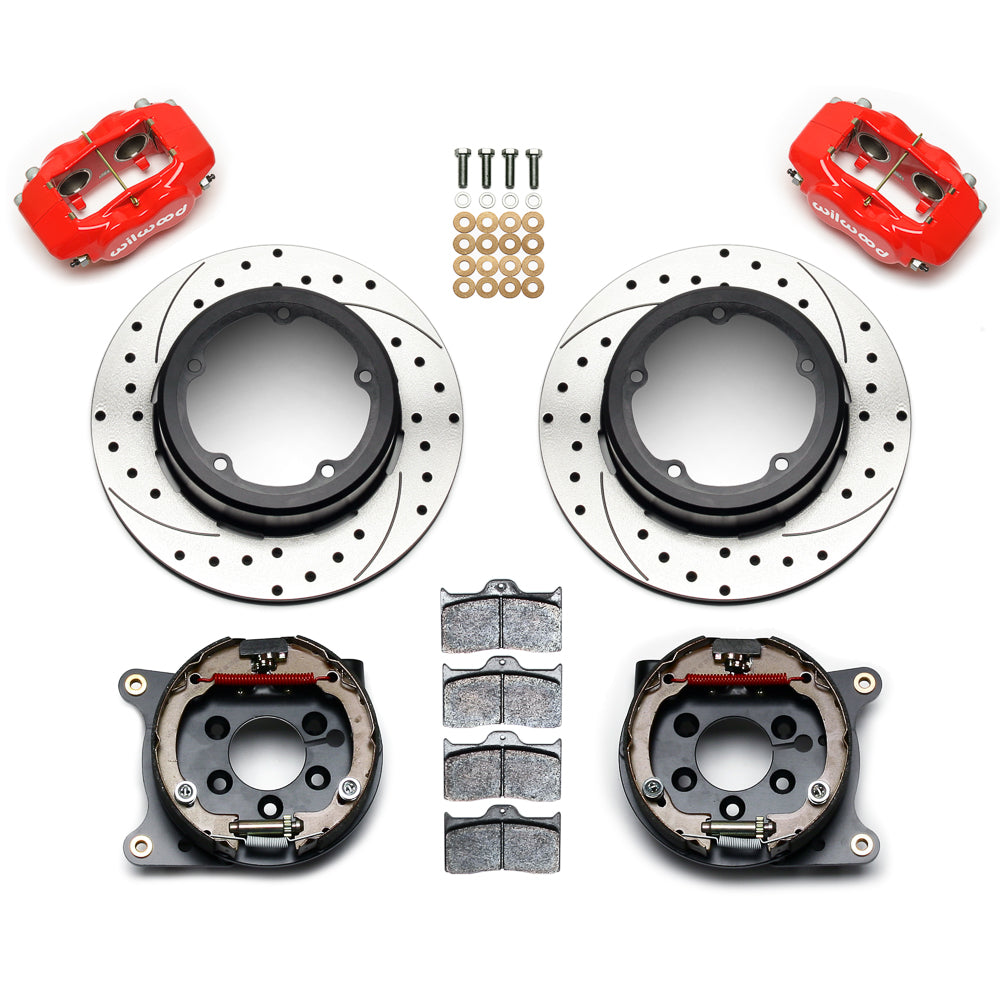

Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 12.19-inch drilled and slotted rotors and hardware laid out

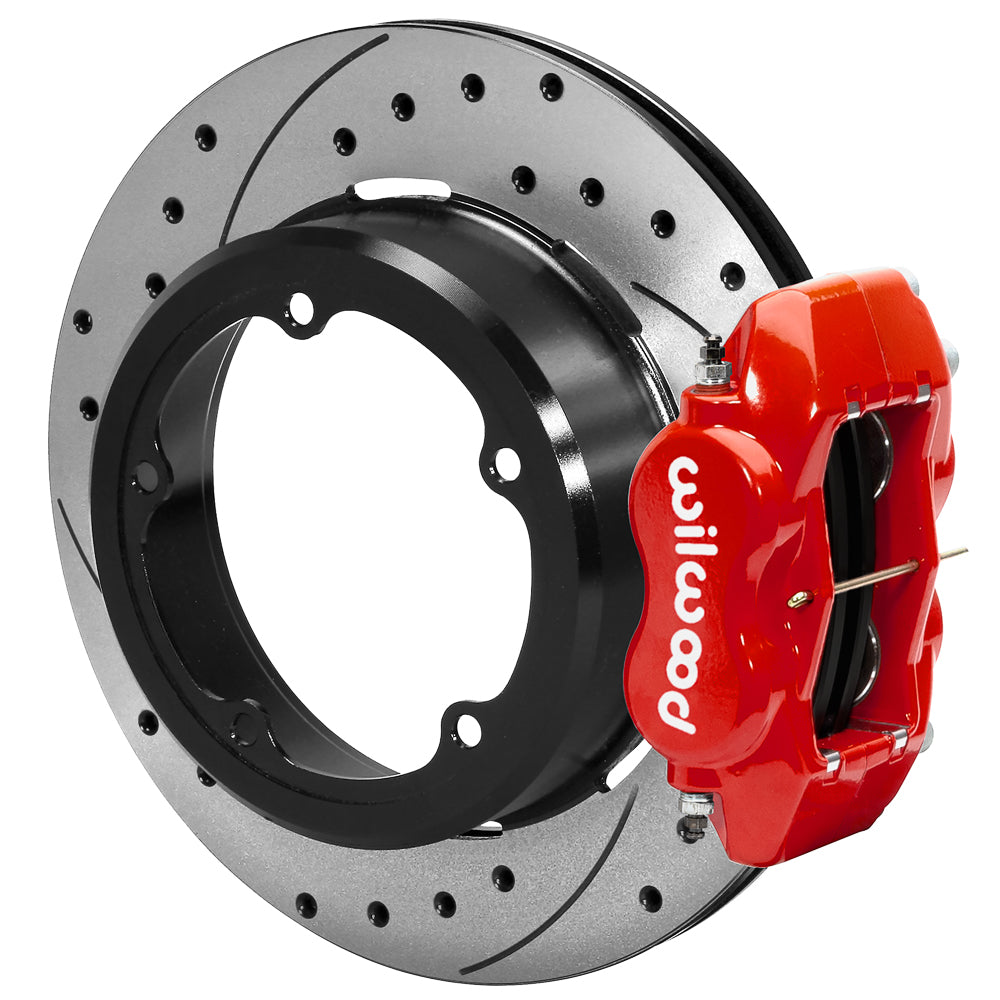

Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: red caliper and 12.19-inch drilled and slotted rotor in assembled view
Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: paired red calipers, 12.19-inch drilled and slotted rotors and hardware laid out
Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: red caliper and 12.19-inch drilled and slotted rotor in assembled view

Wilwood Red Rear Dynalite Disc & Parking Brake Kit, Strange 3.49-Inch-Offset Floater, SRP

SKU: 140-12420-DR

$1,394.58 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red powder-coated Dynalite calipers distinguish this Wilwood rear disc and parking-brake conversion. It supplies 12.19-inch SRP rotors and internal shoe assemblies for the specified Strange Engineering floater with 3.49-inch offset. This is a matched axle-end package, intended to be verified by measurements rather than assigned a vehicle-model fit from an axle brand. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12420-DR
  • Type: Forged Dynalite Rear Parking Brake Kit
  • Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
  • Caliper bore sizes: 1.38, 1.38 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Bolt pattern: 5 x 5.75 in; 5 x 146.05 mm.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Check the housing-end hole spacing and register, and measure from the housing flange to the wheel-side axle face. The supplied backing plates and brackets must seat correctly on that arrangement. DS890 provides the mounting and wheel-clearance dimensions. Keep cable routing as straight as practical and select mechanical connections and hydraulic hoses separately, with full suspension travel and wheel clearance checked before use.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
