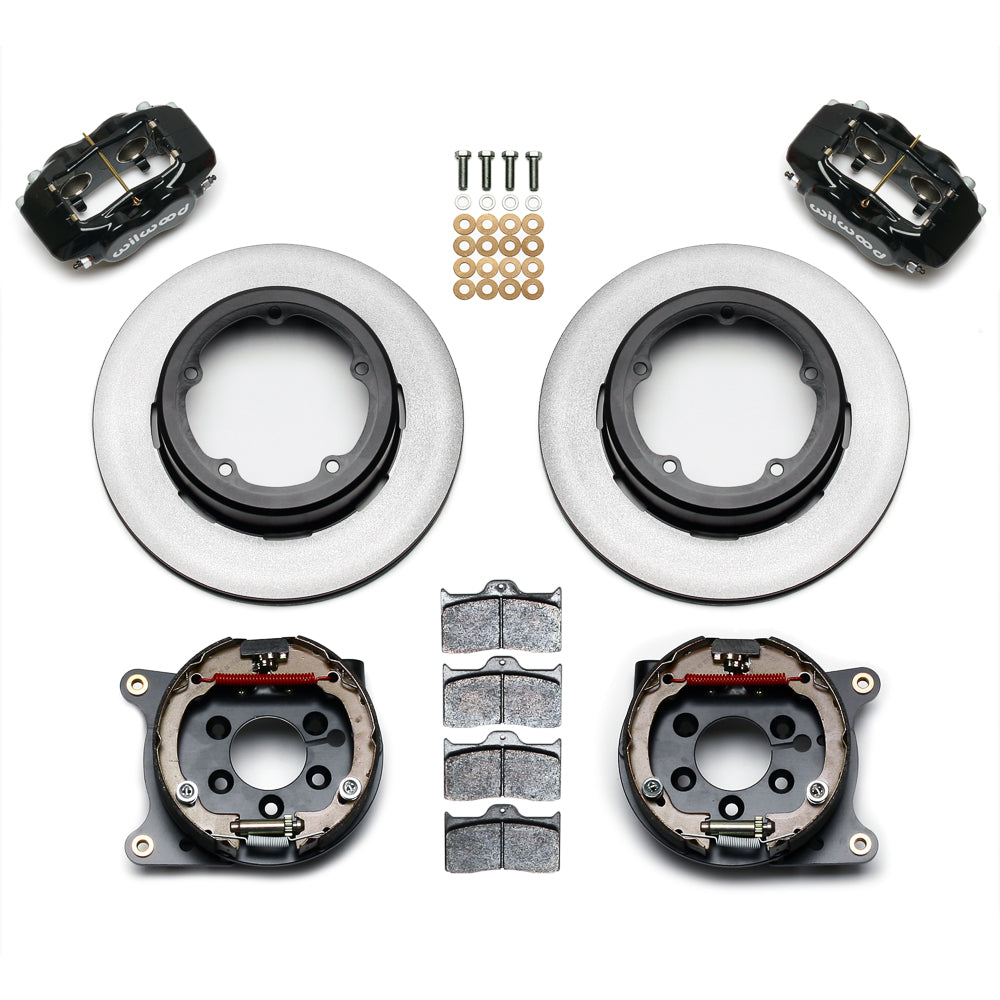

Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.19-inch plain-face rotors and hardware laid out

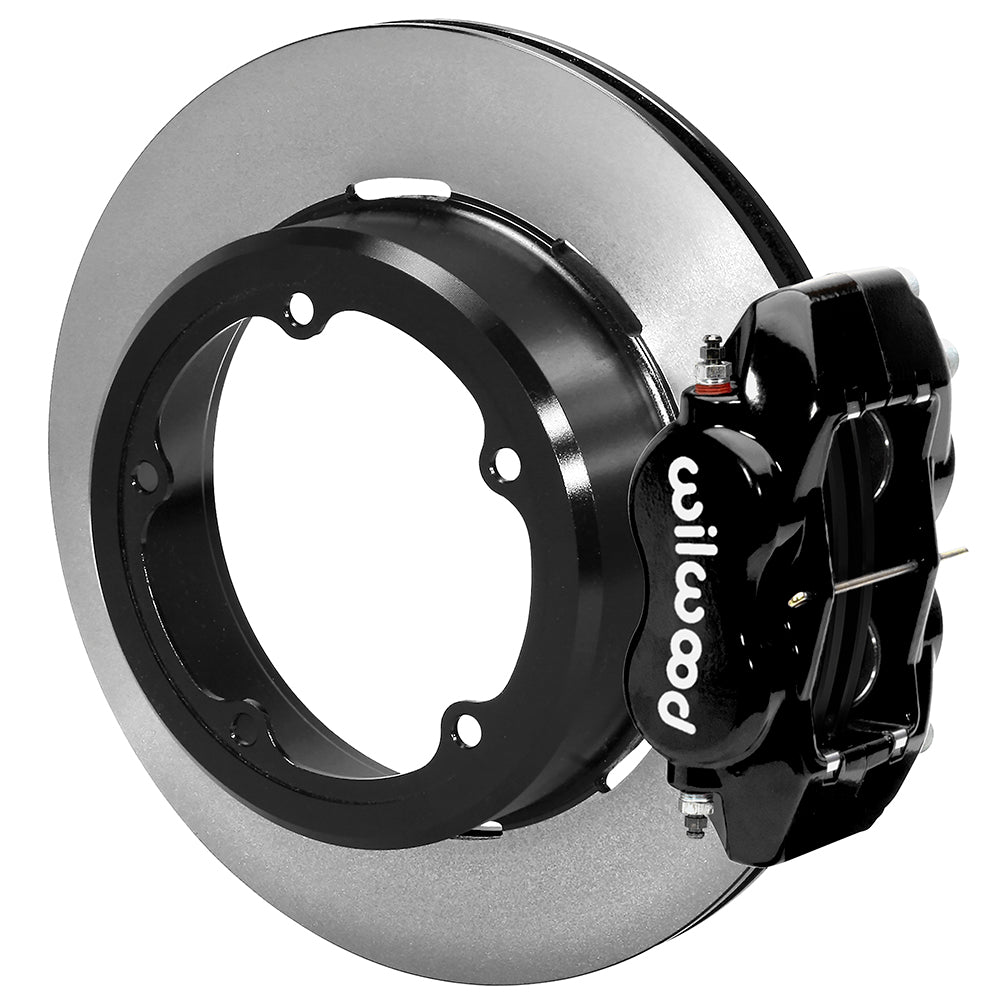

Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.19-inch plain-face rotor in assembled view
Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: paired black calipers, 12.19-inch plain-face rotors and hardware laid out
Wilwood rear Forged Dynalite Internal kit for Strange Engineering Floater 3.49-inch offset: black caliper and 12.19-inch plain-face rotor in assembled view

Wilwood Rear Dynalite Parking Brake Kit, Strange Floater 3.49-Inch Offset, Black Plain

SKU: 140-12420

$1,252.26 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This Wilwood rear kit combines black Dynalite service calipers with internal parking-brake shoes for a Strange Engineering floater axle. The 12.19-inch plain-face rotors are selected around a 3.49-inch axle flange offset. It is a housing-specific brake assembly for a custom installation, with flange geometry and the actual floater hub determining compatibility. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12420
  • Type: Forged Dynalite Rear Parking Brake Kit
  • Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat.
  • Caliper bore sizes: 1.38, 1.38 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
  • Rear housing end: Strange Engineering Floater.
  • Required axle flange offset: 3.49 inches.
  • Bolt pattern: 5 x 5.75 in; 5 x 146.05 mm.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, internal parking-brake shoe assemblies.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Parking-brake cables, clevis hardware and adapters are separate.
  • Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Measure the housing mounting pattern, register and wheel-side axle offset using DS890 and the axle worksheet. The floater interface must match the bracket and rotor mounting arrangement; the hat pattern is not a general passenger-car wheel bolt pattern. Parking-brake cables and adapters are separate. Check wheel spoke and barrel clearance, then route hydraulic lines independently of the mechanical parking-brake connections.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
