Wilwood Buick Front Dynalite Brakes, Century Series 60/Limited Series 90/Roadmaster Series 70/Special Series 40-A/Special Series 40-B/Super Series 50/Special Series 40/Roadmaster/Special/Super/Century/Skylark (1941–1956), Integral Hub Rotors

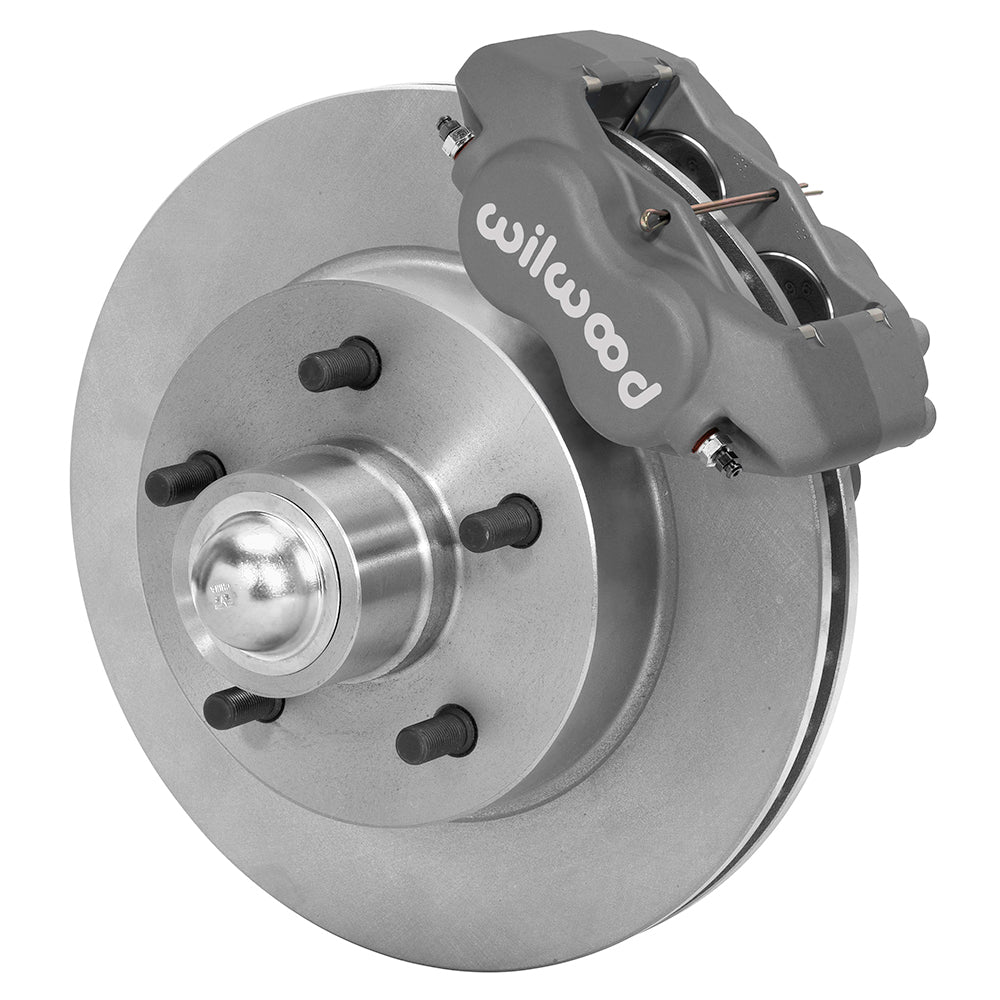

This Wilwood Classic Series front kit converts the specified 1941–1956 Buick drum-spindle applications to four-piston Dynalite brakes. Plain-face 11.88-inch iron hub/rotor assemblies retain the traditional spindle layout while providing the mounting for the supplied calipers and brackets. The one-piece hub/rotor arrangement is part of the conversion, rather than a separate replacement aluminum-hub package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12321
• Type: Classic Series Dynalite Front Brake Kit
• Calipers: Forged Dynalite; 4 pistons per caliper; Type III Anodize.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 11.88-inch diameter × 1.29-inch thickness; Plain Face; Iron; Plain surface; vented.
• Bolt pattern: 5 x 5 in; 5 x 127 mm.

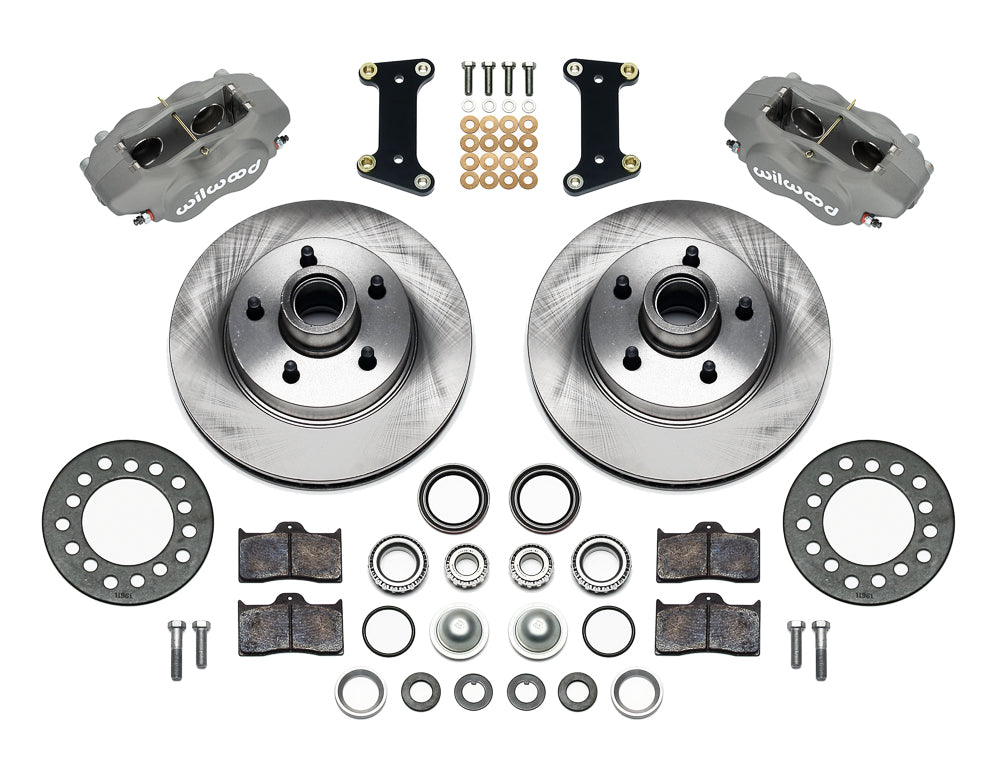

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, integral hub/rotor assemblies and bearing components.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Compare the car's exact series and production year with the application rows, then inspect spindle and bearing geometry against DS892. Confirm the five-on-five-inch wheel pattern and full wheel profile. Hydraulic hoses are separate, and the master-cylinder/pedal arrangement should be reviewed for disc-brake volume and balance. Adjust the supplied bearing components according to the installation instructions before checking rotor runout and caliper alignment.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
