Wilwood Red Superlite 6R Front Disc Package, Chevrolet Bel Air/Nomad/One-Fifty Series/Sedan Delivery/Two-Ten Series/Del Ray (1955–1957), SRP Drop-Spindle Kit

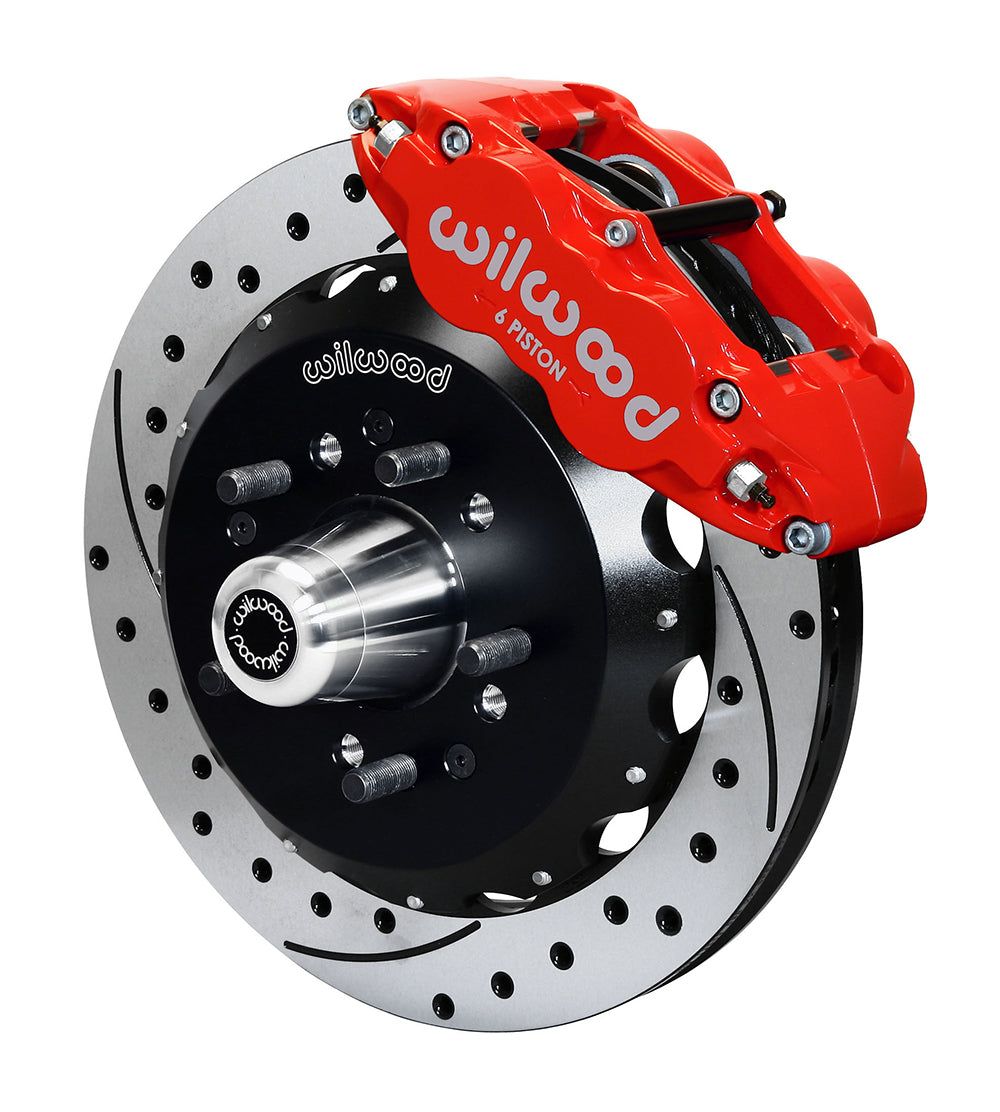

This Wilwood front conversion supplies red Superlite 6R calipers and 12.88-inch drilled/slotted rotors for the stated Chevrolet drop-spindle combinations. Replacement hubs, hats and radial brackets support the six-piston brake assembly. Its configuration is selected for the aftermarket spindle; retaining an original Chevrolet drum spindle would require a different kit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12307-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.62, 1.12, 1.12 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

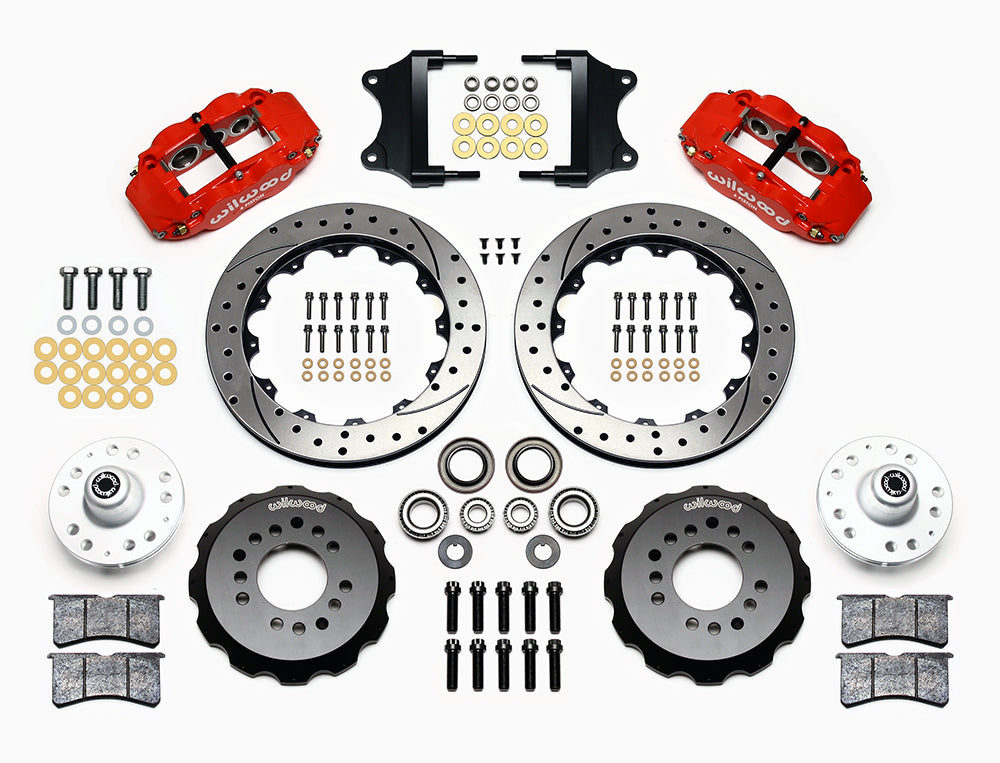

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Identify the exact Heidts, Ridetech or CPP option in the fitment entries and compare it with the installed hardware. Use DS876 to establish wheel clearance and assembly dimensions before the old brakes are removed. Confirm the correct hub bolt circle and bearing fit. Choose hoses with adequate steering and suspension movement, and check hydraulic displacement and front/rear balance for the converted brake system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
