Wilwood Plain 12.19-Inch Front Brakes, Red, Chevrolet Bel Air/Nomad/One-Fifty Series/Sedan Delivery/Two-Ten Series/Del Ray (1955–1957), Drop-Spindle Conversion

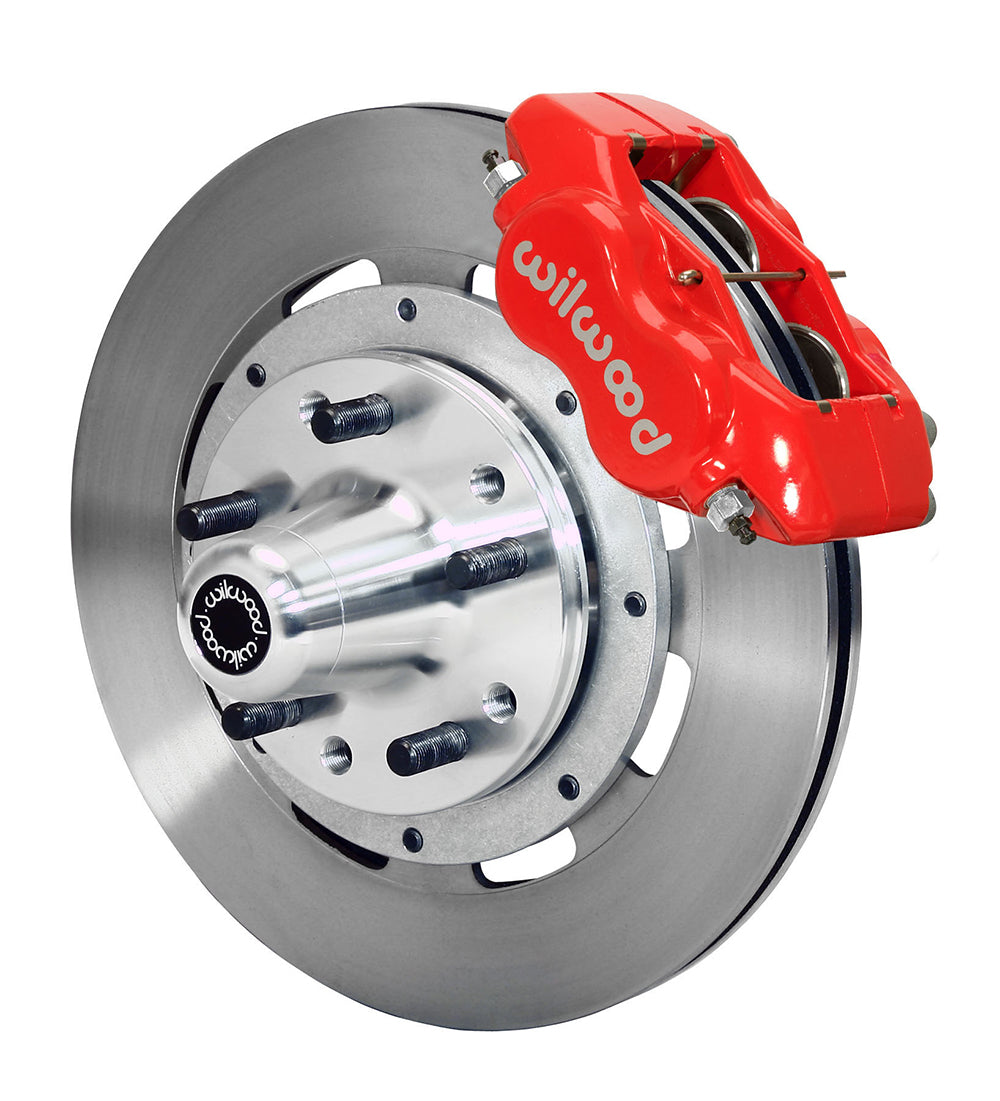

This Wilwood front drop-spindle kit pairs red four-piston Dynalite calipers with plain-face 12.19-inch rotors and replacement hubs. It provides a disc conversion for the listed 1955–1957 Chevrolet chassis when fitted with the specific aftermarket spindle arrangement. The compact rotor diameter does not make it interchangeable with the kit for an original Chevrolet spindle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12306-R
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; Plain Face; Iron; Plain surface; 32 vanes.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

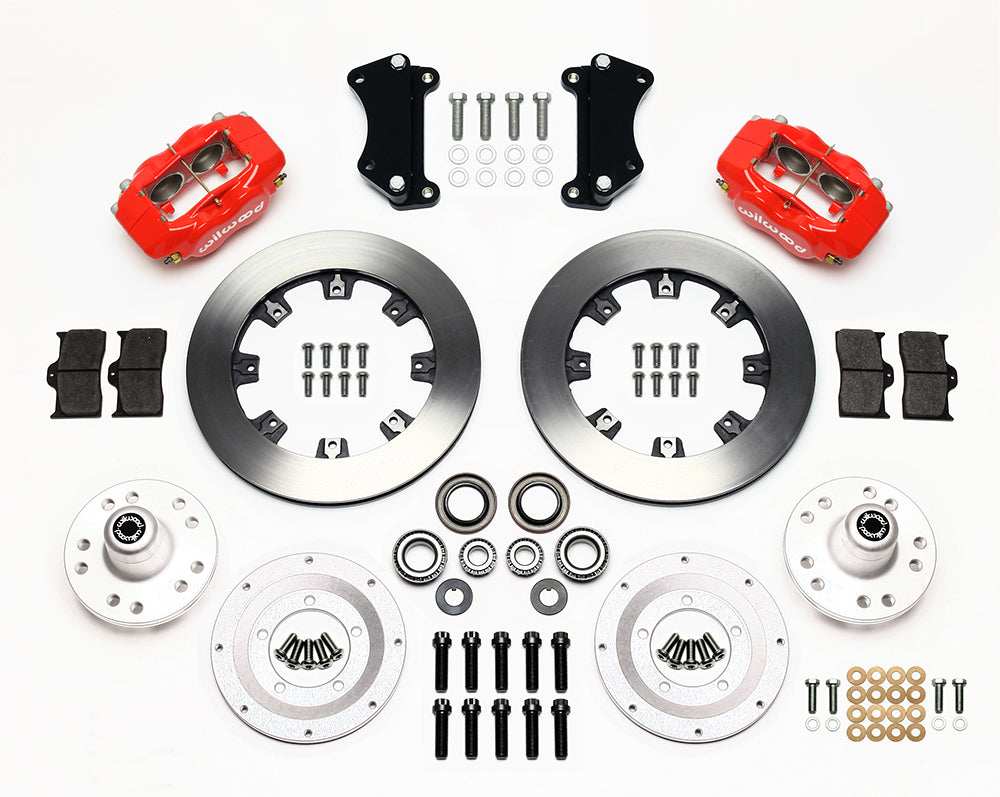

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Use the individual application notes to identify the installed Heidts, Ridetech or CPP drop-spindle configuration. Then compare wheel-to-caliper clearance with DS875, including spoke depth near the caliper bridge. Confirm lug pattern, bearing seating and retained spindle hardware. The kit supplies the brake/hub assembly rather than a complete hydraulic conversion, so suitable hoses and master-cylinder capacity must be established for the vehicle.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
