Wilwood Red Front Hub Brake Kit for Chevrolet Bel Air/Nomad/One-Fifty Series/Sedan Delivery/Two-Ten Series/Del Ray (1955–1957), Drilled/Slotted, Drop Spindle

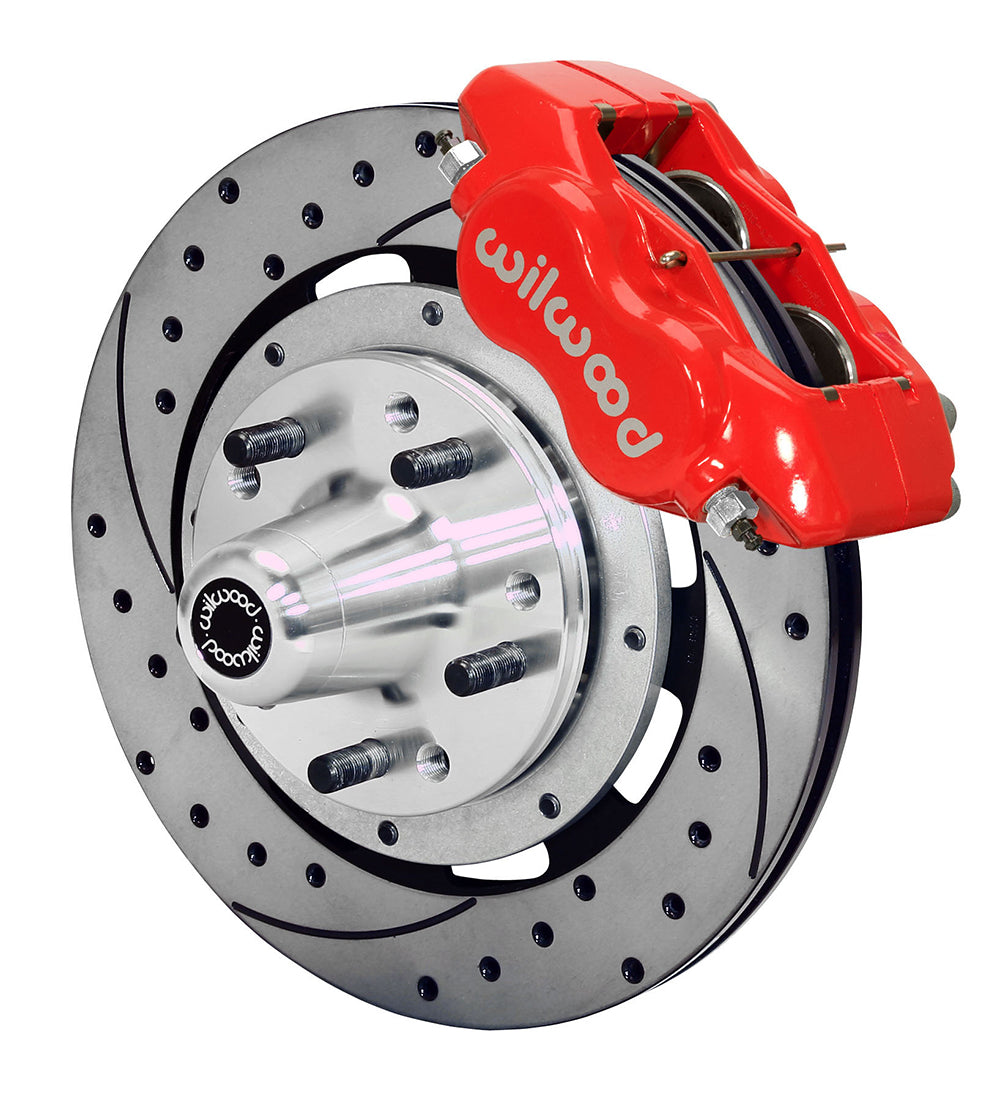

Red Dynalite calipers and SRP rotors are supplied in this Wilwood front conversion for the stated Tri-Five Chevrolet drop-spindle combinations. The 12.19-inch vented rings attach to the supplied hub arrangement, with four-piston calipers supported by dedicated mounting brackets. Check the spindle already fitted to the car rather than selecting the kit by its model name alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12306-DR
• Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
• Calipers: Forged Dynalite Internal; 4 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

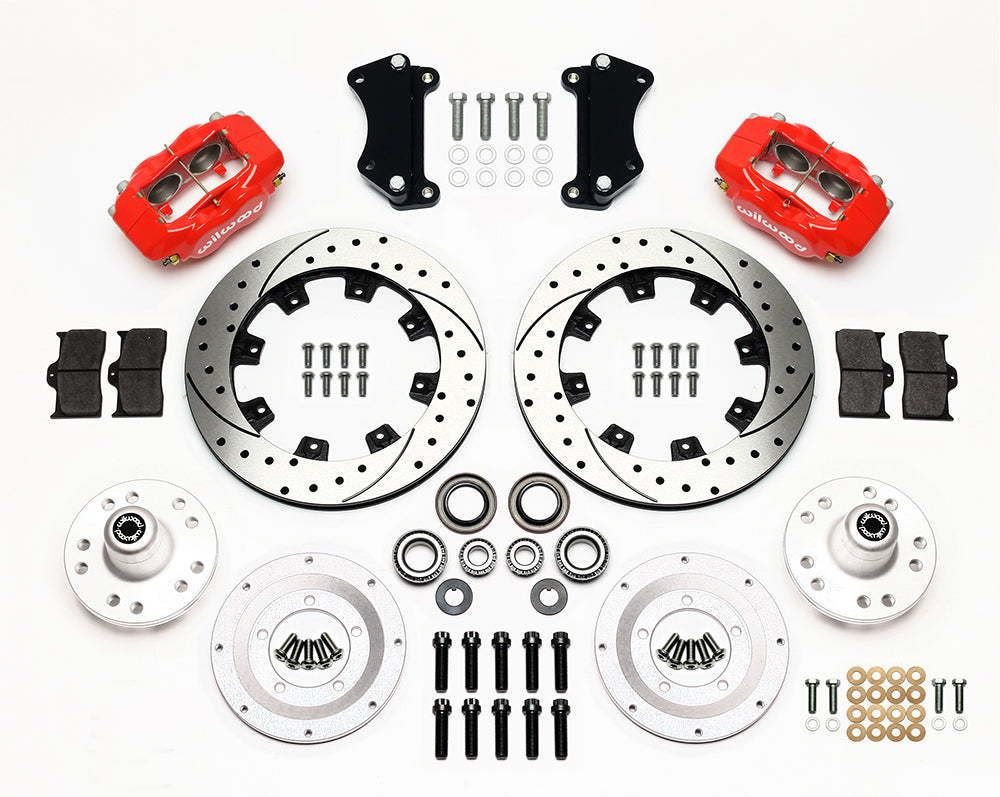

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
• Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
• For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Original Chevrolet spindles are excluded from this package. The fitment entries identify particular Heidts, Ridetech and CPP alternatives, so verify the spindle maker and geometry before ordering. DS875 provides the assembly and wheel outline. Choose the correct hub pattern, inspect bearing fit and arrange hydraulic hoses separately. Master-cylinder mounting and brake balance should be reviewed when converting an otherwise original drum-brake car.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
