Wilwood 14-Inch Drilled Front Brake & Hub Package, Red Six-Piston Calipers, GM G-Body/S-Series/Isuzu Hombre (1978–2003)

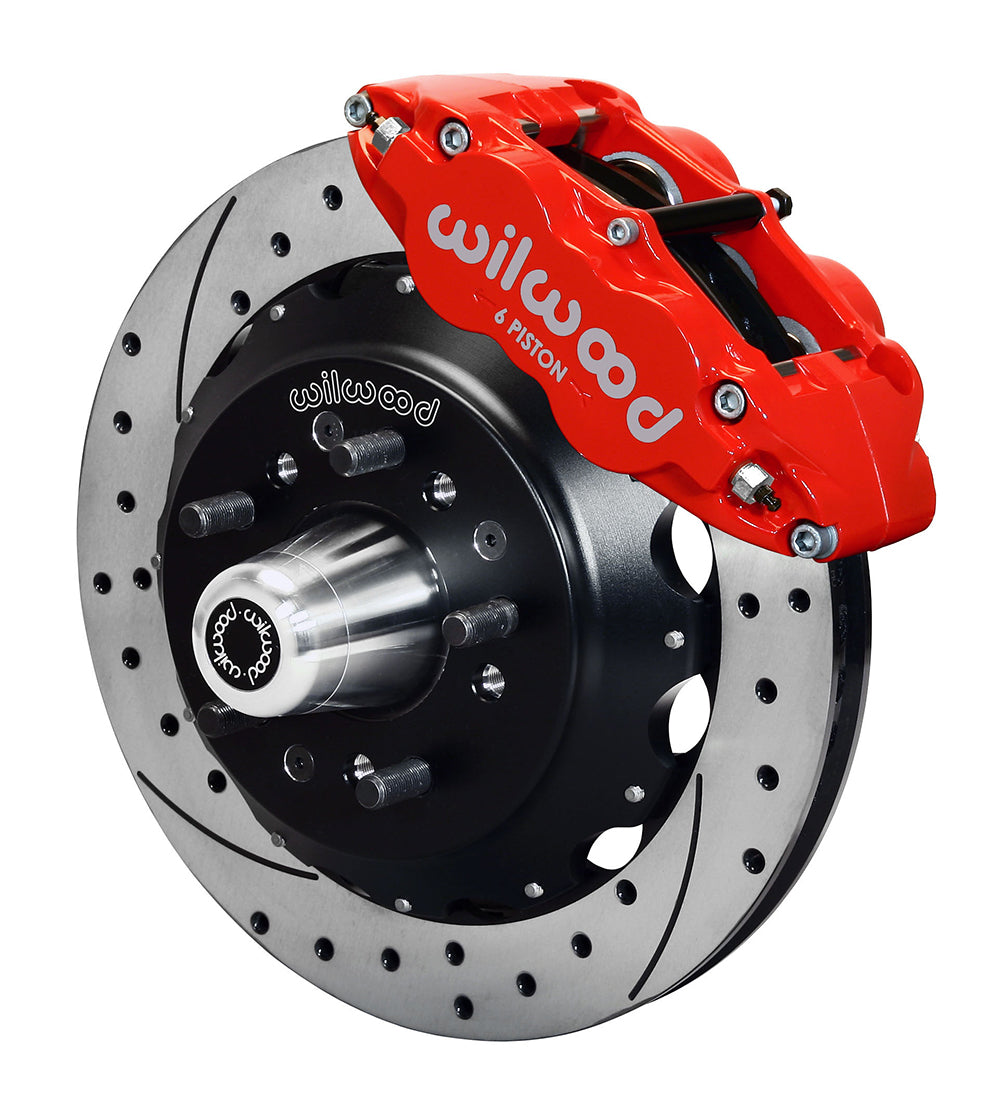

Red powder-coated six-piston calipers accompany 72-curved-vane SRP rotors in this Wilwood front hub kit. The 14-inch friction rings mount to aluminum hats, with replacement hubs locating the assembly on the listed disc-spindle chassis. This package requires planned wheel clearance and qualified machining of the original spindle rather than merely substituting larger rotors. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12299-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.75, 1.25, 1.25 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 14.00-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 72 curved vanes.
• Wheel mounting change from OE: +.10 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

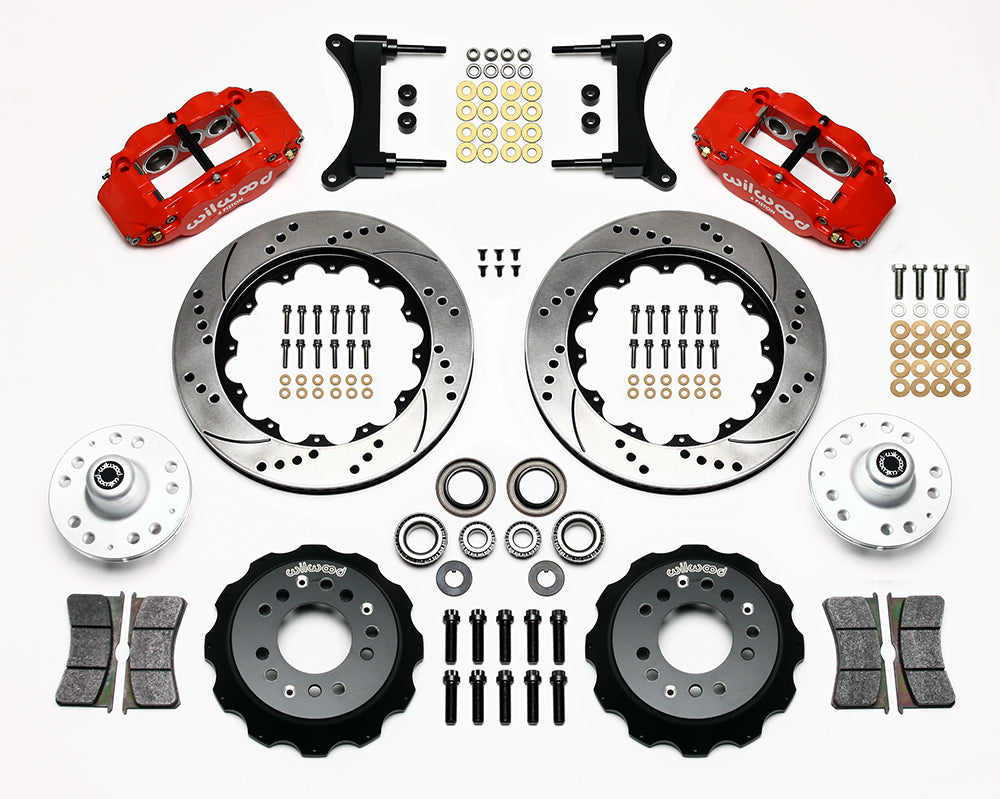

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 18 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Use DS879 to establish the bracket hole preparation and the minimum casting relief needed around the original caliper ears. Check the vehicle's exact application row, especially compact-truck drivetrain conditions. Replacement hubs increase wheel position 0.10 inches per side. Confirm that the chosen wheel clears the caliper through its full envelope and that the separately sourced hydraulic connections suit the completed front/rear brake system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
