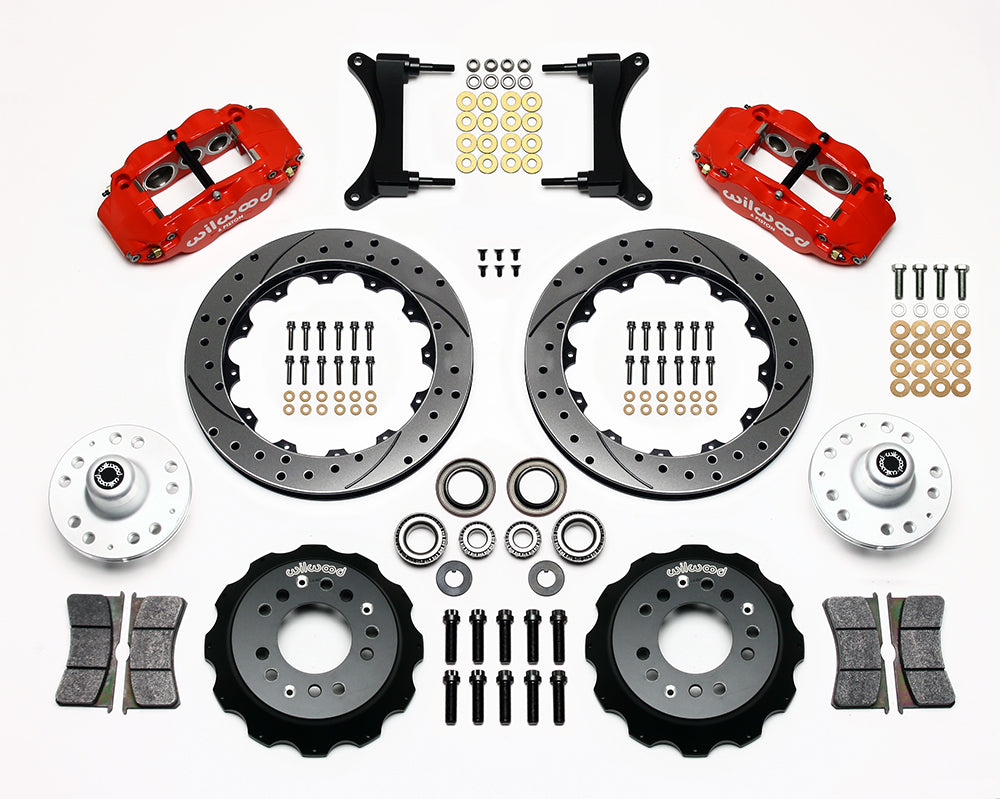

Wilwood front Forged Narrow Superlite 6R kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: paired red calipers, 12.88-inch drilled and slotted rotors and hardware laid out

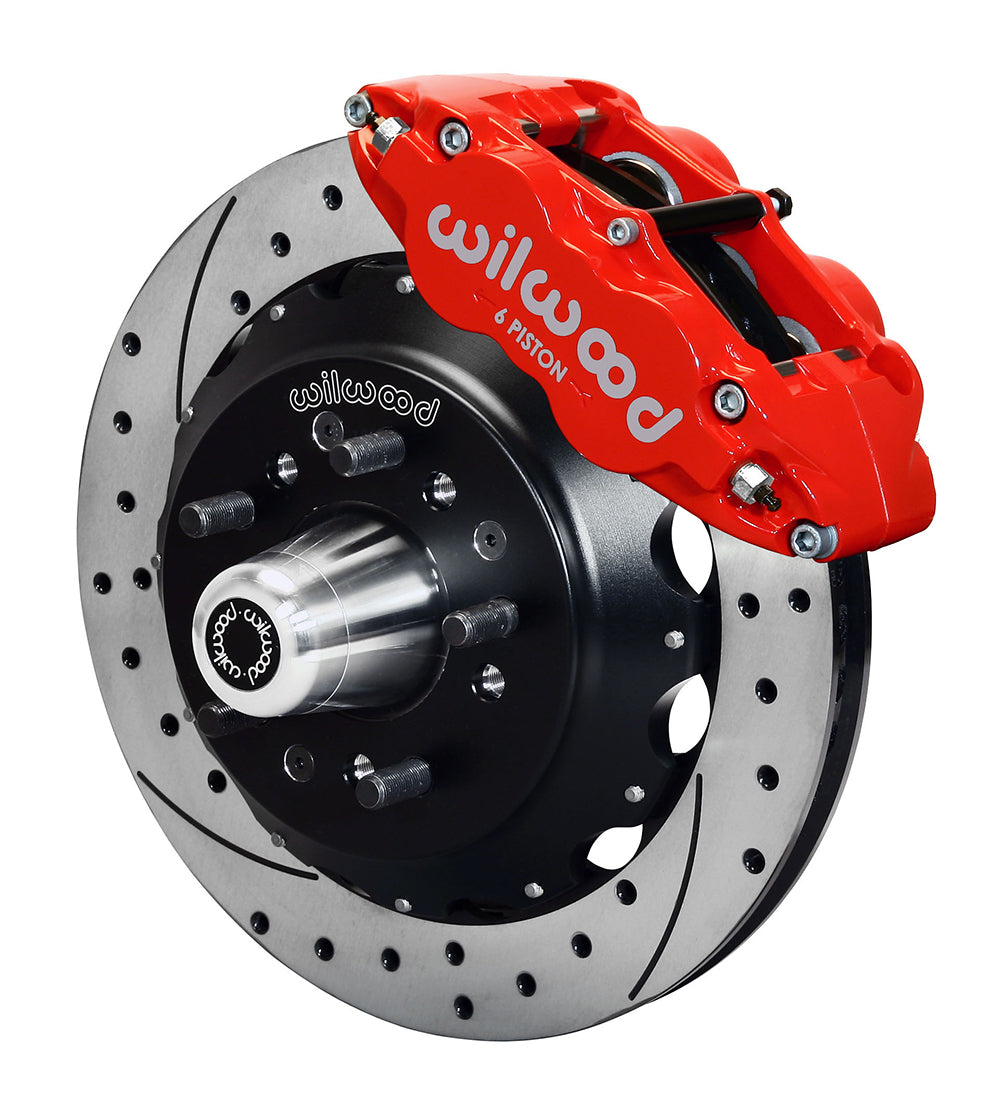

Wilwood front Forged Narrow Superlite 6R kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: red caliper and 12.88-inch drilled and slotted rotor in assembled view
Wilwood front Forged Narrow Superlite 6R kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: paired red calipers, 12.88-inch drilled and slotted rotors and hardware laid out
Wilwood front Forged Narrow Superlite 6R kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: red caliper and 12.88-inch drilled and slotted rotor in assembled view

Wilwood Red Front Six-Piston Brake & Hub Conversion, GM G-Body/S-Series/Isuzu Hombre (1978–2003), SRP

SKU: 140-12298-DR

$2,354.40 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Wilwood's red Superlite 6R front conversion combines six-piston calipers with 12.88-inch SRP rotors for the specified factory-disc-spindle chassis. Separate aluminum hats attach the friction rings to replacement hubs, with the hardware selected for that spindle family. The installation adds 0.10 inches to wheel position on each side and requires more than a simple caliper exchange. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12298-DR
  • Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
  • Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat.
  • Caliper bore sizes: 1.75, 1.25, 1.25 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.88-inch diameter × 1.10-inch thickness; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface; 48 curved vanes.
  • Wheel mounting change from OE: +.10 inches per side.
  • Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs, rotor hats.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Assess the existing casting before machining its bracket attachment points. DS878 calls for drilling/tapping and removal of interfering factory caliper ears, performed by a qualified shop. Use the individual application entries to confirm rear-drive or two-wheel-drive truck requirements. The rotor and caliper need barrel and spoke clearance, so check the drawing with the chosen wheel and verify lug engagement after fitting the new hubs.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1978-1987 GMC Caballero Base Base Disc Drum Front Kit 1, 2, 3, 4
1978-1987 GMC Caballero Diablo Diablo Disc Drum Front Kit 1, 2, 3, 4
1978-1980 GMC Caballero Laredo Laredo Disc Drum Front Kit 1, 2, 3, 4
1979-1981 Buick Century All Disc Drum Front Kit 1, 2, 3, 4
1979-1987 Buick Regal All Disc Drum Front Kit 1, 2, 3, 4
1979-1987 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4
1979-1983 Chevrolet Malibu All Disc Drum Front Kit 1, 2, 3, 4
1979-1988 Chevrolet Monte Carlo All Disc Drum Front Kit 1, 2, 3, 4
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser Disc Drum Front Kit 1, 2, 3, 4
1979-1984 Oldsmobile Cutlass Calais Base Base Disc Drum Front Kit 1, 2, 3, 4
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 Disc Drum Front Kit 1, 2, 3, 4
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base Disc Drum Front Kit 1, 2, 3, 4
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4
1979 Oldsmobile Cutlass Salon Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4
1979-1987 Oldsmobile Cutlass Supreme Base Base Disc Drum Front Kit 1, 2, 3, 4
1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4
1979-1980 Pontiac Grand Am All Disc Drum Front Kit 3, 4
1979-1987 Pontiac Grand Prix All Disc Drum Front Kit 1, 2, 3, 4
1979-1980 Pontiac LeMans All Disc Drum Front Kit 1, 2, 3, 4
1980 Oldsmobile Cutlass Base Base Disc Drum Front Kit 1, 2, 3, 4
1980-1982 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 3, 4
1981-1986 GMC Caballero Amarillo Amarillo Disc Drum Front Kit 1, 2, 3, 4
1981 GMC Caballero Conquista Conquista Disc Drum Front Kit 1, 2, 3, 4
1981 GMC Caballero Royal Knight Royal Knight Disc Drum Front Kit 1, 2, 3, 4
1981 Oldsmobile Cutlass Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4
1981 Oldsmobile Cutlass Supreme LS LS Disc Drum Front Kit 1, 2, 3, 4
1981 Pontiac LeMans All (Canada) Disc Drum Front Kit 1, 2, 3, 4
1982 Chevrolet S10 Pickup All Disc Drum Front Kit 1, 2, 3, 4
1982 GMC S15 All Disc Drum Front Kit 1, 2, 3, 4
1982-1987 Pontiac Bonneville All Disc Drum Front Kit 1, 2, 3, 4
1982-1983 Pontiac Grand LeMans Base Base Disc Drum Front Kit 1, 3, 4
1982-1983 Pontiac Grand LeMans BR BR Disc Drum Front Kit 1, 3, 4
1983-1997 Chevrolet S10 Blazer 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1983-1996 Chevrolet S10 Pickup 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1983-1990 GMC S15 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1983-1991 GMC S15 Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4
1983 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 3, 4
1984-1987 Buick Regal Grand National Grand National Disc Drum Front Kit 1, 2, 3, 4
1987 Oldsmobile Cutlass Supreme 442 442 Disc Drum Front Kit 1, 2, 3, 4
1988 Oldsmobile Cutlass Supreme RWD only Disc Drum Front Kit 1, 2, 3, 4
1991-1996 GMC Sonoma 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1992-1997 GMC Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1996-2000 Isuzu Hombre 4 x 2 Disc Drum Front Kit 1, 2, 3, 4
1997-2003 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake Disc Drum Front Kit 1, 2, 3, 4
2003 Chevrolet S10 Pickup 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4
2003 GMC Sonoma 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4
2003 GMC Sonoma 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4
