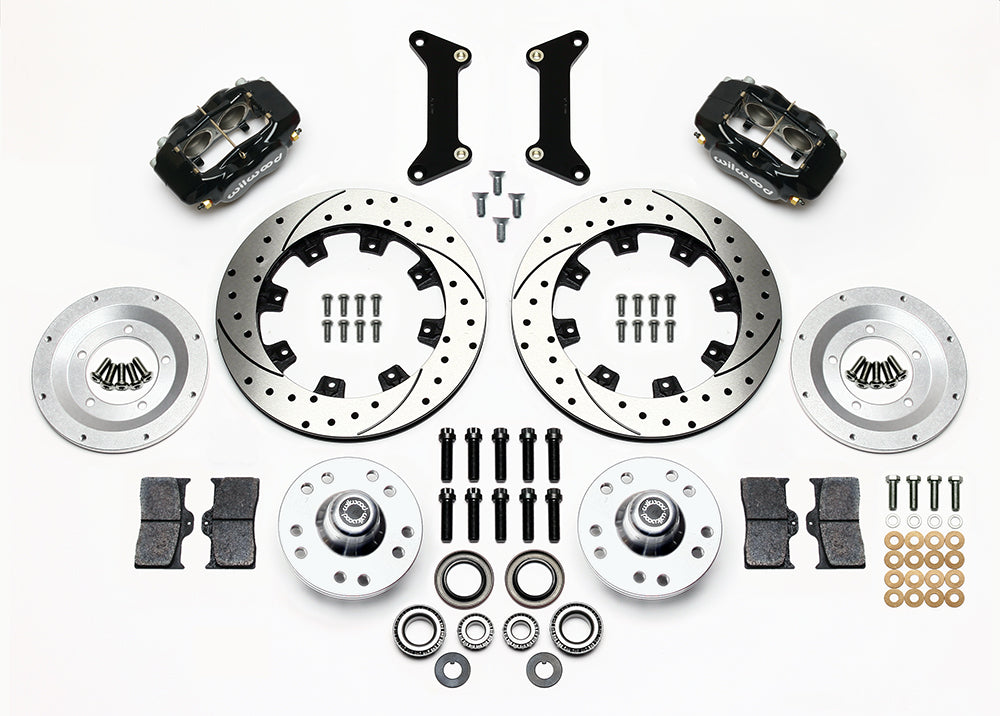

Wilwood front Forged Dynalite Internal kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: paired black calipers, 12.19-inch drilled and slotted rotors and hardware laid out

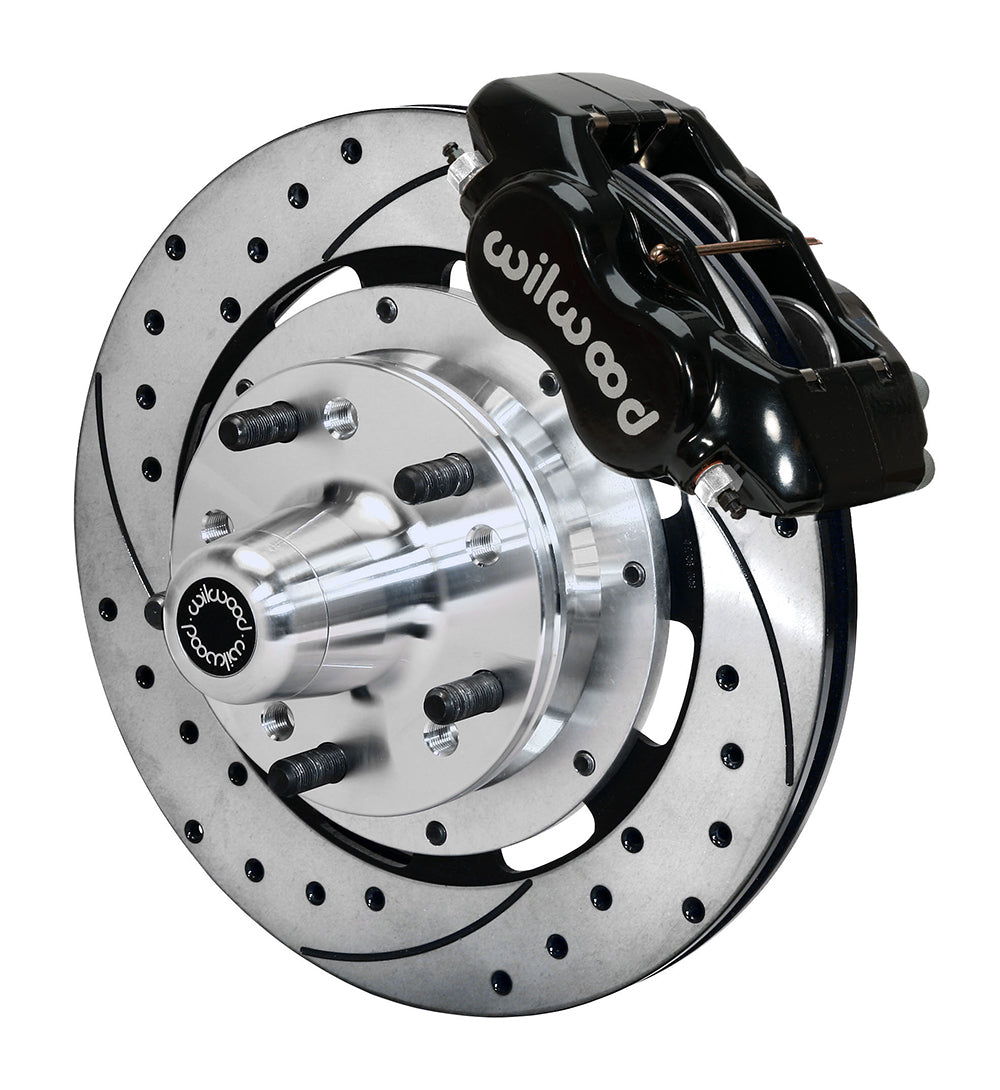

Wilwood front Forged Dynalite Internal kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: black caliper and 12.19-inch drilled and slotted rotor in assembled view
Wilwood front Forged Dynalite Internal kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: paired black calipers, 12.19-inch drilled and slotted rotors and hardware laid out
Wilwood front Forged Dynalite Internal kit for GMC/Buick/Chevrolet/Oldsmobile/Pontiac/Isuzu disc spindle: black caliper and 12.19-inch drilled and slotted rotor in assembled view

Wilwood Drilled/Slotted Dynalite Front Hub Conversion, GM G-Body/S-Series/Isuzu Hombre (1978–2003), 12.19-Inch Rotors

SKU: 140-12297-D

$1,281.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This Wilwood front conversion supplies SRP drilled/slotted friction rings, black Dynalite calipers and replacement hubs for the listed GM and Isuzu applications. Its 12.19-inch rotor diameter is paired with a 0.81-inch thickness. The hub and bracket arrangement is designed around the specified original disc spindle, which requires preparation described in the assembly instructions. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

  • Manufacturer part number: 140-12297-D
  • Type: Forged Dynalite Big Brake Front Brake Kit (Hub)
  • Calipers: Forged Dynalite Internal; 4 pistons per caliper; Black Powder Coat.
  • Caliper bore sizes: 1.75, 1.75 inches. Piston type: Stainless.
  • Included pad compound: BP-10.
  • Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
  • Wheel mounting change from OE: .00 inches per side.
  • Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
  • Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
  • Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
  • Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
  • Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.
  • Wheel-contact support requirement: if the wheel contact surface overhangs the hub face, use the specified 6.60-inch-diameter × 0.20-inch-thick steel spacer between hub and wheel. The spacer is sold separately.
  • For stamped steel wheels whose contact area does not overhang the hub, Wilwood recommends the separate 6.15-inch-diameter × 0.09-inch-thick hub shield to protect the hub face; this is distinct from the required overhang-support spacer.

Fitment & Compatibility

Compare the spindle casting with DS877 before committing to the conversion. Machining the mounting points and removing obstructing ears must be completed accurately on both sides. Truck rows carry drivetrain and rear-brake qualifications that need checking individually. Assess wheel spoke shape as well as diameter, and choose hydraulic hoses that remain clear through steering lock and suspension travel. Master-cylinder suitability depends on the completed front/rear system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.

California Proposition 65 warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1978-1987 GMC Caballero Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1978-1987 GMC Caballero Diablo Diablo Disc Drum Front Kit 1, 2, 3, 4, 5
1978-1980 GMC Caballero Laredo Laredo Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1981 Buick Century All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Buick Regal All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1983 Chevrolet Malibu All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1988 Chevrolet Monte Carlo All Disc Drum Front Kit 1, 2, 3, 4, 5
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1984 Oldsmobile Cutlass Calais Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1979 Oldsmobile Cutlass Salon Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Oldsmobile Cutlass Supreme Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Pontiac Grand Am All Disc Drum Front Kit 1, 4, 5
1979-1987 Pontiac Grand Prix All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Pontiac LeMans All Disc Drum Front Kit 1, 2, 3, 4, 5
1980 Oldsmobile Cutlass Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1980-1982 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 4, 5
1981-1986 GMC Caballero Amarillo Amarillo Disc Drum Front Kit 1, 2, 3, 4, 5
1981 GMC Caballero Conquista Conquista Disc Drum Front Kit 1, 2, 3, 4, 5
1981 GMC Caballero Royal Knight Royal Knight Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Oldsmobile Cutlass Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Oldsmobile Cutlass Supreme LS LS Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Pontiac LeMans All (Canada) Disc Drum Front Kit 1, 2, 3, 4, 5
1982 Chevrolet S10 Pickup All Disc Drum Front Kit 1, 2, 3, 4, 5
1982 GMC S15 All Disc Drum Front Kit 1, 2, 3, 4, 5
1982-1987 Pontiac Bonneville All Disc Drum Front Kit 1, 2, 3, 4, 5
1982-1983 Pontiac Grand LeMans Base Base Disc Drum Front Kit 1, 2, 4, 5
1982-1983 Pontiac Grand LeMans BR BR Disc Drum Front Kit 1, 2, 4, 5
1983-1997 Chevrolet S10 Blazer 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1996 Chevrolet S10 Pickup 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1990 GMC S15 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1991 GMC S15 Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5
1983 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 2, 4, 5
1984-1987 Buick Regal Grand National Grand National Disc Drum Front Kit 1, 2, 3, 4, 5
1987 Oldsmobile Cutlass Supreme 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5
1988 Oldsmobile Cutlass Supreme RWD only Disc Drum Front Kit 1, 2, 3, 4, 5
1991-1996 GMC Sonoma 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1997 GMC Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1996-2000 Isuzu Hombre 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1997-2003 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake Disc Drum Front Kit 1, 2, 3, 4, 5
2003 Chevrolet S10 Pickup 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5
2003 GMC Sonoma 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5
2003 GMC Sonoma 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5
