Wilwood Black 12.88-Inch GT Front Brake & Hub Conversion, Dodge/Plymouth Polara/Belvedere/Fury/Savoy/330/440/Coronet/Satellite/Charger/GTX/Coronet Super Bee/Roadrunner/Challenger/Barracuda/Cuda (1962–1972)

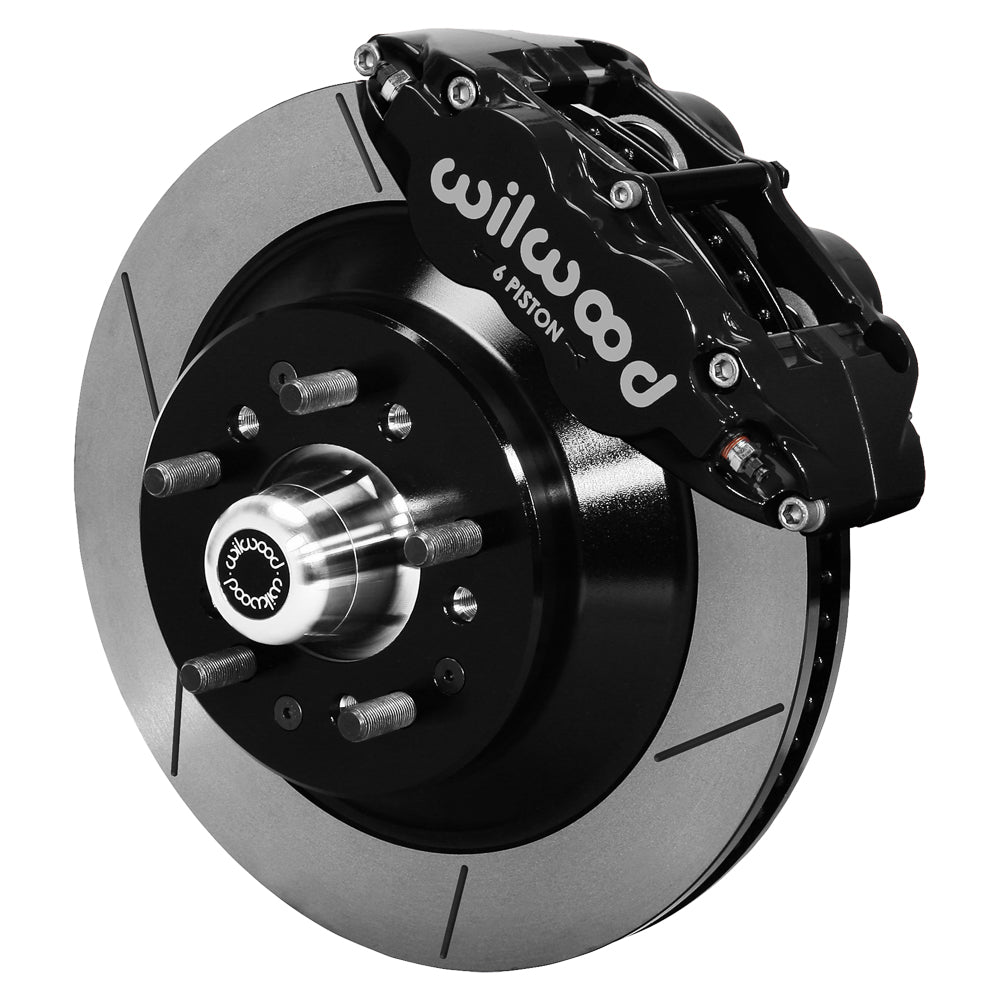

This Wilwood front conversion replaces the drum-spindle brake hardware on the listed 1962–1972 Dodge and Plymouth B/E-body applications. Black Forged Narrow Superlite 6R calipers work with one-piece 12.88-inch slotted rotor/hat assemblies and replacement hubs. The original drum spindle remains, so identifying its year and configuration is essential before selecting the package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12282
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.75, 1.25, 1.25 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch thickness; GT Slotted; Iron; Black Electro Coat surface; 34 vanes.
• Wheel mounting change from OE: +.13 inches per side.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

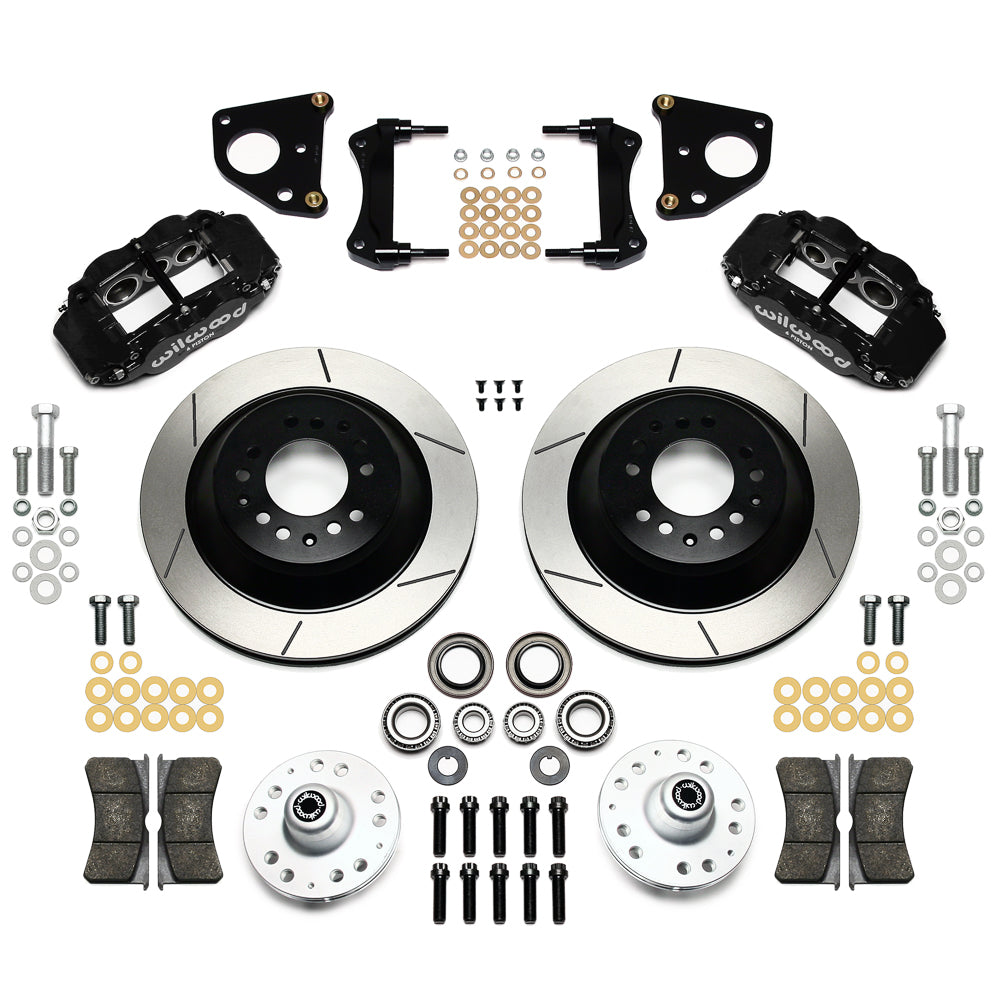

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, replacement hubs.
• Hydraulic lines and fittings selected separately. No master cylinder, booster or spindles are supplied.
• Conditional wheel screening size: 17 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Measure the spindle and wheel pattern before removing the original brakes. This package moves the wheel mounting face outward 0.13 inches per side and uses the matching hub bearings and mounting brackets. Compare barrel radius and spoke depth with DS872; nominal 17-inch wheel diameter alone cannot establish clearance. Arrange suitable hydraulic hoses separately and confirm master-cylinder mounting and displacement for the complete system.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
