Wilwood Front Red-Caliper Brake/Hub Conversion, GT Rotors for Pontiac Bonneville/Catalina/Firebird/Phoenix/Parisienne, Chevrolet Camaro/Caprice/Impala/Nova, Buick Estate Wagon/LeSabre/Skylark, Oldsmobile Custom Cruiser/Delta 88/Omega (1979–1990)

This red Wilwood later-GM front package combines six-piston calipers with GT slotted 12.88-inch one-piece rotors and replacement hubs. BP-10 pads, bearings and application brackets are included. The system is designed around the specified disc spindle after the required preparation, rather than around every front suspension used across the model-year span. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12280-R

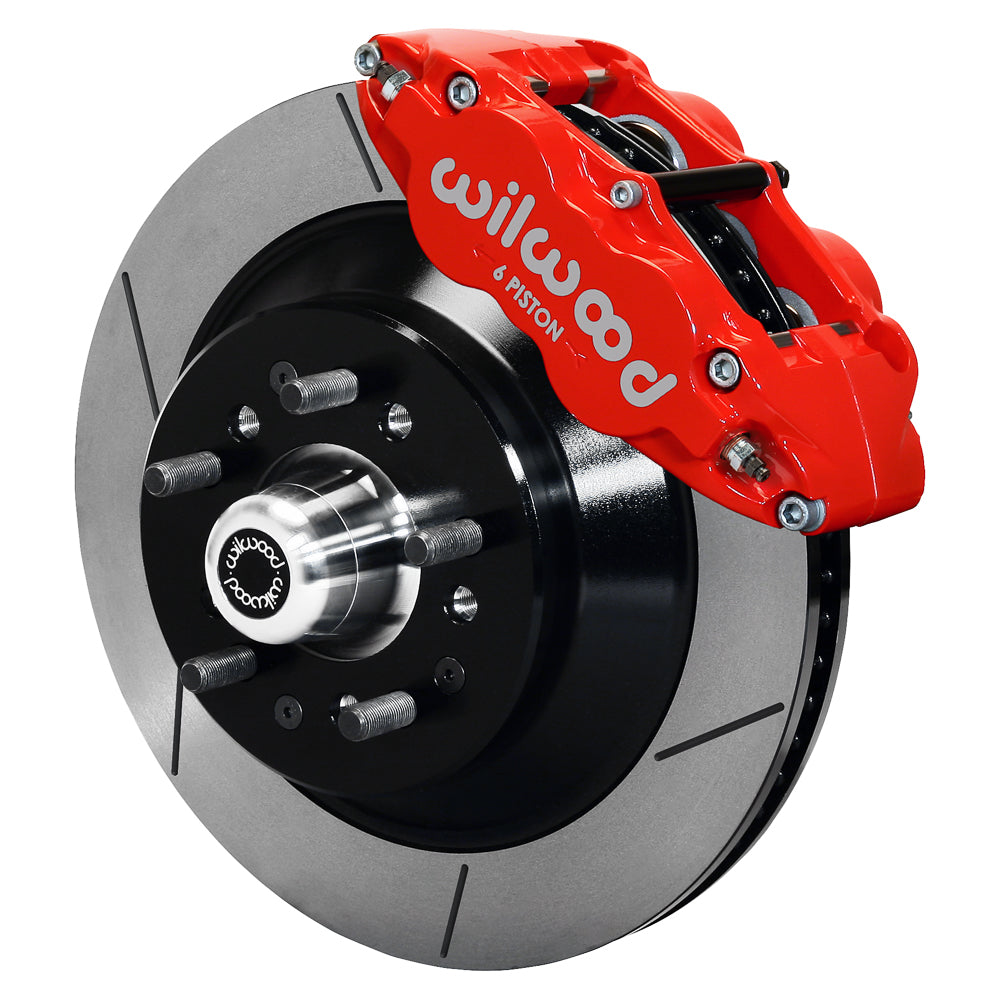

• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.30 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

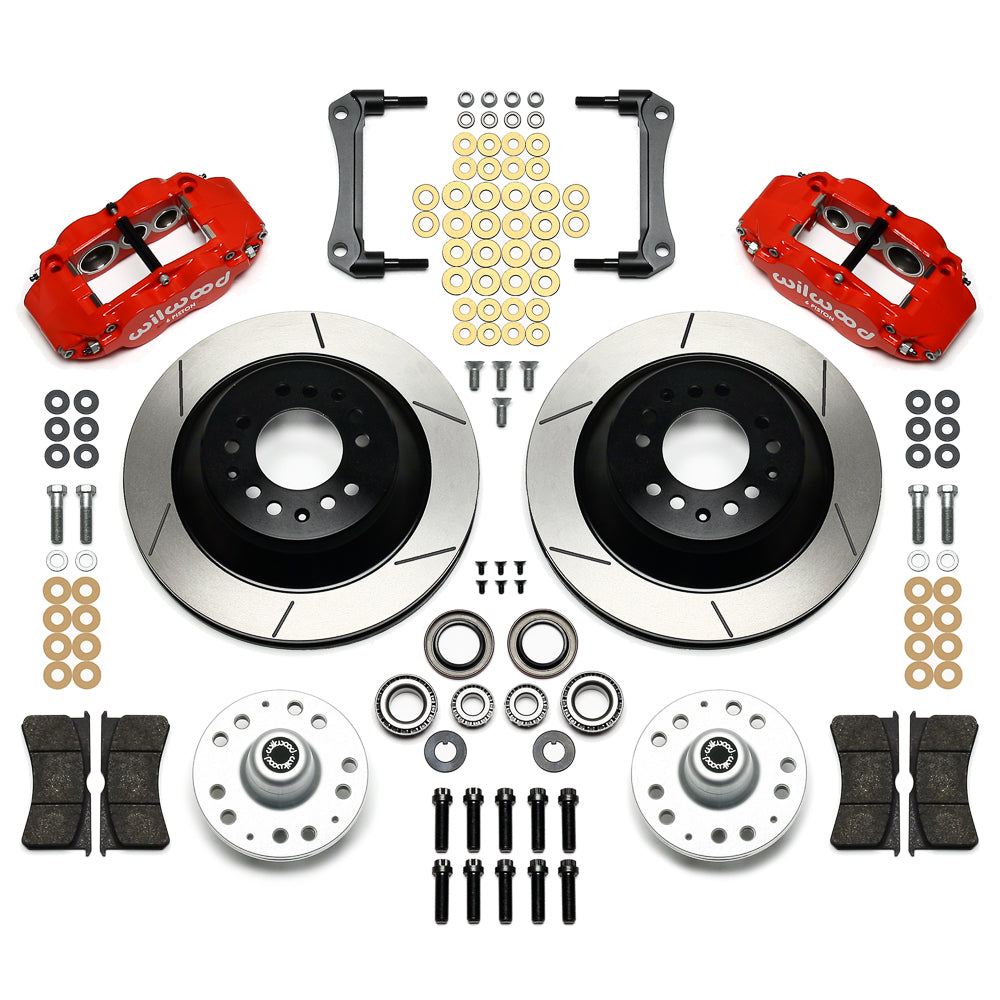

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Compare the later GM disc spindle directly with the mounting arrangement in DS871, then check the individual model year and original-brake option. Spindle drilling/tapping and removal of the old caliper ears must be completed correctly before attaching the new bracket. Inspect the exposed bearing journals and assemble the hub with the specified adjustment. The wheel's mounting circle, contact support and outward position all need to suit the chassis; caliper clearance is a separate measurement. Choose suitable hydraulic lines for the actual body fittings and provide enough freedom through steering lock. Test the complete conditional 17-inch section behind the wheel spokes, then check runout, caliper centering and pad bedding as part of the conversion.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
