Wilwood Black GT Front Brake/Hub Kit for Buick Estate Wagon/LeSabre/Skylark, Oldsmobile Custom Cruiser/Delta 88/Omega, Chevrolet Camaro/Caprice/Impala/Nova, Pontiac Bonneville/Catalina/Firebird/Phoenix/Parisienne (1979–1990)

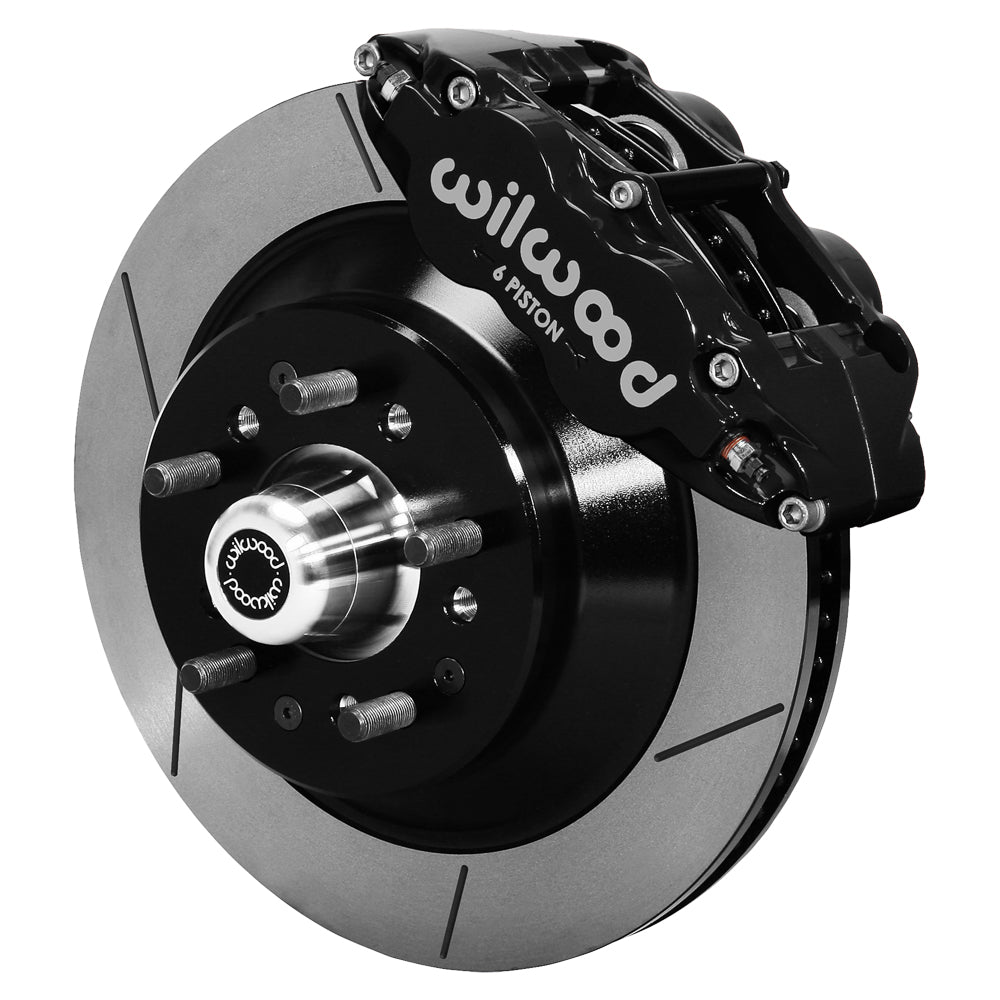

This Wilwood front kit uses black six-piston Superlite calipers and GT slotted 12.88-inch rotors on replacement hubs. The mounting arrangement serves the documented later GM disc-spindle applications with BP-10 pads and the appropriate brackets supplied. The complete 1979–1990 span applies only across the individual models and their stated year ranges. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12280
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.30 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

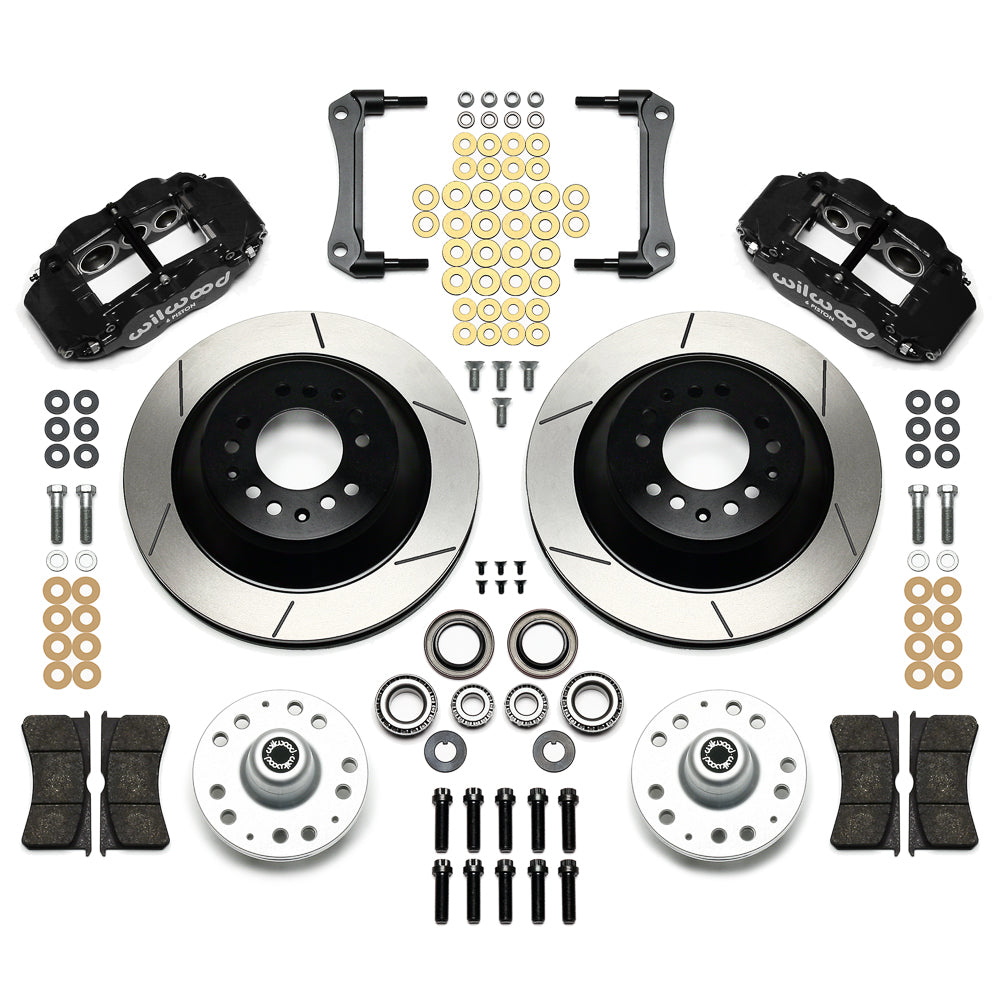

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Verify the installed upright belongs to the later GM disc-spindle arrangement shown in DS871. The application list distinguishes each model's year range and the original rotor-spindle option; it does not grant universal fit across the overall year span. Prepare the specified drilled/tapped bracket holes and remove the interfering caliper ears through a qualified machine shop. Check the hub bearings and spindle journals before assembly. Compare the published wheel mounting shift to fender space, then verify wheel bolt circle and full contact seating. Choose flexible hydraulic lines for the actual chassis and inspect their travel at steering lock. Use the full conditional 17-inch template around the black caliper, followed by bearing adjustment and rotor/caliper alignment checks.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
