Wilwood Front Red Superlite/SRP Brake Package, GM Disc-Spindle Cars 1970–1978, 12.88-Inch Rotors and Replacement Hubs

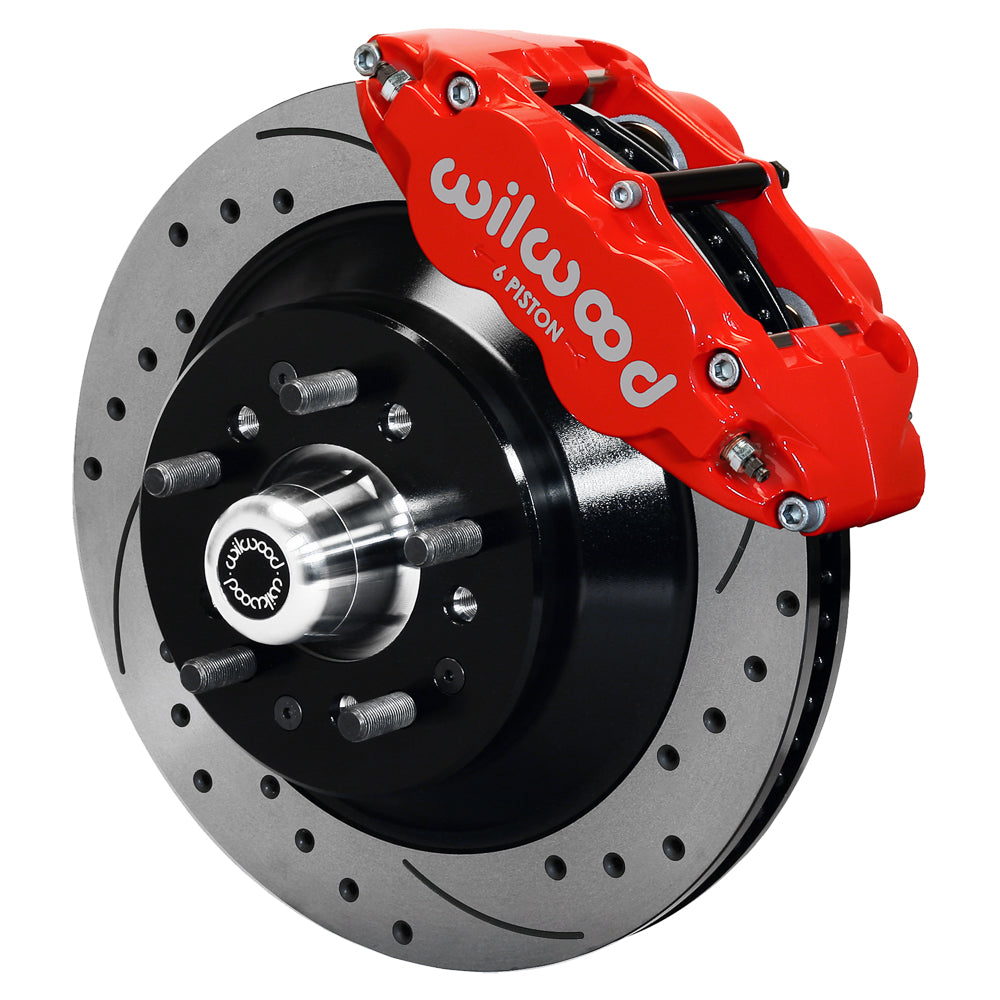

Red Superlite 6R calipers and drilled/slotted 12.88-inch rotors form this Wilwood front GM conversion. Replacement hubs, bearings and BP-10 pads are supplied. The mounting system is specific to the documented disc spindle and requires preparation of the original upright before the brackets can be installed correctly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12278-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.13 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

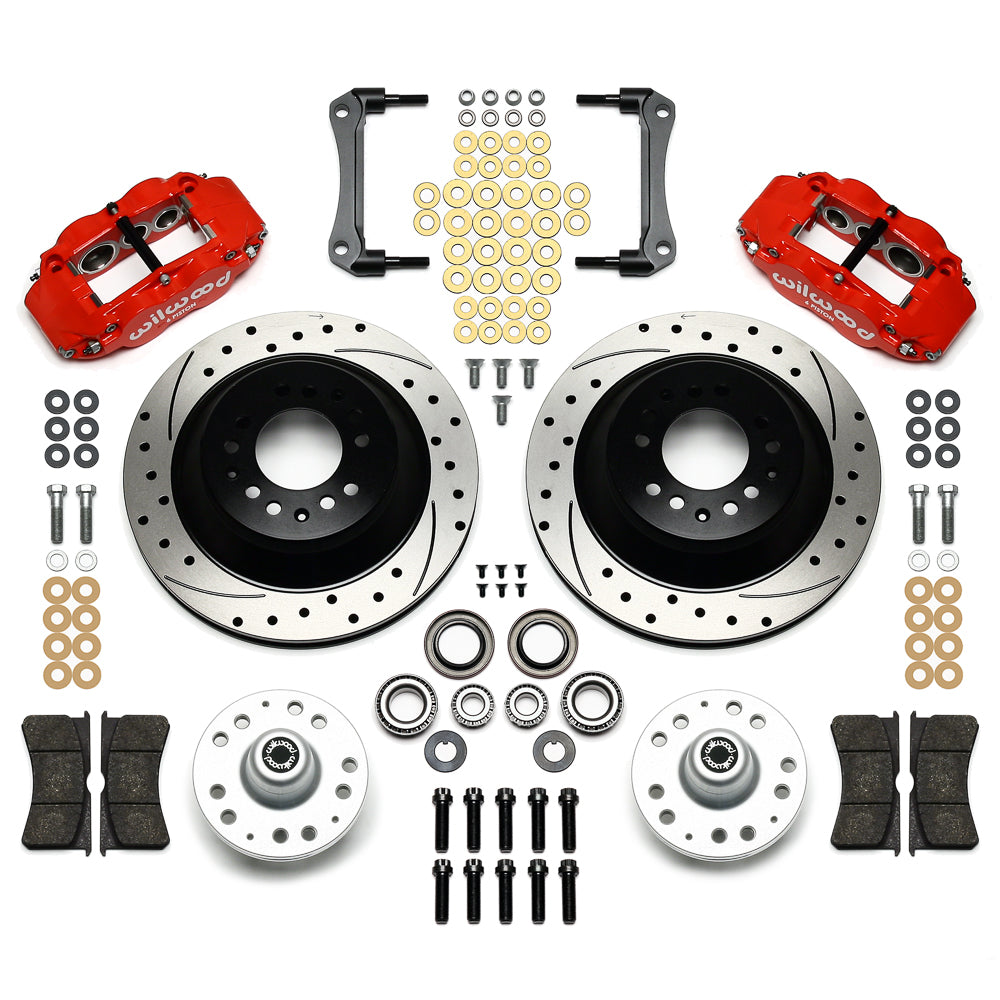

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Check the exact GM model/year and any OE 11-inch rotor-spindle restriction. DS870 details drilling and tapping two holes plus trimming interfering original caliper ears; plan machine-shop work in advance. The new hubs move the wheel mounting position by the published amount, so verify offset and fender room. Hydraulic hoses are additional. Compare the complete wheel profile to the conditional 17-inch clearance drawing and inspect the retained spindle journals before assembly and brake testing.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
