Product details

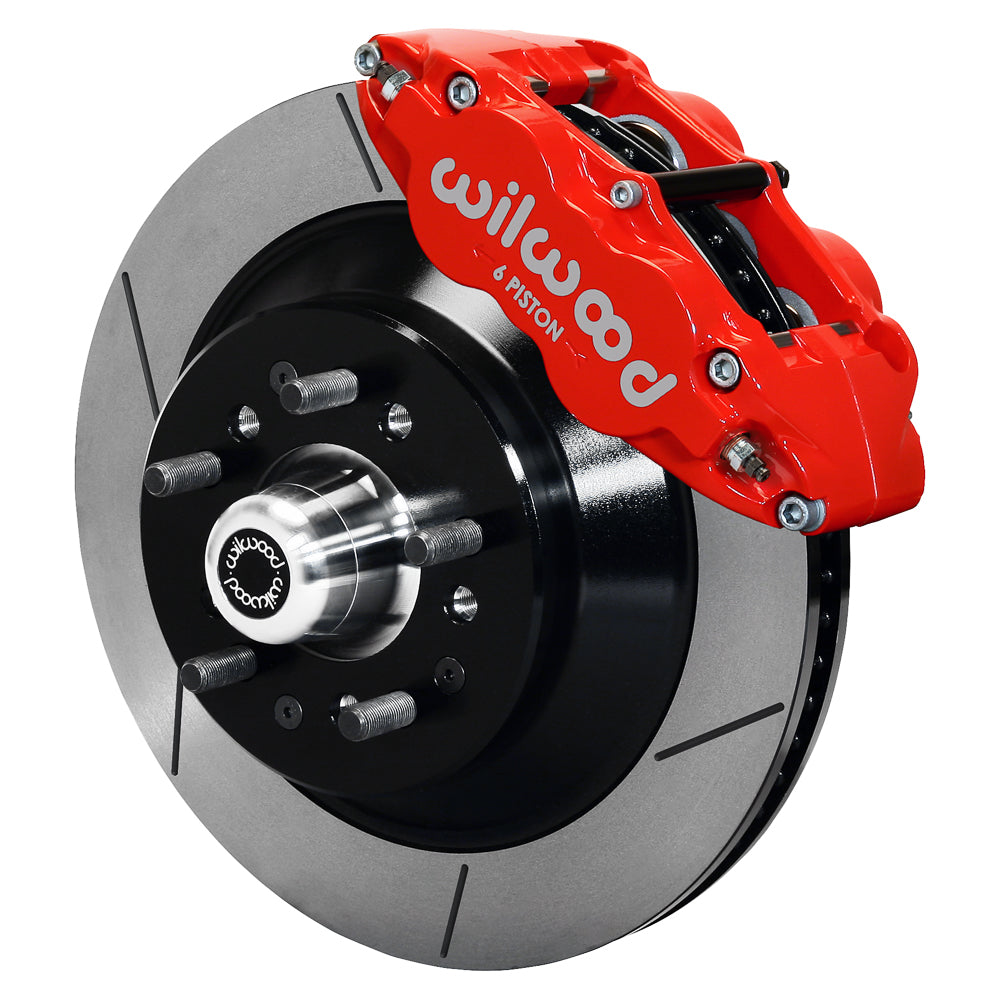

The red GT option of this Wilwood ProSpindle front package uses six-piston Superlite calipers over 12.88-inch slotted rotors. Replacement hubs, bearings and BP-10 pads are included for the documented upright. The conversion must be evaluated as part of the complete modified front suspension and hydraulic system. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-12276-R
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
- Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
- Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted; Iron; Black Electro Coat finish.
- Wheel mounting change from OE: +0.55 inches per side; check wheel offset and fender clearance.
- Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
- Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.
- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
- Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
- Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
Fitment & Compatibility
Check DS869 against the fitted ProSpindle before assembling the new hubs. Its bearing fit, bracket attachment and wheel bolt pattern must agree with the kit. Account for the published wheel-position change when confirming fender space and wheel offset. Appropriate flex lines and chassis fittings are additional. Compare the entire nominal 17-inch-or-larger wheel section with the caliper profile, then verify free rotation, hose movement and alignment before bleeding and bedding.
Wilwood installation documents: Installation instructions.
PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
