Wilwood Front Red Superlite Brake Package, ProSpindle Mounting, 12.88-Inch Drilled/Slotted Rotors and Hubs

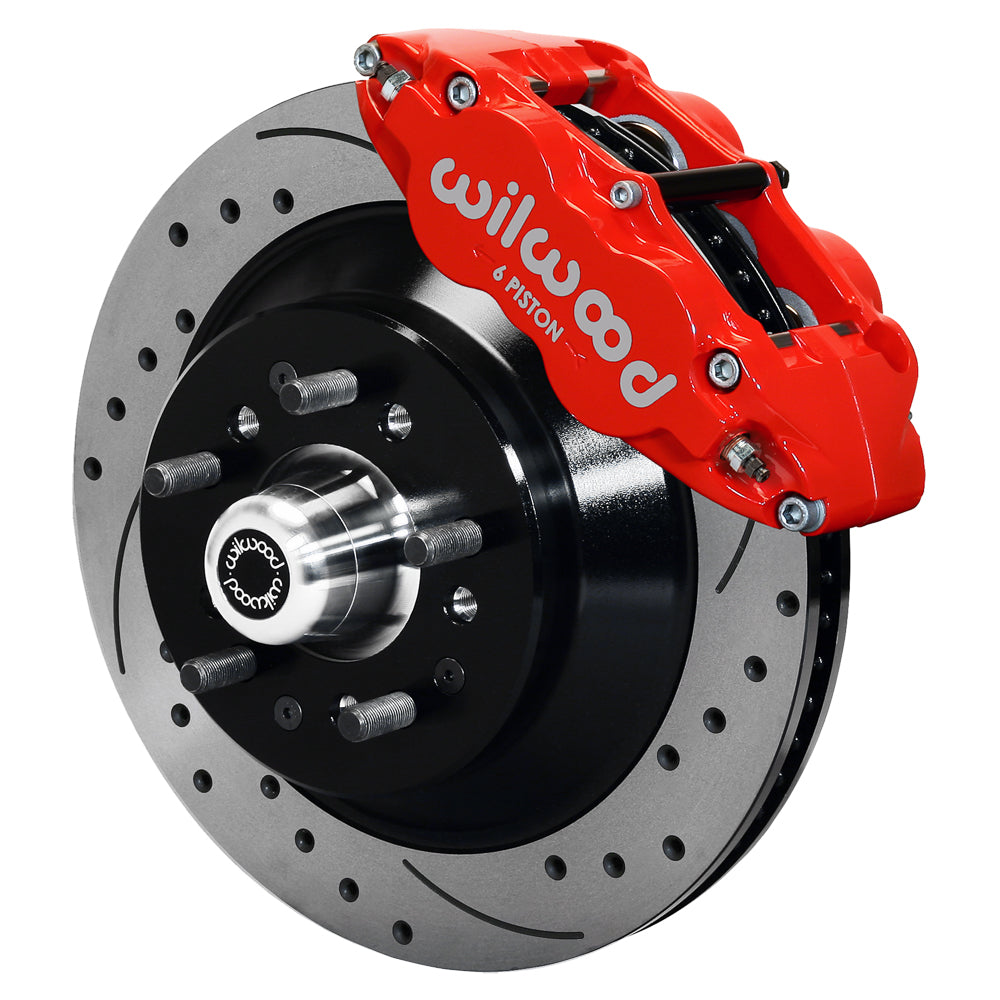

Red six-piston calipers pair with drilled/slotted 12.88-inch rotors in this Wilwood front ProSpindle conversion. New hubs, bearings and BP-10 pads are supplied with the mounting components. Its one-piece rotor package and bracket geometry must match the installed suspension upright. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12276-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Red Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.55 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

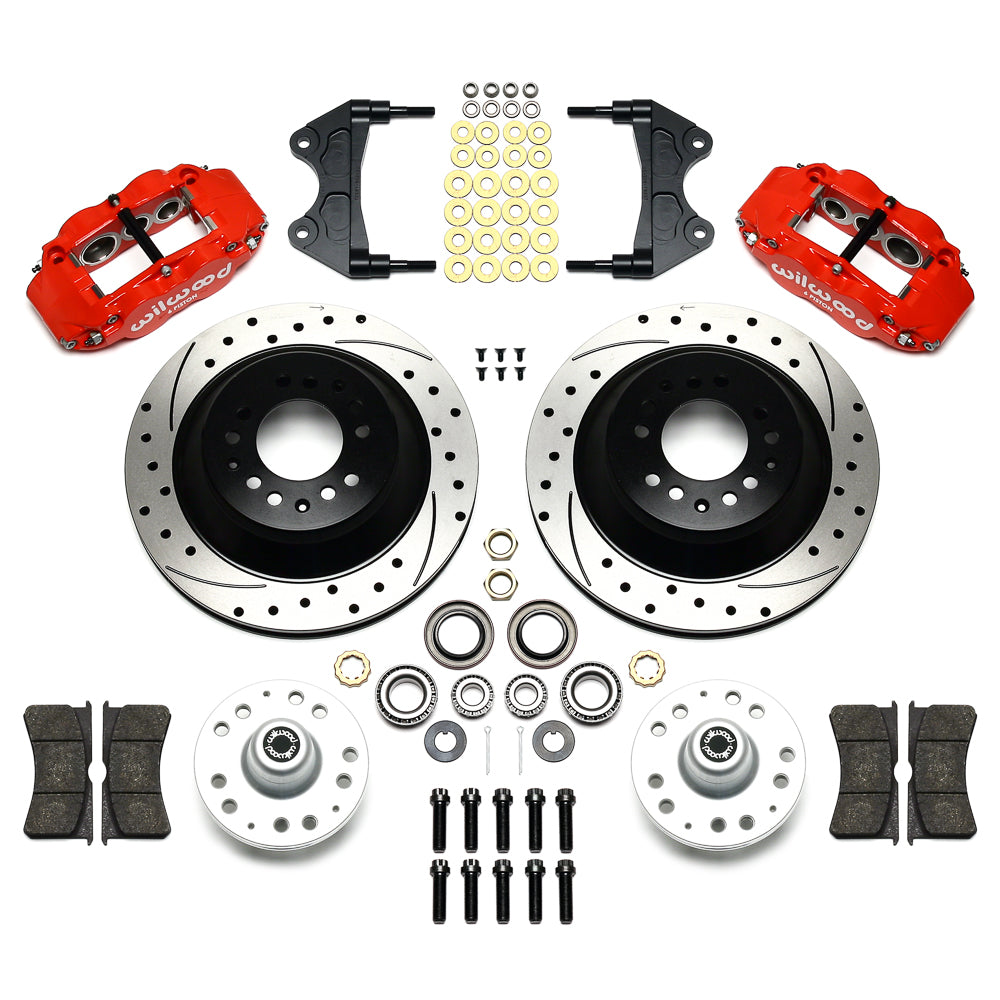

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Inspect the actual ProSpindle against DS869, checking the hub and bearing arrangement before ordering. Verify the wheel bolt circle and the effect of the published outward mounting offset on the chassis. The brake kit does not establish fitment for another spindle solely because it fits the same vehicle. Brake hoses are separate choices and must remain clear at steering lock and full suspension travel. Confirm the conditional 17-inch wheel section, then set caliper alignment and perform the required brake tests.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
