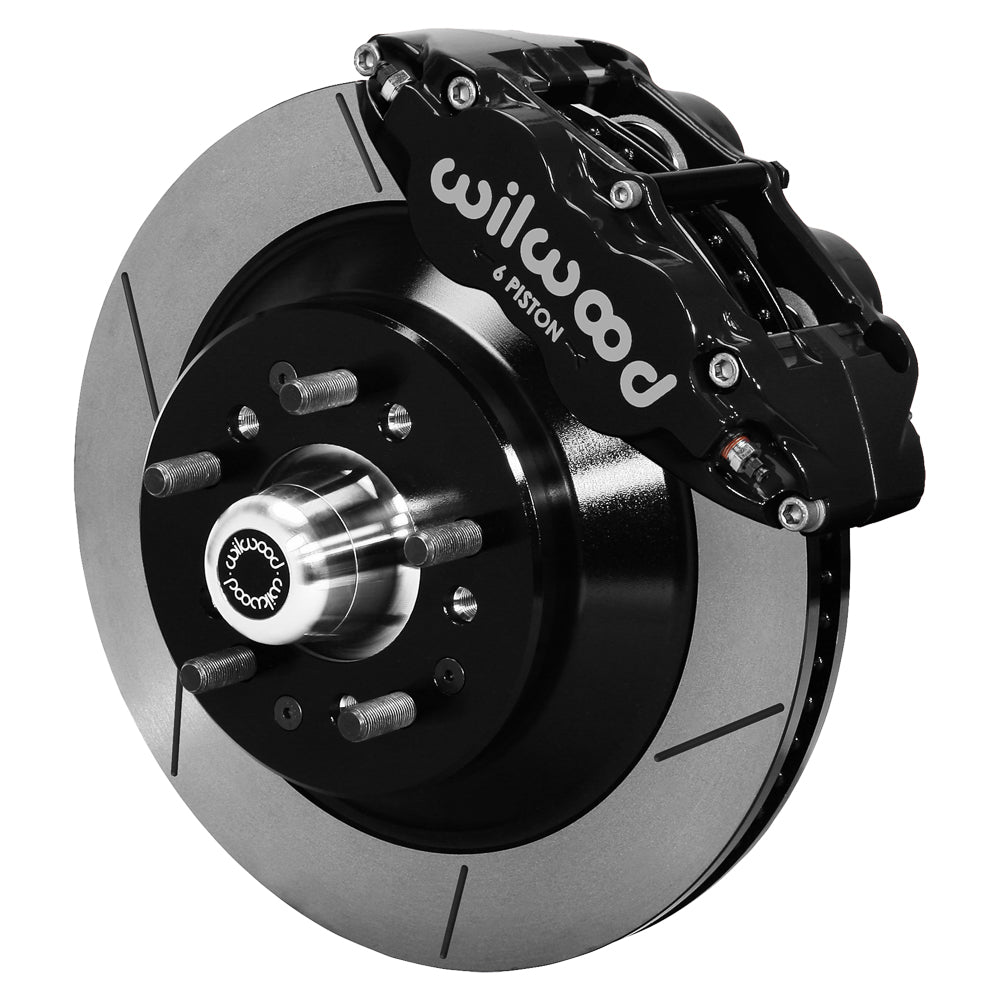

Wilwood Front Superlite Brake Kit for Ford Mustang II/Pinto and Mercury Bobcat (1974–1980), Black Calipers and 12.88-Inch GT Rotors, Five-Lug Hubs

This Wilwood Challenge Series front kit converts the specified Mustang II, Pinto and Bobcat disc-spindle layout to six-piston Superlite calipers and 12.88-inch GT rotors. Black calipers, BP-10 pads and replacement hubs are supplied. The hub package supports five-lug wheels rather than retaining a four-lug wheel pattern. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12275
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
• Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat; radial mounting.
• Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.88-inch diameter × 1.10-inch width; GT Slotted; Iron; Black Electro Coat finish.
• Wheel mounting change from OE: +0.55 inches per side; check wheel offset and fender clearance.
• Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

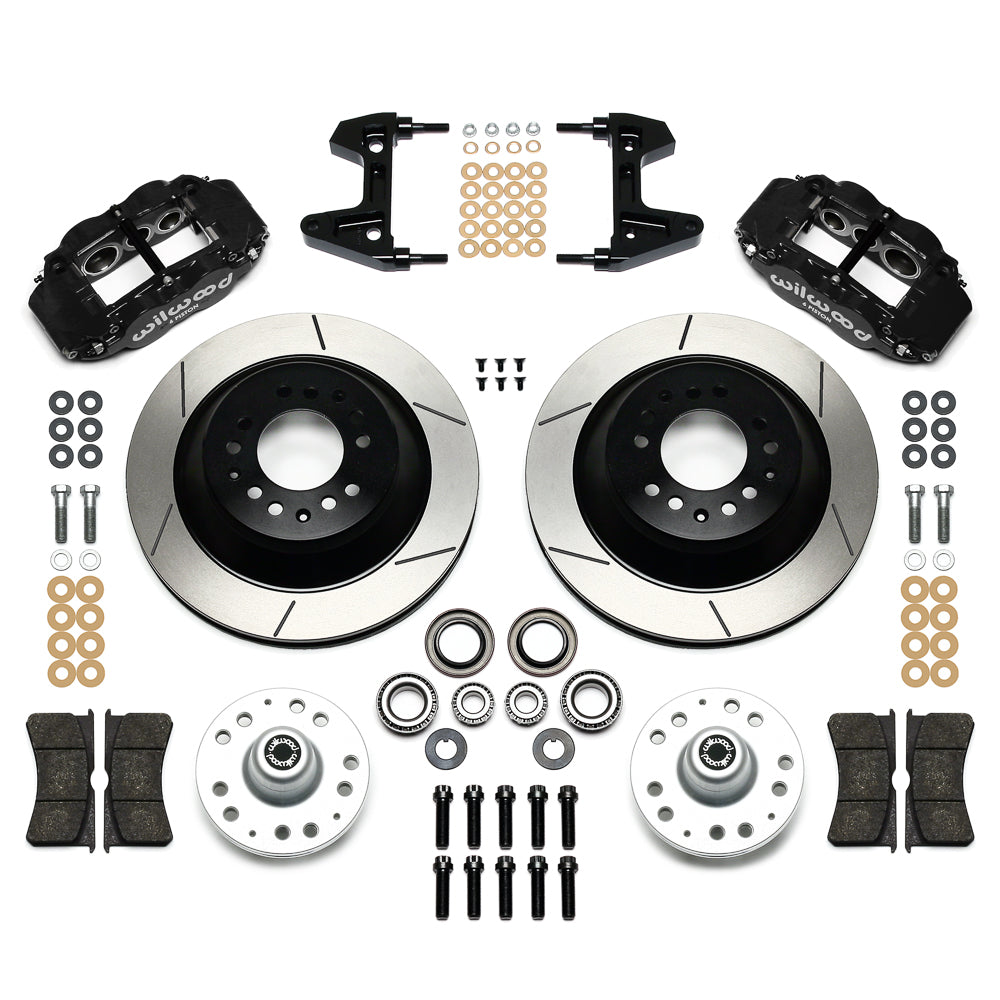

• Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Confirm each model's individual year coverage: Mustang II, Pinto and Bobcat do not share the same complete production span. DS868 specifies the matching disc-spindle configuration and only 5 × 4.50 or 5 × 4.75 wheel patterns. The outward hub-offset change must suit the fenders and wheel offset. Check any aftermarket drop-spindle variation directly. Flex hoses are separate, and the conditional 17-inch wheel minimum requires the full caliper profile, including clearance behind the spokes.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
