Product details

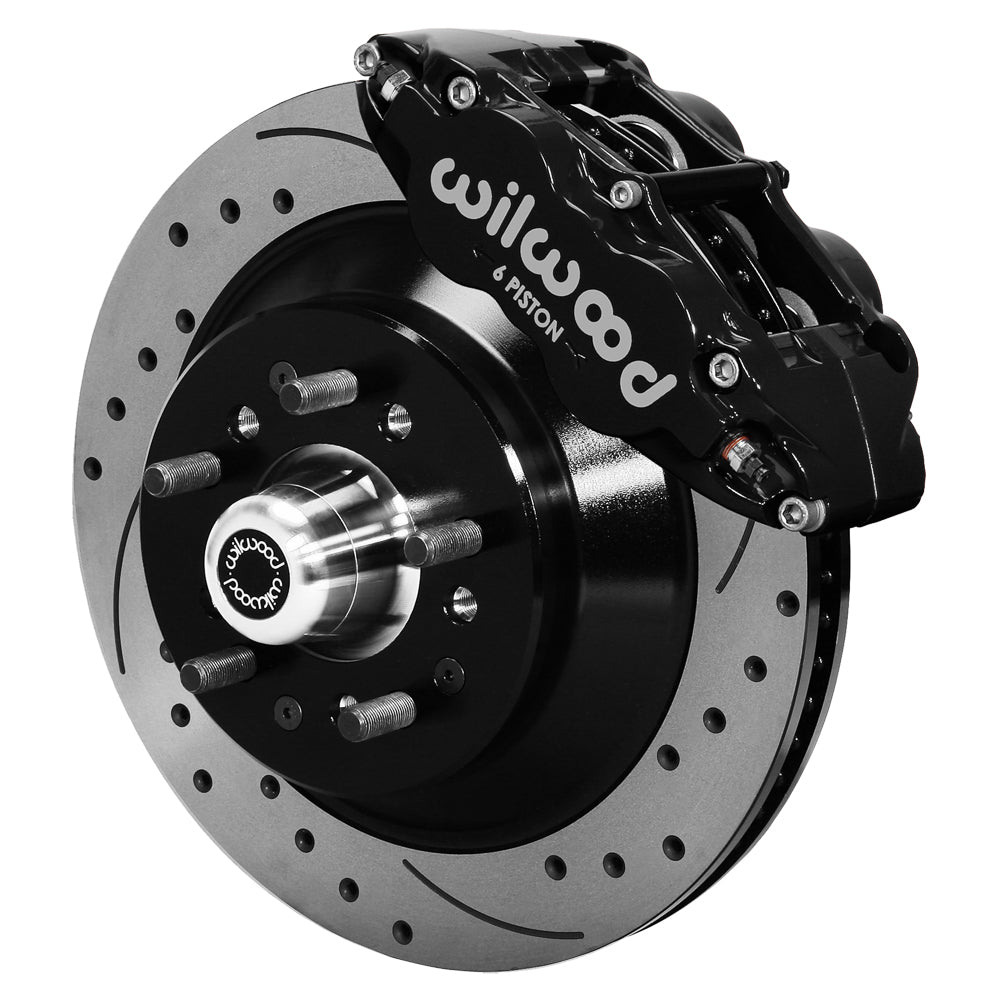

Drilled/slotted one-piece rotors and black Superlite 6R calipers distinguish this Wilwood Magnum Force front package. The rotors measure 12.88 inches across and mount with replacement hubs and bearings. Included BP-10 pads and brackets complete the six-piston conversion for the specified aftermarket upright. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 140-12272-D
- Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
- Calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Black Powder Coat; radial mounting.
- Piston bores: 1.62, 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
- Rotors: 12.88-inch diameter × 1.10-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
- Replacement hubs: Hub - Hat Mount; Aluminum; Bare. Bearings and hub hardware are specified in the installation instructions.
- Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

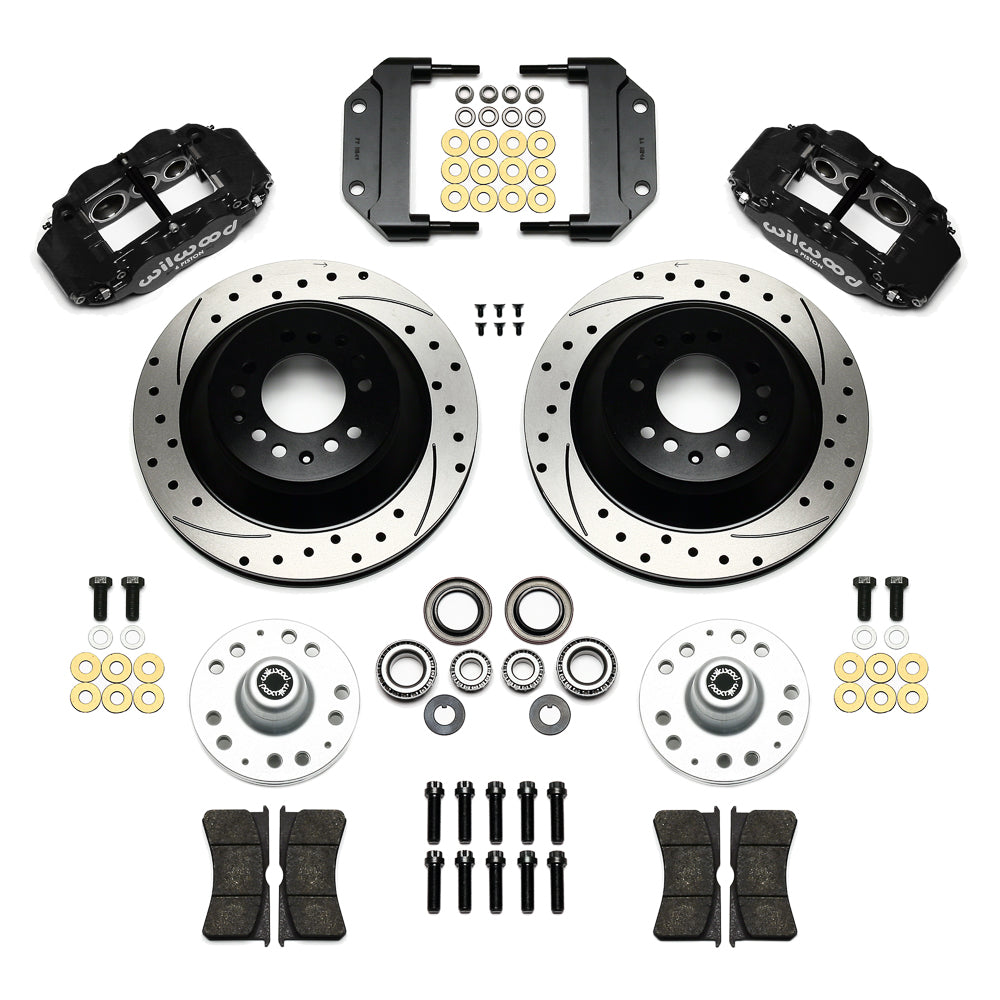

- Included: paired calipers, pads, rotors, brackets and assembly hardware, replacement hubs and bearings.
- Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
- Conditional minimum wheel diameter: 17 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.
Fitment & Compatibility
Verify the actual drop spindle against DS866, including its hub journals and bracket points. A car's donor model does not identify which Magnum Force or other aftermarket upright is fitted. Match the new hub's lug pattern to the wheel and establish caliper alignment with the supplied shims. Appropriate hoses and fittings are separate. Check the conditional 17-inch wheel envelope behind the spokes as well as through the barrel before completing hydraulic and steering-clearance tests.
Wilwood installation documents: Installation instructions.
PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
