Wilwood Rear SRP Brake Kit, Black D154 Calipers for Staggered Shocks, Big Ford New Style 2.50-Inch Axle Offset; Lincoln Town Car 1990 With Confirmed Axle

Black D154 calipers and drilled/slotted rotors form this Wilwood staggered-shock rear conversion. The left service caliper sits ahead of the axle, while the right sits behind it to suit the specified shock arrangement. Internal parking shoes and 12.19-inch vented rotors match the Big Ford New Style housing at 2.50-inch offset. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12236-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford New Style. Axle-flange offset: 2.50 inches.

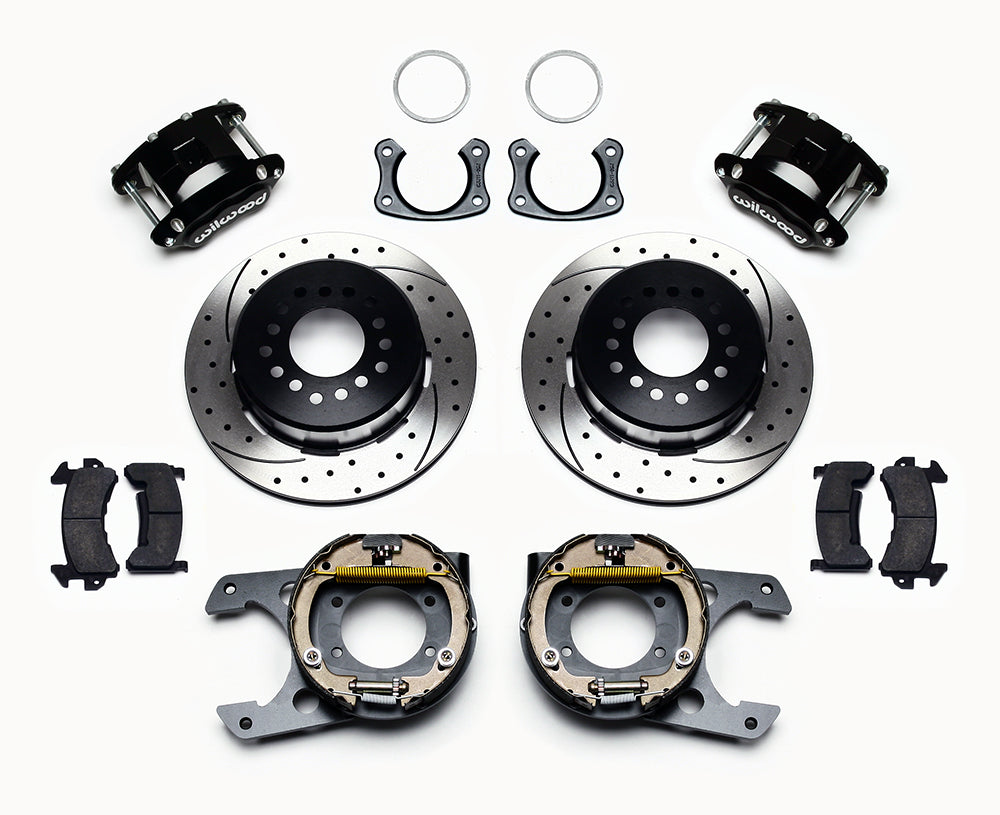

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Read DS863 with the actual shock arrangement visible. The left bracket locates its service caliper ahead of the axle, and the right locates its caliper behind; substituting two brackets of another clocking can cause interference. Verify the New Style housing, bearing retention, offset and rotor register, then confirm the 1990 Lincoln Town Car application with Wilwood. Check the hat's flange and stud clearance. Parking-cable connections are additional and must pull and release the shoe assemblies without tight bends or uncontrolled sheath movement. Select hydraulic hoses for full axle travel separately. A wheel must match the conditional 16-inch caliper section in full; a 15-inch wheel cannot be accepted from diameter alone.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
