Wilwood Rear Black D154 Parking Brake Kit for Staggered Shocks, Big Ford New Style 2.50-Inch Offset; Conditional Lincoln Town Car (1990)

This black Wilwood rear conversion is configured for a Big Ford New Style axle with staggered shock mounts. The right caliper mounts behind the axle and the left caliper ahead, with plain 12.19-inch rotors and internal parking shoes. The required offset is 2.50 inches, and the 1990 Town Car application is conditional on the matching measured assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12236
• Type: D154 Rear Parking Brake Kit

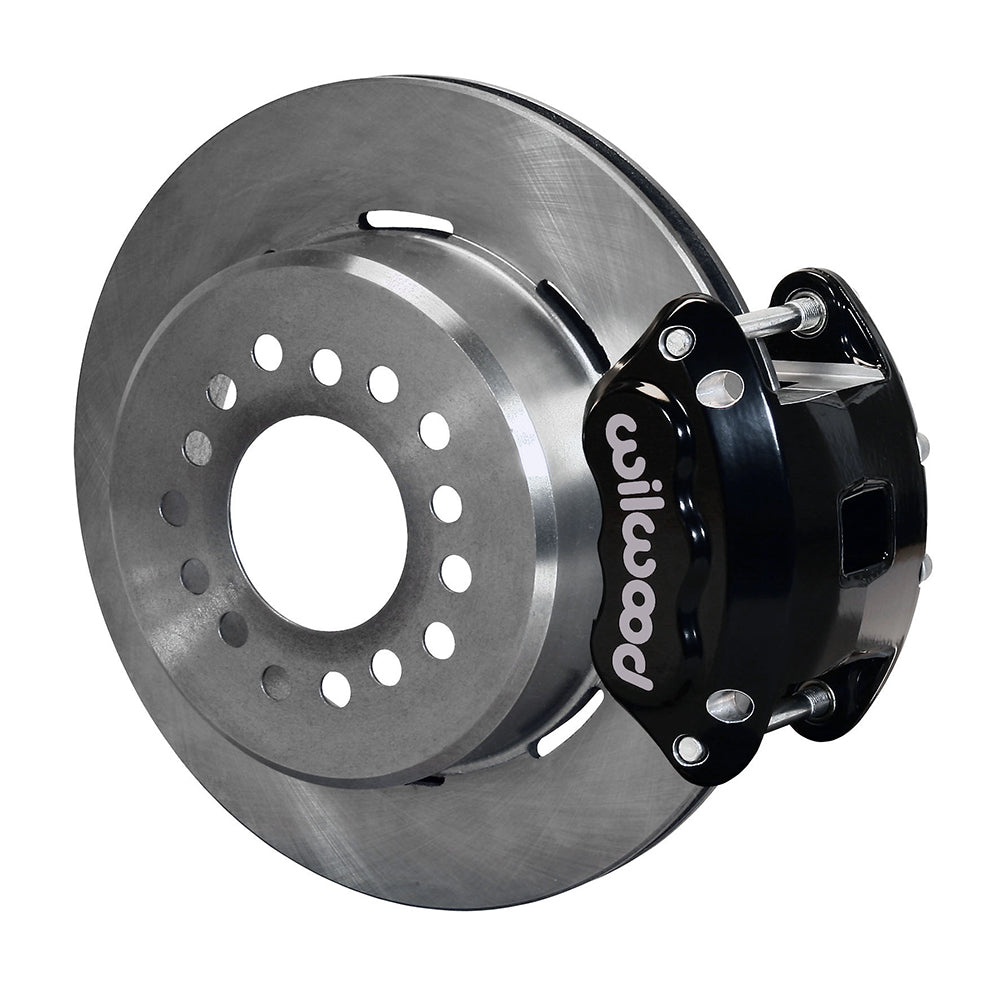

• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; Plain Face; Iron; Plain finish.
• Rear housing end: Big Ford New Style. Axle-flange offset: 2.50 inches.

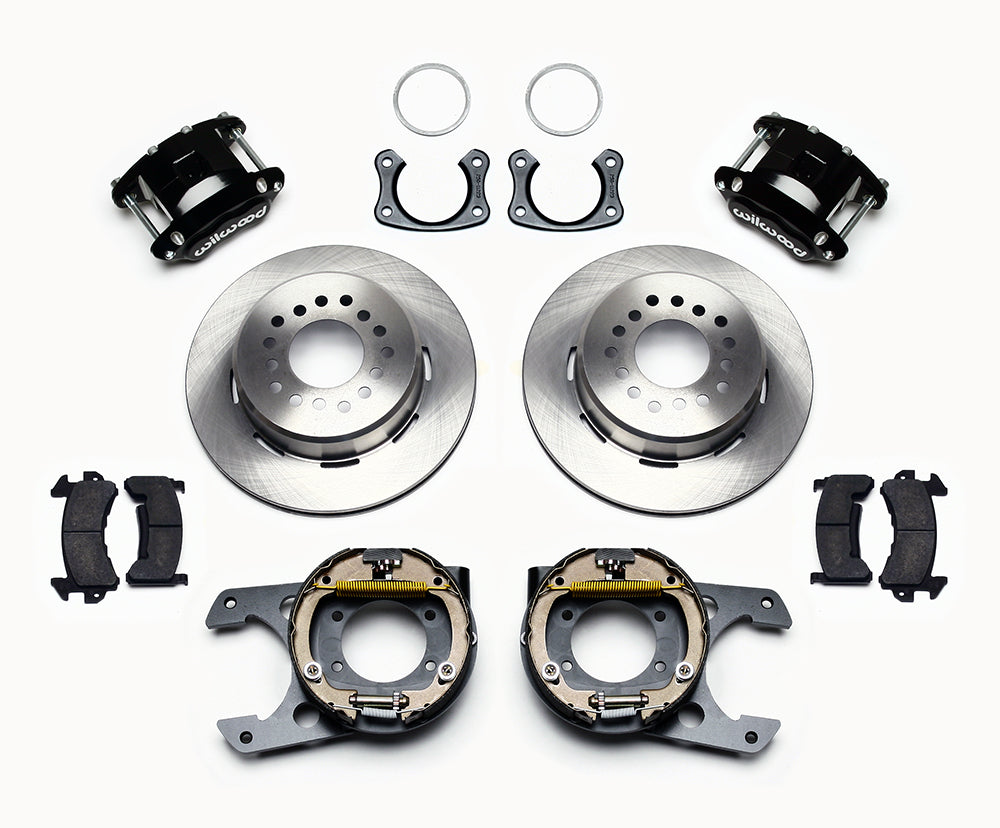

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Inspect both shock locations before selecting this staggered conversion. DS863 places the right hydraulic caliper behind the axle and the left ahead of it; the bracket set must be used in that arrangement. Measure the New Style housing flange, bearing and offset and obtain Wilwood confirmation of the listed 1990 Lincoln Town Car application. Check the flange envelope and wheel studs before fitting the rotor hats. The cable route must suit the two different caliper-side locations while operating the separate parking shoes smoothly. Select cable hardware and hydraulic lines independently, then verify shoe adjustment and full release. Compare each wheel to the conditional 16-inch profile; an optional 15-inch design needs the complete template to fit.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
