Wilwood Rear SRP Brake Conversion, Black D154 Calipers Mounted Ahead of Axle, Big Ford New Style 2.50-Inch Axle Offset; Lincoln Town Car 1990 With Matching Housing

Black D154 calipers mount in front of the rear axle in this Wilwood SRP parking-brake conversion. The drilled/slotted 12.19-inch rotor package includes internal shoes and is specific to Big Ford New Style geometry at 2.50-inch offset. The Town Car entry is conditional on that physical axle arrangement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12235-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford New Style. Axle-flange offset: 2.50 inches.

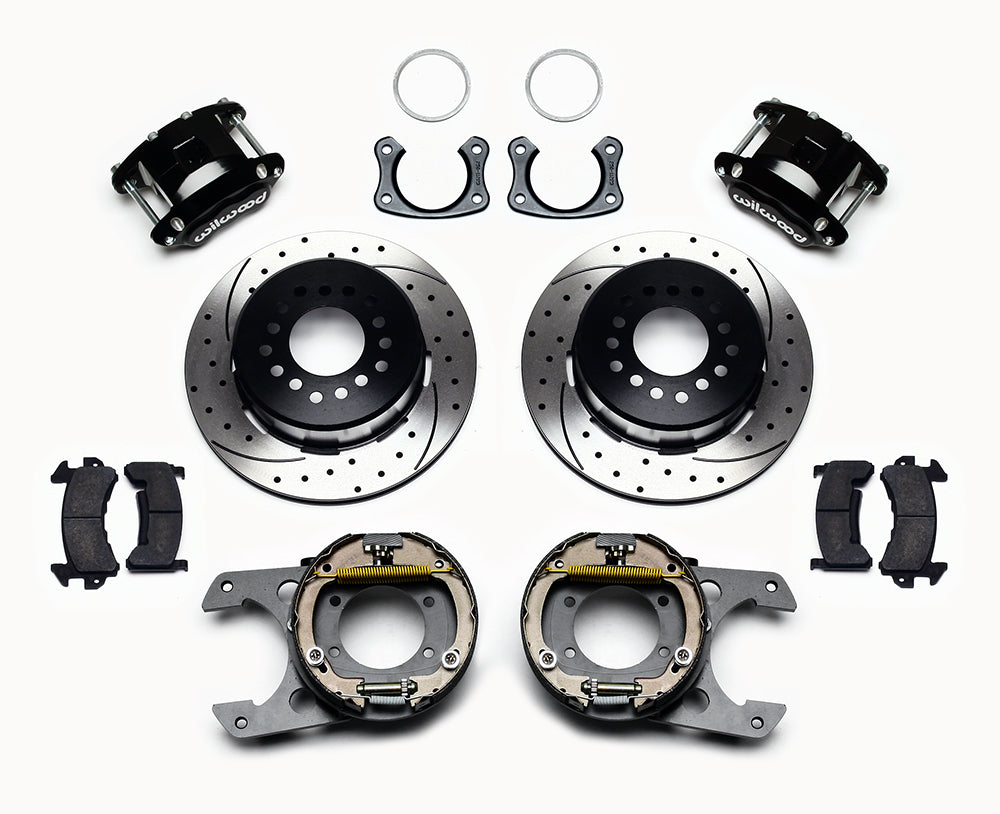

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Both service calipers must sit ahead of the rear axle, as specified by the bracket arrangement in DS862. Confirm that the shock and surrounding suspension leave room for those positions before taking the housing, bearing and offset measurements. The 1990 Lincoln Town Car application requires Wilwood confirmation for the actual rear assembly. Inspect wheel studs and the rotor-hat fit over the axle flange before assembly. Plan the parking cable's pull and release path at each bracket; do not route it tightly around moving suspension parts. The hydraulic hoses are a separate installation choice and must remain free through axle travel. Finally, measure the wheel against the conditional 16-inch envelope and individually assess any proposed 15-inch design.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
