Wilwood Rear D154/SRP Kit, Black Calipers, Big Ford New Style 2.36-Inch Axle Offset; Lincoln Town Car (1990) With Confirmed Axle

This Wilwood rear package pairs drilled/slotted SRP rotors with black D154 twin-piston calipers on a Big Ford New Style housing end. The 12.19-inch rings have an internal parking-shoe arrangement. A measured 2.36-inch axle offset is essential, including for the conditional 1990 Lincoln Town Car application. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Its product range serves motorsport, street-performance, and specialized applications, with individual components selected to match the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 140-12216-D
• Type: D154 Rear Parking Brake Kit
• Calipers: D154; 2 pistons per caliper; Black Powder Coat; floating mounting.
• Piston bores: 1.12, 1.12 inches; Stainless pistons. Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat finish.
• Rear housing end: Big Ford New Style. Axle-flange offset: 2.36 inches.

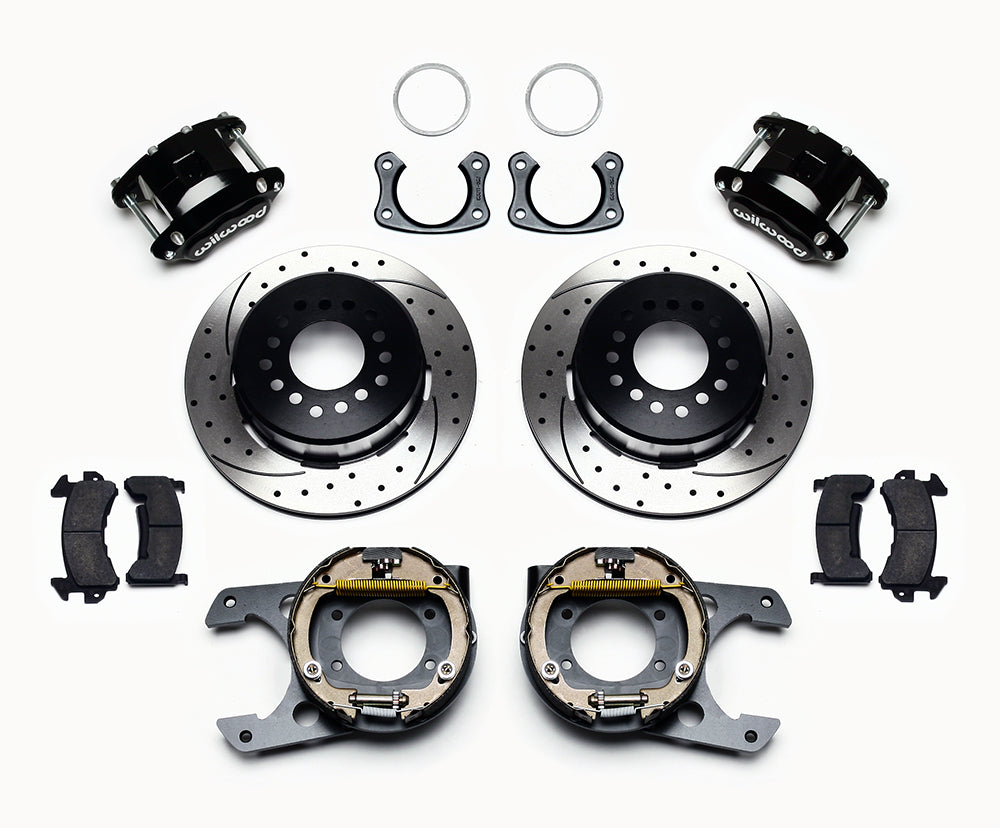

• Included: paired hydraulic calipers, pads, rotor/hat assemblies, internal parking-shoe assemblies and mounting components.
• Hydraulic flex lines are separate. Master cylinder, booster and spindles are not included; retain or select suitable matching components.
• Conditional minimum wheel diameter: 16 inches. Verify the complete clearance drawing for barrel and spoke offset before purchase.

Fitment & Compatibility

Compare the fitted rear end to the New Style flange illustration in DS861. The bearing-retention arrangement must agree with the brackets, and the axle register and offset must center the drilled/slotted rotor correctly. Confirm the 1990 Lincoln Town Car application with Wilwood after taking those measurements; do not infer an original-axle fit. Inspect the wheel studs and check that the rotor hat seats fully against the flange. Provide a separate parking-cable system with a restrained, low-friction route and enough release travel, as well as compatible hydraulic hoses. Adjust the shoes inside the hat and inspect shock clearance. A wheel must clear the full conditional 16-inch profile; some 15-inch designs may fit only when measured against it.

Check the individual year, model, submodel and equipment conditions in the fitment table below before ordering.

Wilwood installation documents: Installation instructions; Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle, axle or spindle details and wheel measurements for fitment help.
